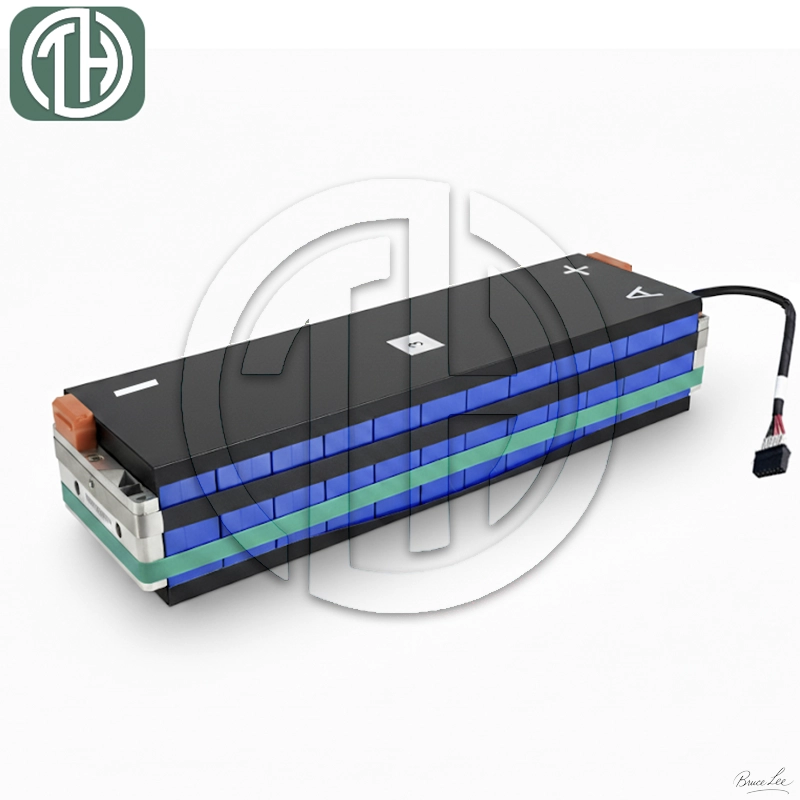

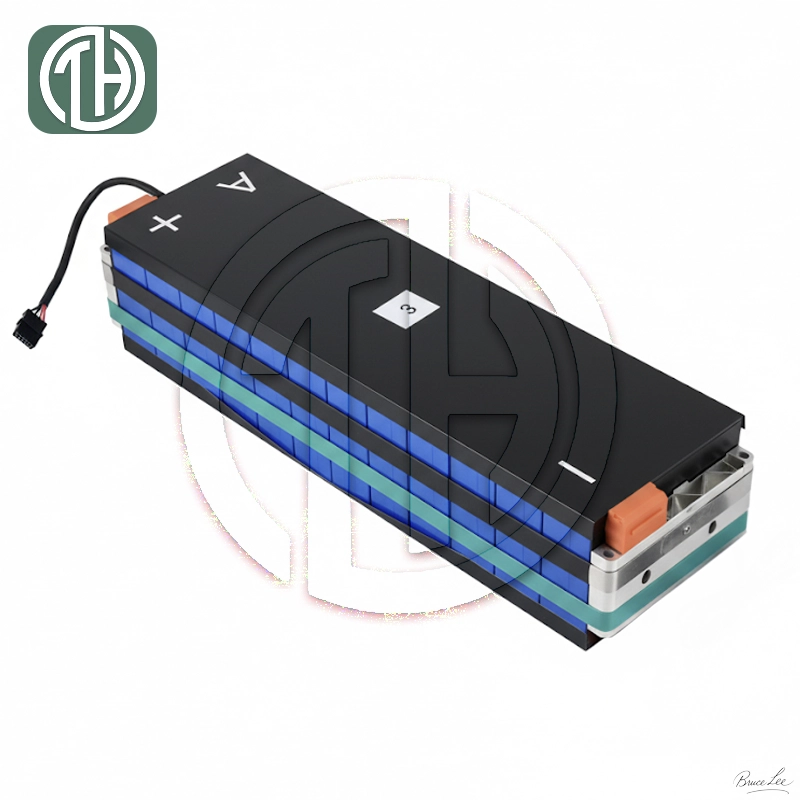

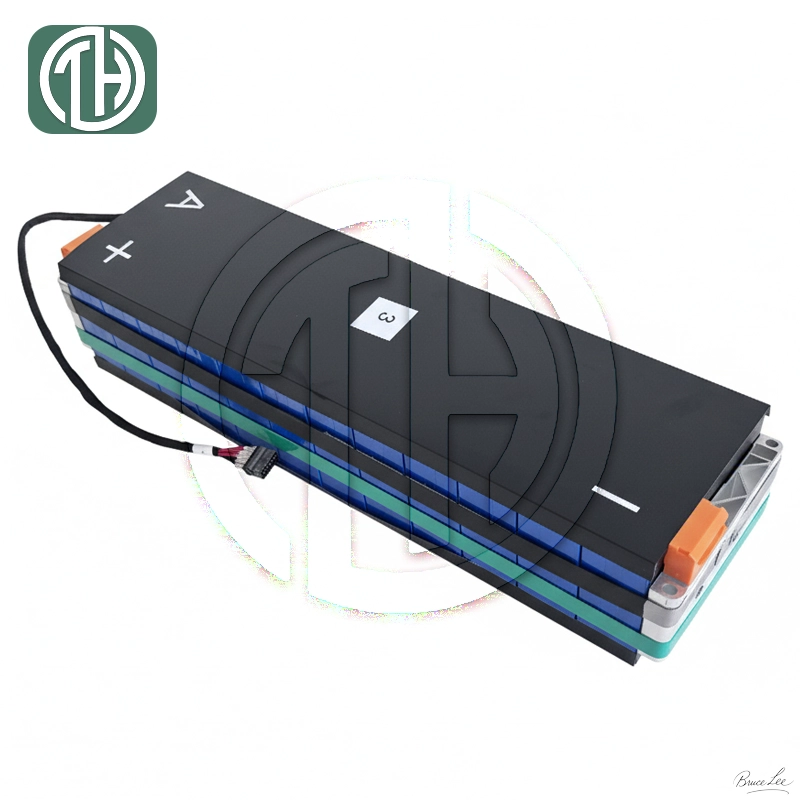

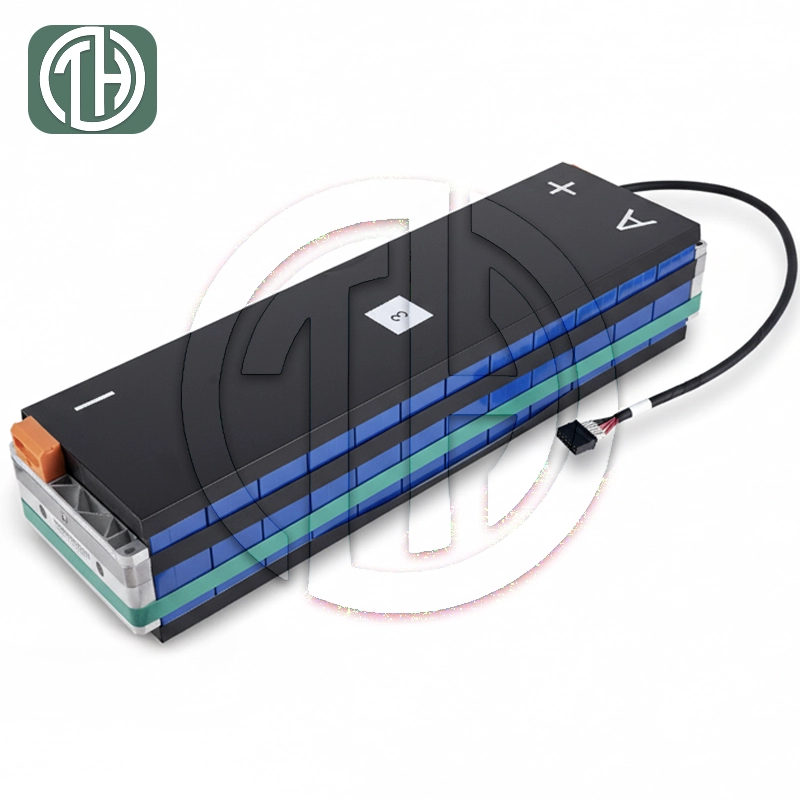

1P12S 50Ah module delivers efficient power in a compact form.
12 cells in series ensure consistent voltage and output stability.
Sodium-ion cells provide excellent thermal stability and safety.
Lithium- and cobalt-free, supporting sustainable energy solutions.
| Item | Parameter | Remark |
|---|---|---|
| Rated Capacity | 50Ah | - |
| Battery Cell Voltage Range | 2.5V ~ 3.0V | Cell state upon shipment |
| Operating Voltage | 24V ~ 38.4V | 12 cells in series |
| Nominal Voltage | 36V | - |
| Starter Internal Resistance (AC 1kHz) | ≤0.5mΩ(Single Cell) | At 50% SOC |
| Discharge Current | 50A | Continuous @25°C±5°C |
| Max Discharge Current | 400A | 8C |
| Operating Temperature | Charge: 0~55°C Discharge: 0~55°C | - |
| Cycle Life | ≥6000 cycles | @80% DOD |
| Battery Weight | Approx. 24kg | - |

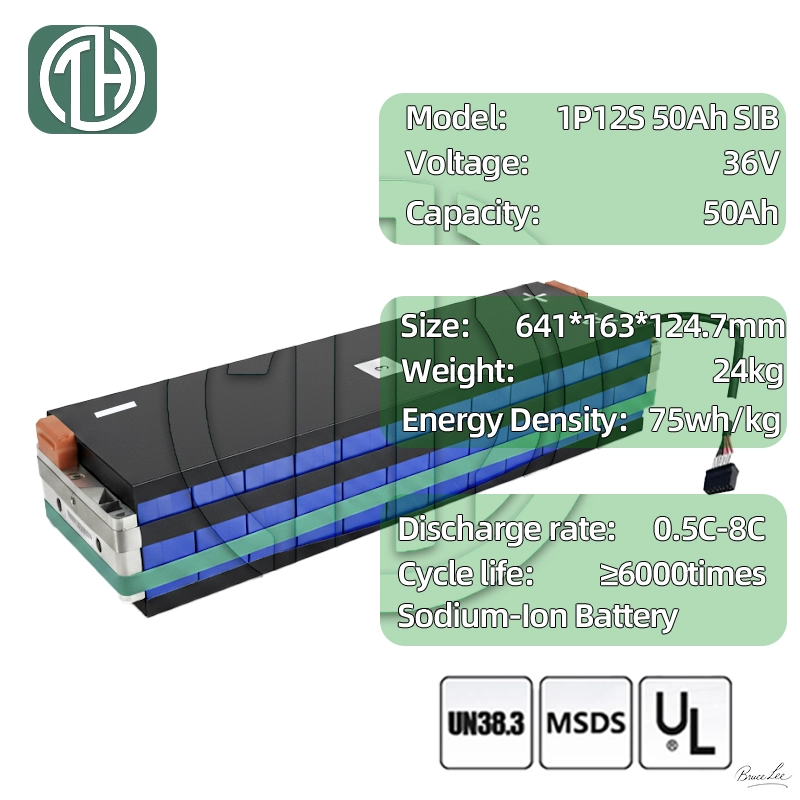

Shows the physical dimensions and structural design of the 1P12S 50Ah SIB battery module.
Due to its unique properties, our SIB battery cell is widely used in fields requiring ultra-high power and long life:
The 1P12S 50Ah SIB module delivers reliable power for off-grid and solar systems.
Efficient and durable energy storage for homes and businesses.

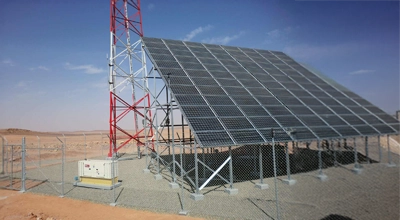

Dependable energy for continuous telecom operations.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
