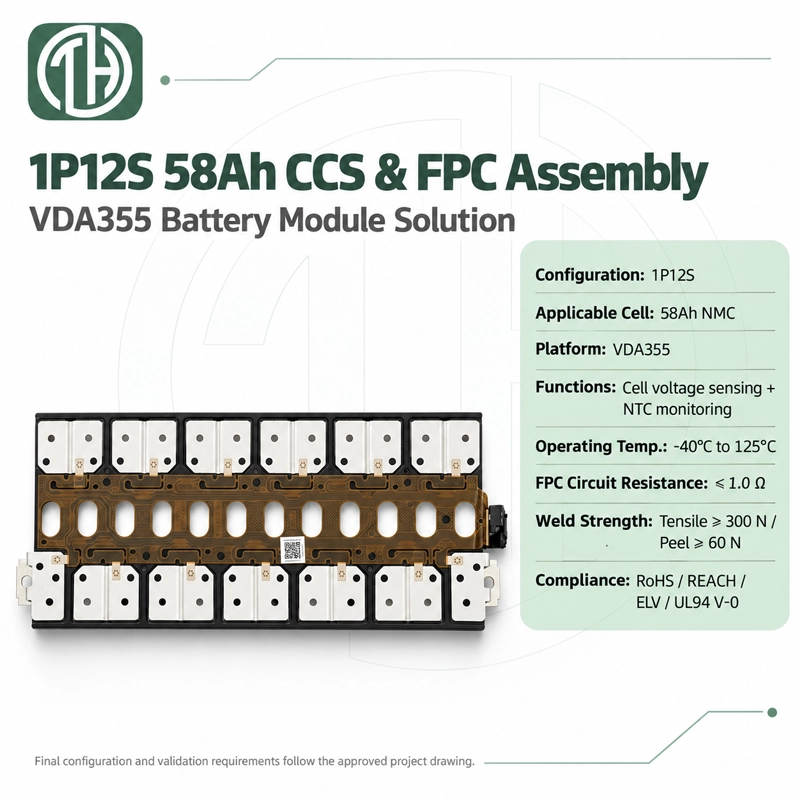

Developed for 1P12S 58Ah NMC battery modules, with a structure matched to the VDA355 module platform.

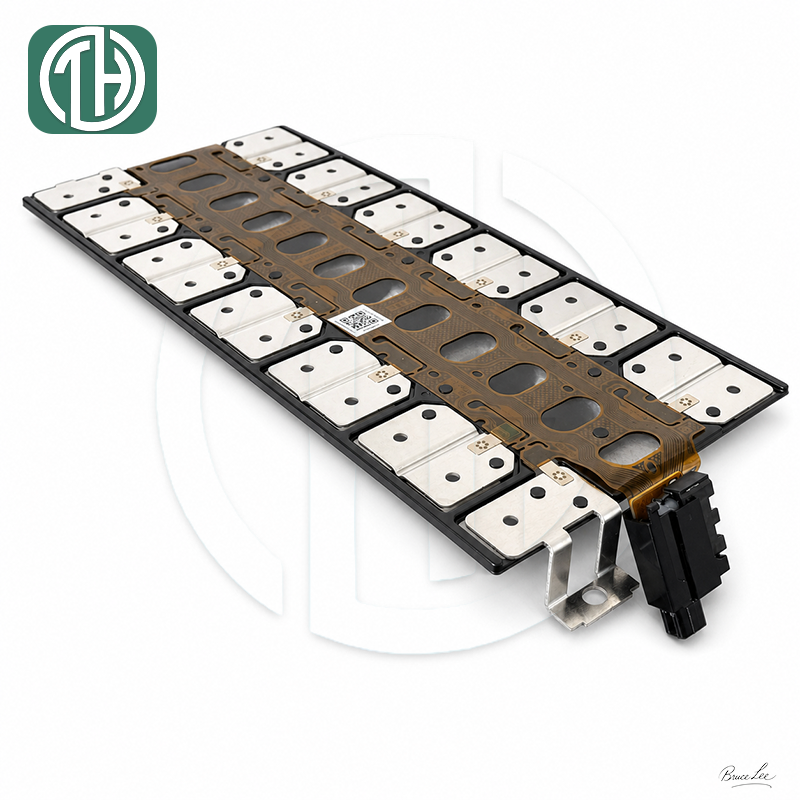

Busbars, FPC sensing circuits, insulation components, and connection interfaces are integrated into one compact assembly.

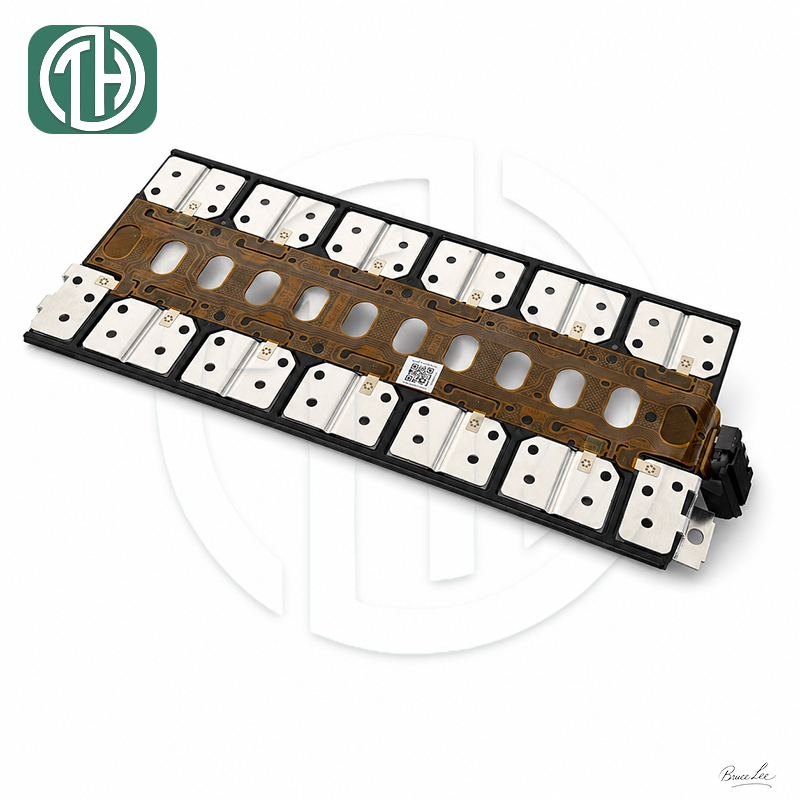

The integrated FPC supports individual cell-voltage sensing and NTC temperature monitoring for connection to the BMS.

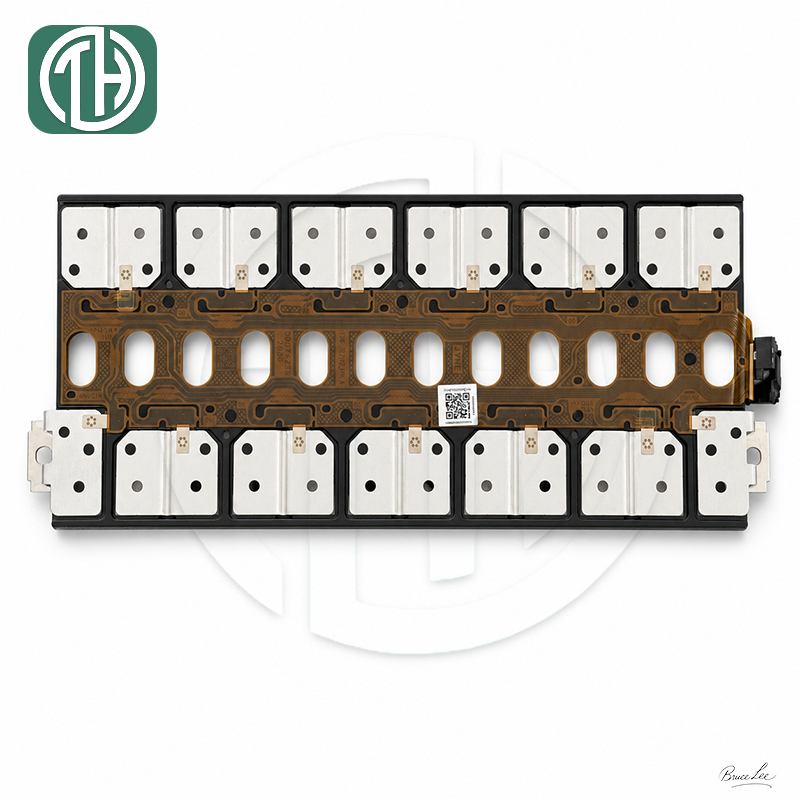

FPC routing, busbar arrangement, output terminals, connectors, and mounting details can be customized for the module design.
| Item | Parameter | Test Condition / Note |
|---|---|---|
| Product Configuration | ||
| Product Type | CCS & FPC assembly | Cell Contact System for battery modules |
| Compatible Module | 1P12S 58Ah NMC module | Designed for the VDA355 module platform |
| Integrated Components | FPC, insulation carrier, busbars, output terminals and NTC sensors | Final component configuration follows the approved drawing |
| Operating Temperature | -40°C to 125°C | CCS assembly operating-temperature requirement |
| Key Drawing Dimensions | 354.96 ± 0.5 mm; 341.35 ± 0.5 mm; 110.6 ± 0.4 mm; 29.83 ± 0.2 mm | Critical dimensions identified in the CCS drawing |
| Electrical and Insulation Requirements | ||
| Busbar-to-CCS Substrate Insulation | 1000 VDC / 60 s, ≥500 MΩ | Insulation-resistance test |
| Busbar-to-CCS Substrate Dielectric Withstand | 3800 VDC / 60 s, leakage current ≤1 mA | Process and outgoing inspection requirement |
| Adjacent Busbar Insulation | 500 VDC / 60 s, ≥500 MΩ | Between adjacent busbar sections |
| Adjacent Busbar Dielectric Withstand | 800 VDC / 30 s, leakage current ≤1 mA | Between adjacent busbar sections |
| Adjacent Pin Insulation | 500 VDC / 2 s, ≥500 MΩ | 100% inspection |
| NTC Circuit Insulation | 500 VDC / 60 s, ≥500 MΩ | Between the NTC circuit and adjacent corresponding busbar |
| NTC Circuit Dielectric Withstand | 800 VDC / 30 s, leakage current ≤1 mA | Between the NTC circuit and adjacent corresponding busbar |
| FPC Conductor-to-Surface Insulation | 1000 VDC / 60 s, ≥500 MΩ | Between FPC conductors and the upper or lower surface |
| FPC Conductor-to-Surface Dielectric Withstand | 2700 VDC / 60 s, leakage current ≤1 mA | Between FPC conductors and the upper or lower surface |
| FPC Inter-Circuit Insulation | 500 VDC / 60 s, ≥500 MΩ | Between independent FPC circuits |
| FPC Inter-Circuit Dielectric Withstand | 1000 VDC / 60 s, leakage current ≤1 mA | Between independent FPC circuits |
| FPC Circuit Resistance | ≤1.0 Ω | Per circuit, excluding the NTC circuit |
| Terminal-to-Busbar Weld Resistance | ≤60 µΩ | 100% inspection |
| Mechanical and Quality Requirements | ||
| Weld Tensile Strength | ≥300 N | Nickel terminal-to-busbar weld |
| Weld Peel Strength | ≥60 N | Nickel terminal-to-busbar weld |
| Thermal-Staking Peel Strength | ≥50 N | Busbar or output-terminal mounting structure |
| Continuity Inspection | 100% tested | No open circuit or unintended short circuit between adjacent pins |
| NTC Consistency | According to the approved FPC specification | Resistance consistency between NTC sensors within the same CCS |
| Restricted Substances | RoHS, REACH and ELV requirements | Applicable to all constituent components |
| Flame-Retardant Requirement | UL94 V-0 | Applicable component materials shall meet the specified requirement |
The values above describe the documented 1P12S 58Ah VDA355 CCS and FPC reference design. Final dimensions, FPC routing, busbar configuration, connector interface, NTC arrangement, materials, and validation requirements are subject to the approved drawing and project-specific technical agreement.

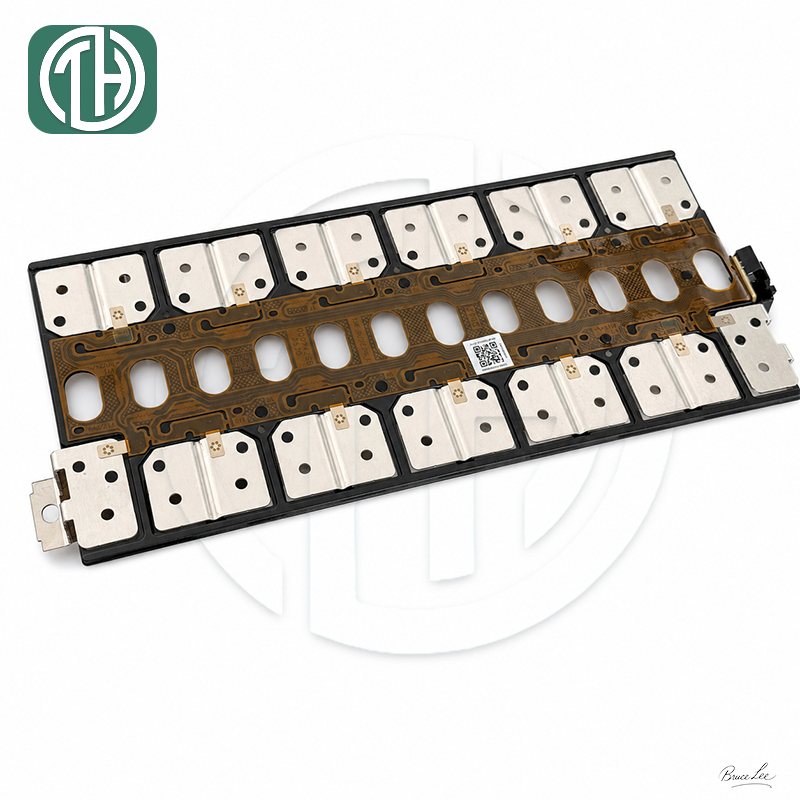

The 1P12S 58Ah VDA355 CCS & FPC assembly integrates the busbars, flexible printed circuit, voltage-sensing points, NTC temperature-monitoring circuits, and connector interface into a compact module-level solution.

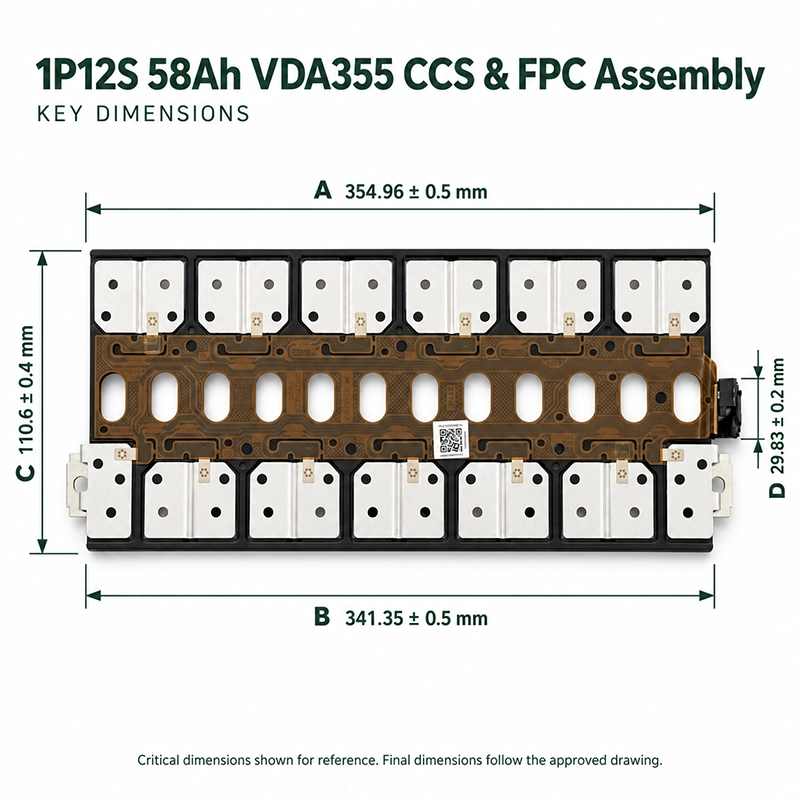

Reference dimensions: A — 354.96 ± 0.5 mm, B — 341.35 ± 0.5 mm, C — 110.6 ± 0.4 mm, and D — 29.83 ± 0.2 mm. The letters correspond to the dimension callouts shown in the image. Final dimensions, tolerances, connector position, and mechanical interfaces are subject to the approved project drawing.
Designed for 1P12S 58Ah VDA355 NMC battery modules, this CCS & FPC assembly integrates cell interconnection, voltage sensing, and NTC temperature monitoring for compact and scalable battery-system applications.
Suitable for VDA355 NMC modules used in electric passenger-vehicle traction battery packs requiring integrated cell connection and signal collection.
Supports modular battery-system integration for electric buses, trucks, and other commercial vehicles based on compatible VDA355 modules.
Applicable to electric forklifts and warehouse equipment requiring compact module wiring, voltage sensing, and temperature monitoring.
Provides an integrated connection and sensing solution for compatible battery modules used in construction and special-purpose electric vehicles.
Can be customized for compatible VDA355 module layouts used in electric propulsion and auxiliary marine battery systems.
Suitable for compatible modular battery packs used in golf carts, utility vehicles, and other low-speed electric transportation.
Materials and components used in the 1P12S 58Ah CCS & FPC assembly are specified to meet applicable environmental, material-safety, and flame-retardancy requirements.
*RoHS, REACH, and ELV refer to material and environmental compliance requirements. UL94 V-0 refers to the specified flame-retardancy rating of applicable insulating and polymer materials, rather than UL certification of the complete CCS & FPC assembly. Final compliance documentation, material declarations, and test requirements are confirmed according to the approved project specification.
