2P21S configuration with 80Ah ensures stable, long-lasting energy.
21 cells in series, 2.3V each, ideal for EV and ESS use.
LTO chemistry enables ultra-fast charging and high current output.
Lithium Titanate Oxide prevents overheating, short circuits, and fire risks.
| Item | Parameter | Remark |
|---|---|---|
| Rated Capacity | 40Ah*2 Parallel 80Ah | - |
| Battery Operating Voltage | 1.5~2.9V | - |
| Rated Voltage | 2.3V*21 Series 48.3V | - |
| Battery Internal Resistance (AC 1kHz) | ≤0.7mΩ | 50% SOC |
| Discharge Current | 80 | Continuous @25°C±5°C |
| Max Discharge Current | 800A(10C) | - |
| Operating Temperature | Charge: -40~65°C Discharge: -40~65°C | - |
| Pack Weight | 78±0.16Kg | - |
| BMS | Monitor voltage, current, and temperature etc. | - |

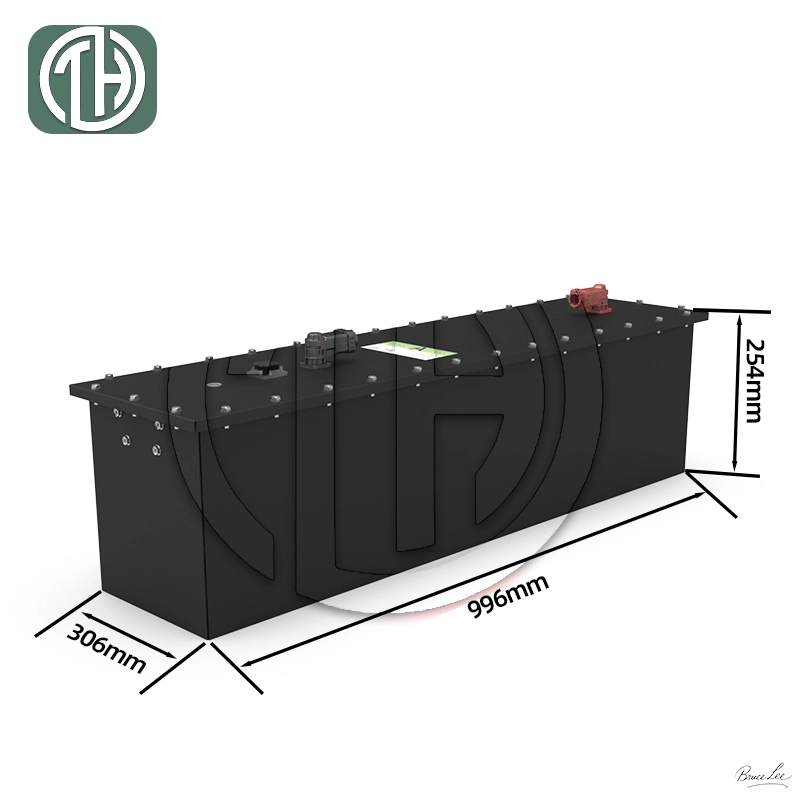

Shows the physical dimensions and structural design of the 2P21S 80Ah LTO battery Pack.
Due to its unique properties, our LTO battery cell is widely used in fields requiring ultra-high power and long life:
Our battery cells are used in electric vehicles to provide reliable, high-performance power for efficient transportation.
Provides robust power for electric motorcycles, enhancing speed and range for urban commuting and adventure.
Powers electric forklifts, ensuring high efficiency and long operating hours for logistics and warehouse operations.
Designed for electric boats, offering silent and powerful propulsion for marine applications.
Optimized for golf carts, providing long-lasting, dependable power for an enjoyable ride.
Powers construction vehicles, delivering reliable and durable energy for heavy-duty work environments.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
