The 51.2V 67Ah configuration delivers 3.43kWh of rated energy in a compact 441 × 256 × 200mm enclosure for industrial equipment and customized electric vehicle projects.
The tested configuration uses 16 prismatic LiFePO4 cells, providing a 51.2V nominal voltage and 67Ah rated capacity.
CAN communication supports integration with external controllers and equipment, while Bluetooth provides convenient access to battery monitoring information.
BMS functions, protection settings, maximum discharge current, connectors, and communication parameters can be configured according to project requirements.

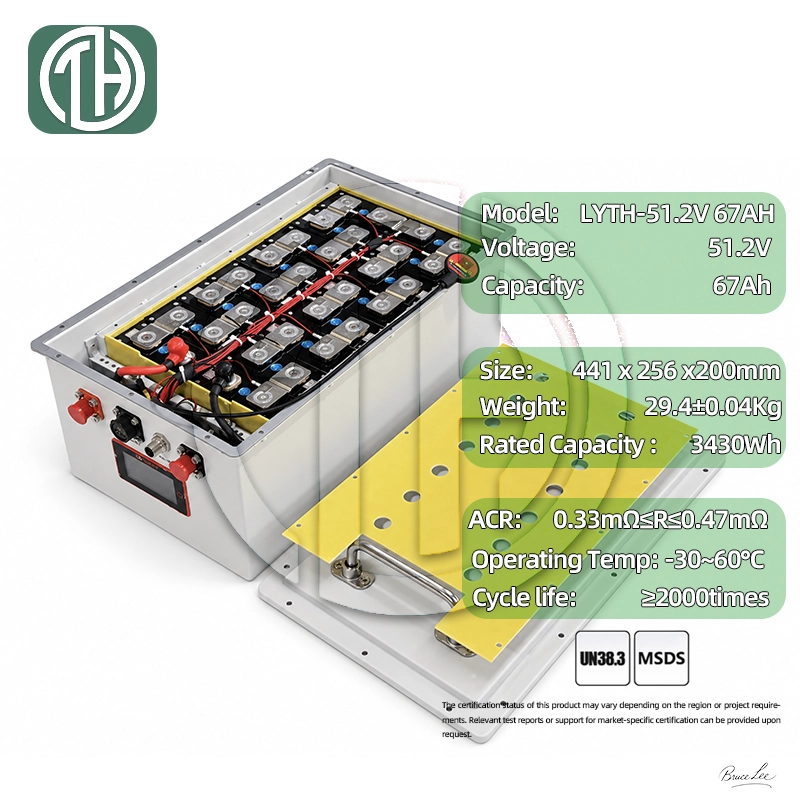

| Item | Parameter | Unit / Note |
|---|---|---|
| Product Type | Rechargeable LiFePO4 Battery Pack | Pack-level product |
| Battery Configuration | 16 Prismatic Cells | Tested configuration |
| Cell Model | IFP42100140A-67Ah | UN38.3 report |
| Nominal Capacity | 67 | Ah |
| Nominal Voltage | 51.2 | V |
| Rated Energy | 3430.4 / 3.43 | Wh / kWh |
| Maximum Charge Voltage | 58.4 | V |
| Standard Charge Current | 33.5 | A |
| Maximum Continuous Charge Current | 67 | A |
| Charge Termination Current | 3.35 | A |
| Discharge Cut-Off Voltage | 40 | V |
| Standard Discharge Current | 20.1 | A |
| Maximum Continuous Discharge Current | 80.4 | A; customizable |
| Battery Chemistry | LiFePO4 | Lithium Iron Phosphate |
| BMS | Customizable | Functions and protection settings can be specified |
| Communication | CAN + Bluetooth | System integration and battery monitoring |
| Ingress Protection | IP56 | Dust and water-jet protection |
| Dimensions (L × W × H) | 441 × 256 × 200 | mm |
| Weight | Approx. 29.418 | kg; tested sample |
| Transport-Safety Test | UN38.3 Passed | Report No. NTT26360020B01-1 |
The electrical values above correspond to the configuration submitted for UN38.3 testing. BMS functions, maximum discharge current, connectors, CAN definitions, and Bluetooth features can be customized according to project requirements and should be confirmed in the final technical agreement.

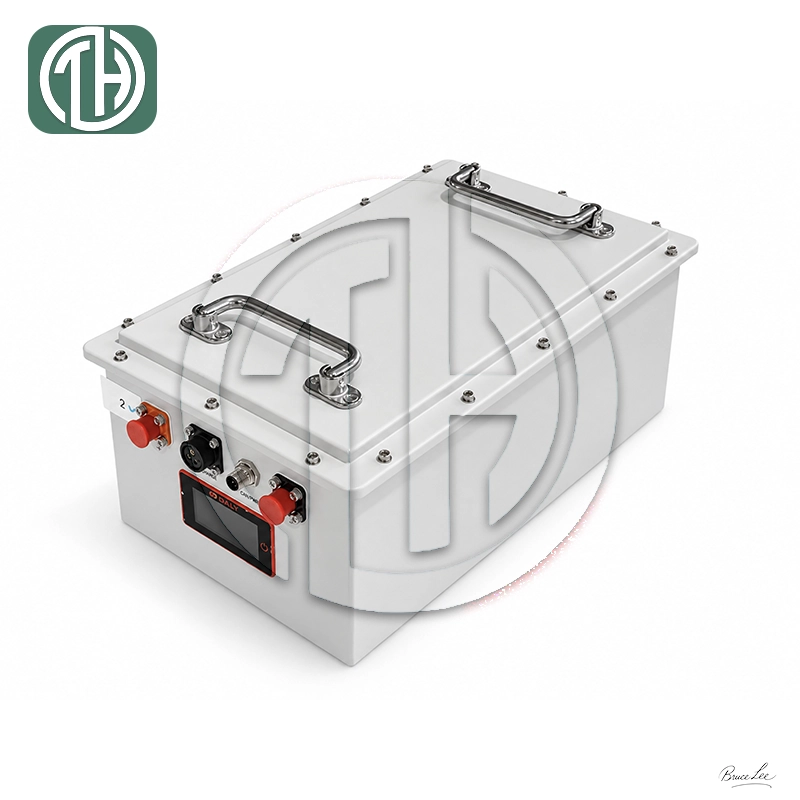

The 51.2V 67Ah LiFePO4 battery pack features a compact rectangular metal enclosure measuring 441 × 256 × 200mm. Its IP56-rated structure provides dust and water-jet protection, while the top-mounted handles support practical handling, installation, and maintenance.

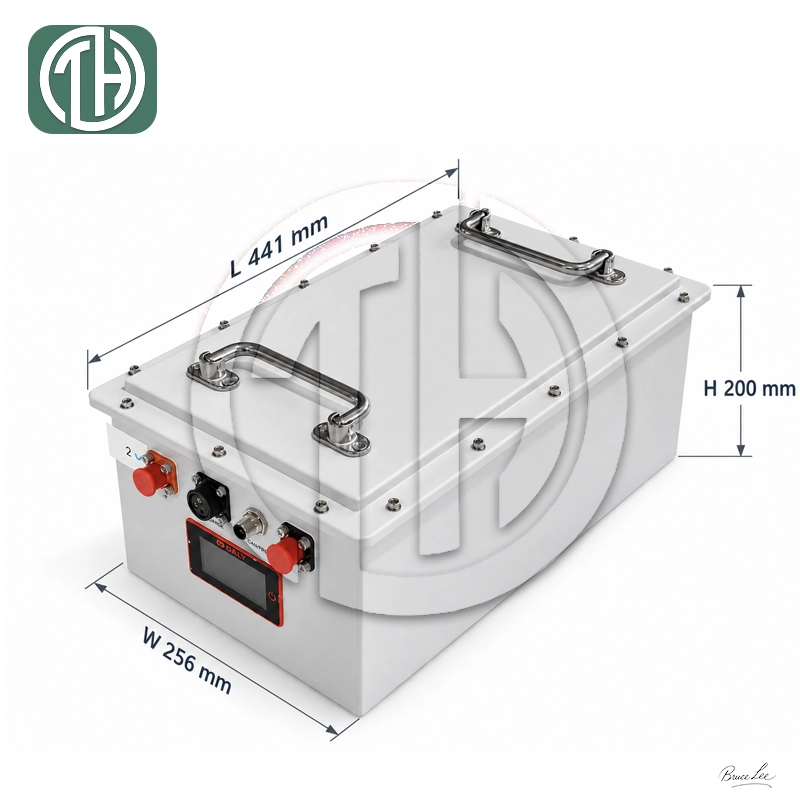

Battery dimensions (L × W × H): 441 × 256 × 200mm. Tested sample weight: approximately 29.418kg. Product appearance, connector layout, and mounting details may vary according to BMS selection and project-specific customization.
Designed for electric cargo tricycles and light electric vehicles, this battery is suitable for a wide range of mobility and light commercial applications:
Reliable power for urban delivery and cargo tricycles, supporting long-range travel and quick charging cycles.
Powers small electric vehicles for urban transport and personal mobility, with long service life and high energy density.
Supports logistics and last-mile delivery vehicles, offering reliable operation under frequent stop-and-go conditions.
Provides auxiliary or emergency power for electric vehicles and small commercial EV fleets.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
