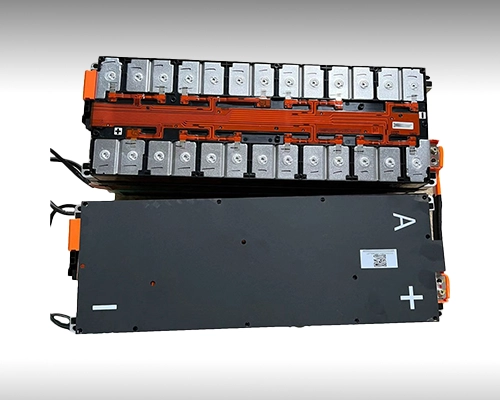

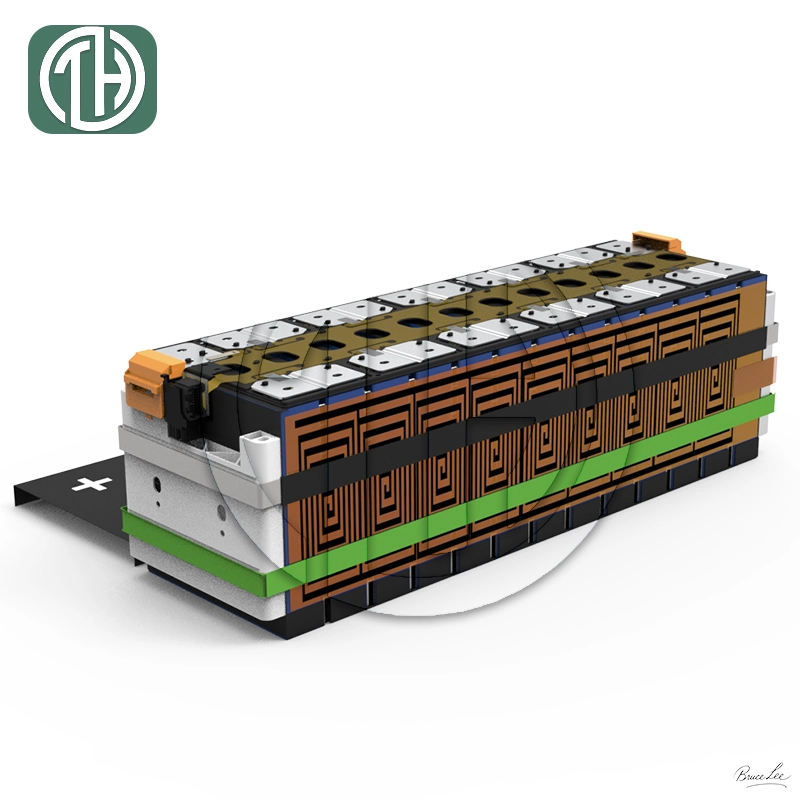

1P13S LFP module with optimized layout for EV and ESS integration.
125Ah capacity delivers 5.2 kWh at 41.6V nominal voltage.
≥2800 cycles with stable voltage for EV, ESS, UPS, and telecom.
LFP chemistry and reinforced structure ensure thermal stability and reliable operation.
| Item | Parameter | Unit |
|---|---|---|
| Configuration | 1P13S LFP Battery Module | – |
| Nominal Capacity | 125 | Ah |
| Nominal Voltage | 41.6 | V |
| Nominal Energy | 5.2 | kWh |
| Voltage Range | 32.5 – 47.45 | V |
| Charging Cut-off Voltage | 47.45 | V |
| Discharging Cut-off Voltage | 32.5 | V |
| Max Continuous Discharge Current | 125 | A |
| Cycle Life | ≥2800 (25℃, 1C) | Cycles |
| Battery Chemistry | LFP (Lithium Iron Phosphate) | – |
| Dimensions (L×W×H) | 520 × 176.6 × 182.5 | mm |
| Weight | 33 | kg |
Shows the physical dimensions and structural design of the 2P7S 200Ah LFP battery module.
Due to its unique properties, our LFP battery cell is widely used in fields requiring ultra-high power and long life:
Powers electric forklifts, ensuring high efficiency and long operating hours for logistics and warehouse operations.
Optimized for golf carts, providing long-lasting, dependable power for an enjoyable ride.
The LFP Battery module delivers reliable power for off-grid and solar systems.
Efficient and durable energy storage for homes and businesses.
Dependable energy for continuous telecom operations.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
