The L148F120A prismatic cell delivers a rated capacity of 120Ah with a 3.215V standard output, featuring a high mass energy density of ≥195Wh/kg.
Advanced LFP chemistry supports a fast charging time of ≤19 minutes (10% to 80% SOC), optimizing efficiency for modern EV and ESS applications.
Built with an Al3003 aluminum alloy shell and U-type PET insulation, the cell includes a 430mm² safety vent for maximum operational reliability.
Ensures stable performance with a wide discharge temperature range from -30°C to +60°C, suitable for extreme environmental conditions.

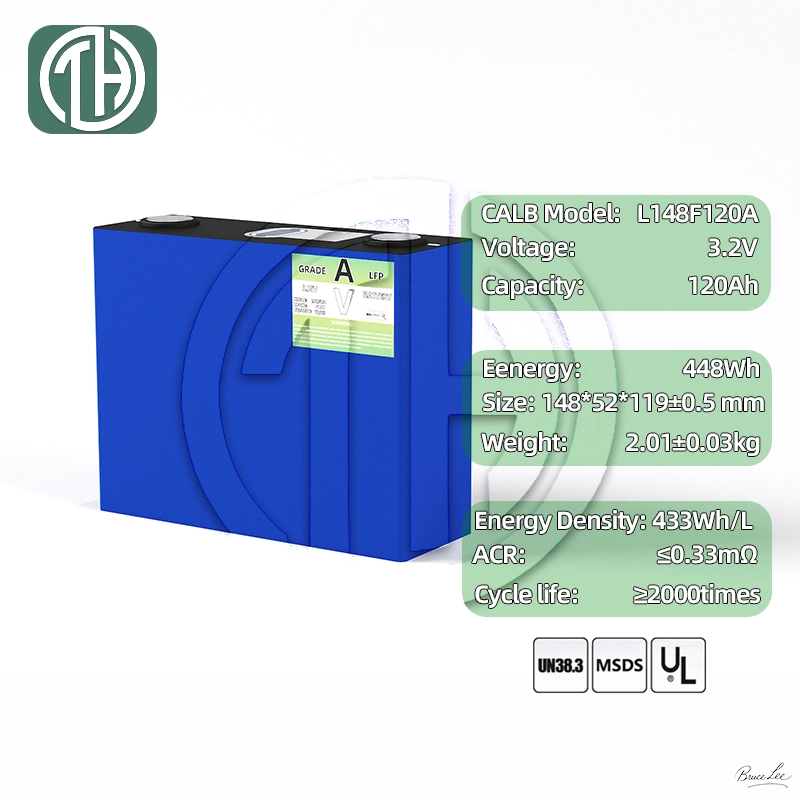

| Item | Parameter | Test Condition / Note |
|---|---|---|
| Model | L148F120A | CALB Prismatic Lithium Ion Battery |

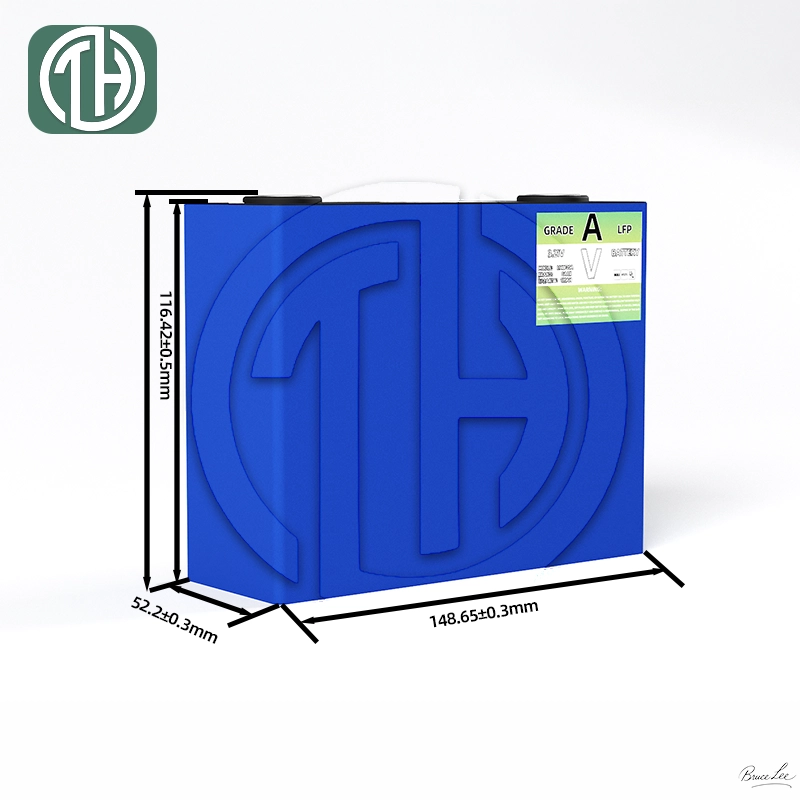

| Dimension (W × H × T) | 148.65 × 119.05 × 52.3 mm | H incl. terminals; T @17% SOC, 300kgf |
| Nominal Voltage | 3.215 V | Standard discharge @25±2°C |
| Nominal Capacity | 122 Ah | Standard discharge @1/3C, 25±2°C |
| Weight | 2.01 ± 0.03 kg | Mass Energy Density: ≥195 Wh/kg |
| Energy | 392.2 Wh | Standard discharge nominal energy |
| Internal Resistance (ACR) | ≤0.33 mΩ | @1000 Hz, 70% SOC, Room Temp |
| Charging Cut-off Voltage | 3.65 V | Standard operation limit |
| Discharge Cut-off Voltage | 2.5 V | Standard operation limit (T≥0°C) |
| Fast Charge Performance | 10% to 80% SOC ≤ 19 min | Rapid charging capability |
| Safety Vent | 430 mm² | High-efficiency degassing area |
| Insulation | Blue PET Film | U-type vertical sticking, ≥3150V DC |
| Operating Temperature | Charging: -20 ~ 55°C Discharging: -30 ~ 60°C | Operating temperature range |
| Storage Temperature | -40 ~ 60°C | Wide storage temperature range |
Note: Specifications are based on official CALB Product Specification for L148F120A prismatic cells. High energy density and fast charging make it ideal for advanced EV and industrial ESS applications.
Available with welding or nut terminals to suit various installation needs, with an interactive 3D model view.
The label shown on the battery cell is for visual demonstration only. The actual product will usually not have this label, only the essential numbering or identification.
Due to its unique properties, our LFP battery cell is widely used in fields requiring ultra-high power and long life:
Meets the fast charge and discharge needs of buses for rapid energy replenishment.
Used for grid peak shaving and frequency regulation to enhance stability.
Efficiently integrates wind and solar energy to ensure a stable power supply.
Provides efficient energy for automated equipment and mobile robots.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
