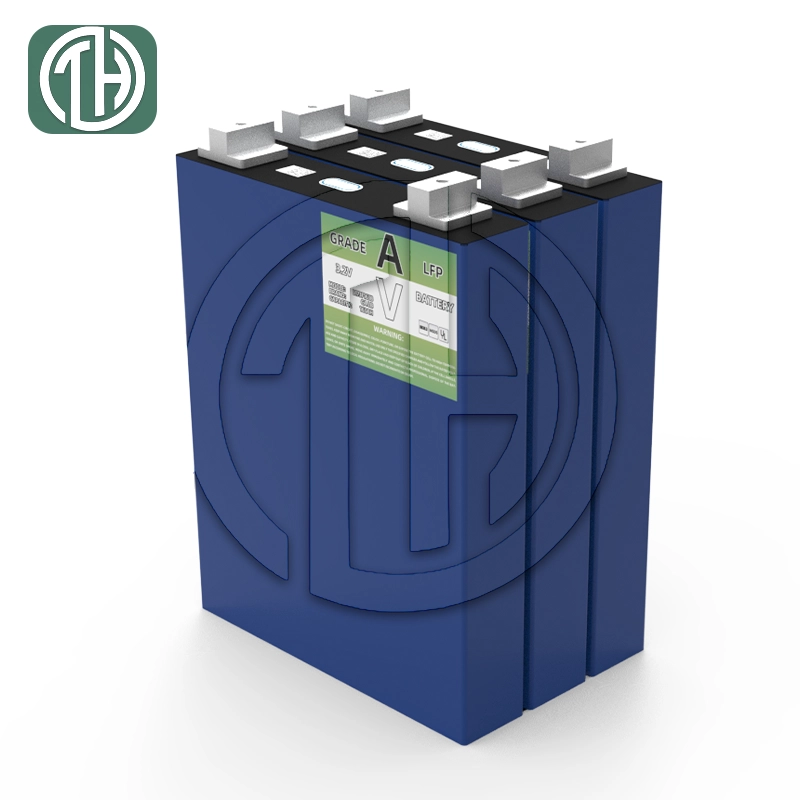

Premium CALB L173F163B cell designed for high-performance energy storage (ESS) and commercial electric vehicle (CEV) applications.
≥ 4,000 deep cycles at 80% SOH, ensuring long-term reliability and lower total cost of ownership (TCO).
Industry-leading LFP chemistry achieving ~169 Wh/kg, offering more power in a compact, lightweight aluminum casing.
Automotive-grade consistency and ultra-low internal resistance, perfectly optimized for high-voltage module and pack integration.

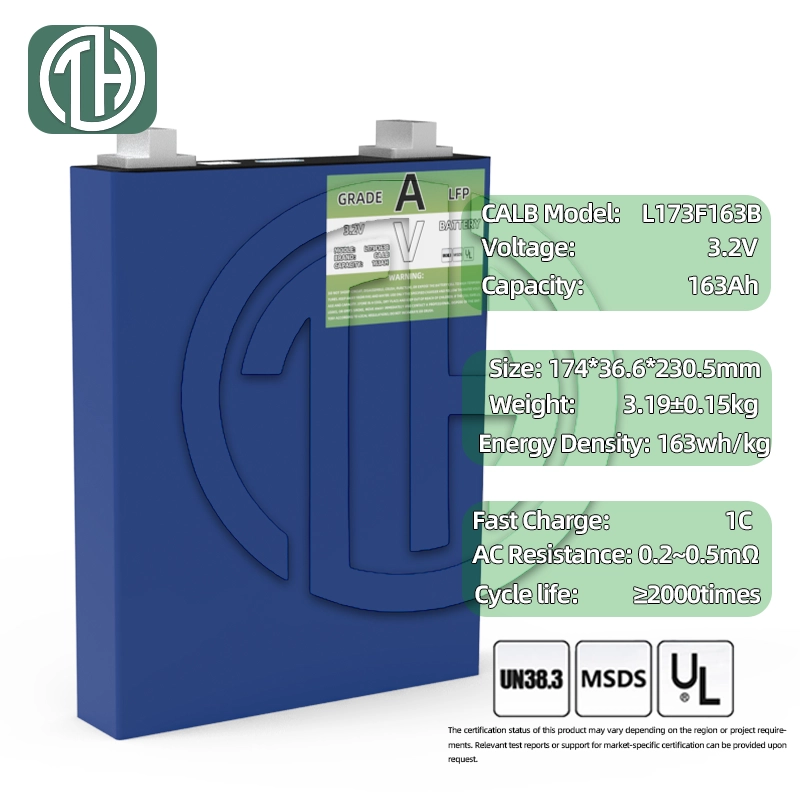

| Item | Parameter | Test Condition |
|---|---|---|
| Nominal Capacity | 163Ah | @0.5C, 25±2°C |
| Nominal Voltage | 3.2V | 3.2V Platform |
| Charge Voltage | 3.65V | Standard LFP Limit |
| End of Discharge Voltage | 2.5V | Discharge Cut-off |
| Internal Resistance | ≤ 0.5mΩ | AC 1kHz, 50% SOC |
| Standard Charge Current | 81.5A | 0.5C |
| Max. Charge Current | 163A | 1C |
| Standard Discharge Current | 81.5A | 0.5C |
| Max. Continuous Discharge Current | 163A | 1C |
| Max. Pulse Discharge Current | 489A (30s) | 3C @ 50% SOC |
| Operating Temperature (Charge) | 0°C to 60°C | Standard Range |
| Operating Temperature (Discharge) | -30°C to 60°C | Extended Low-temp |
| Cycle Life | 4000+ cycles | @80% DOD, 25°C |
| Dimension (L×W×H) | 174.4×36.4×230.5 mm | ±0.5 mm |
| Weight | 3.1 ± 0.1 kg | Approx. |
| Shell Material | Aluminium | Prismatic Design |
Note: The above table consolidates multiple public datasheet & test sources for the CALB L173F163B model. For engineering design or certification, please refer to the official CALB technical documentation to confirm specific operating windows and pulse current limits.

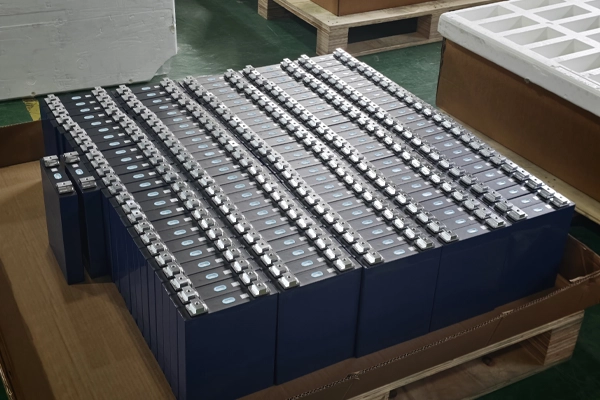

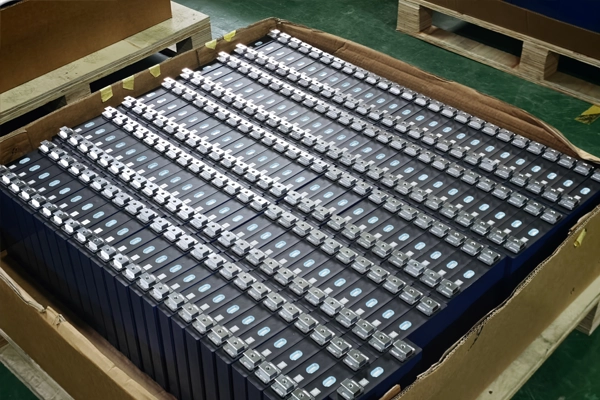

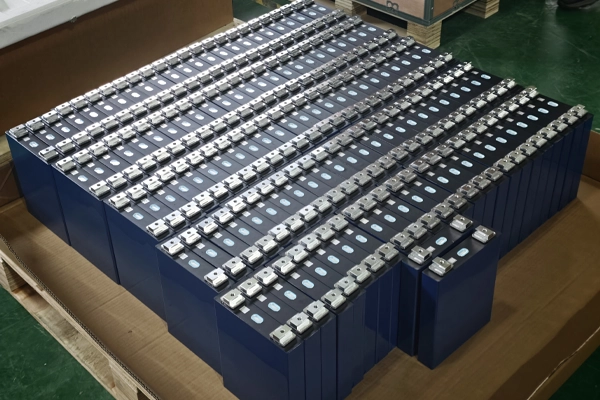

Authentic images from our factory, featuring genuine CALB L173F163B LFP cells and project assemblies — demonstrating LYTH's technical capabilities, quality standards, and commitment to reliable energy solutions.
Note: All photos are captured in our LYTH facility. While cell color may vary slightly due to lighting, all technical specifications remain strictly consistent.

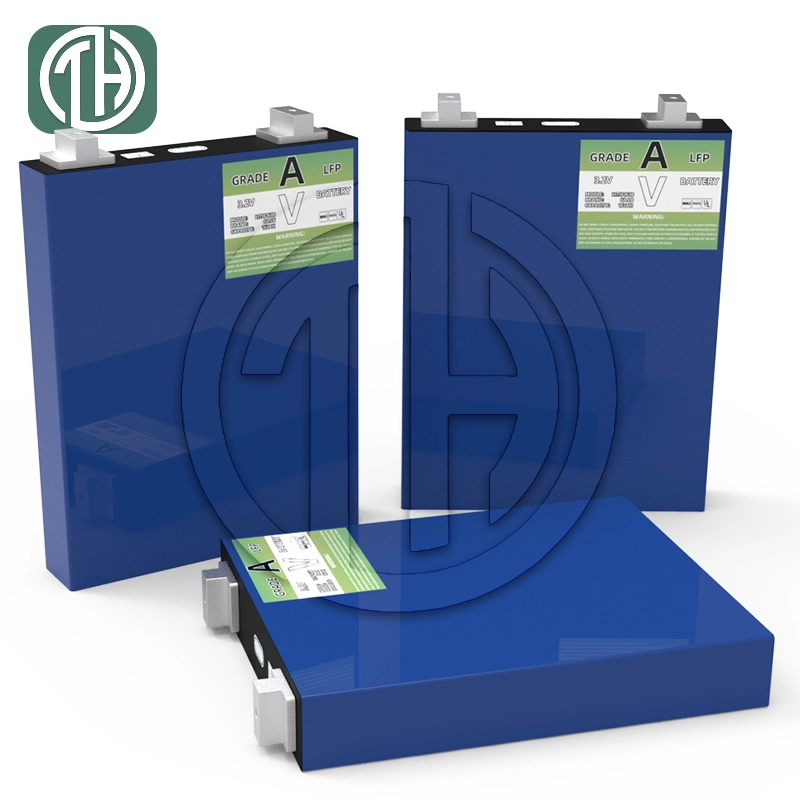

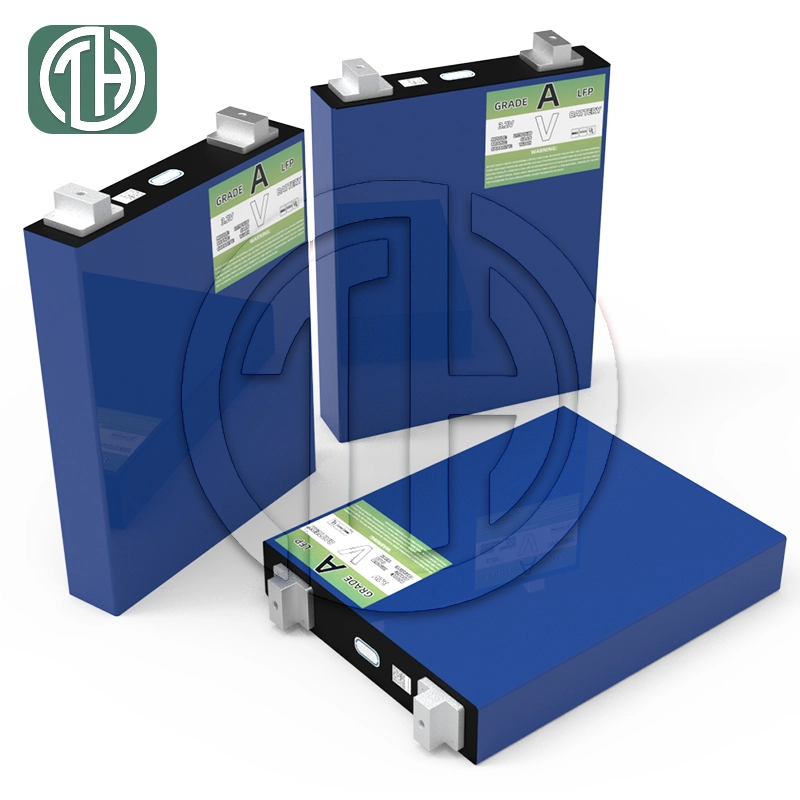

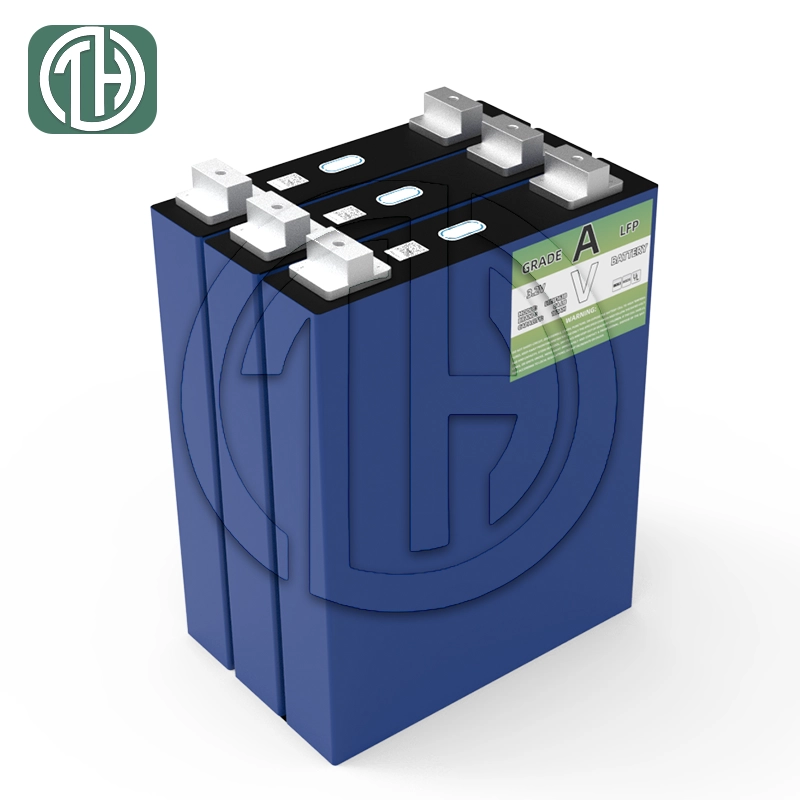

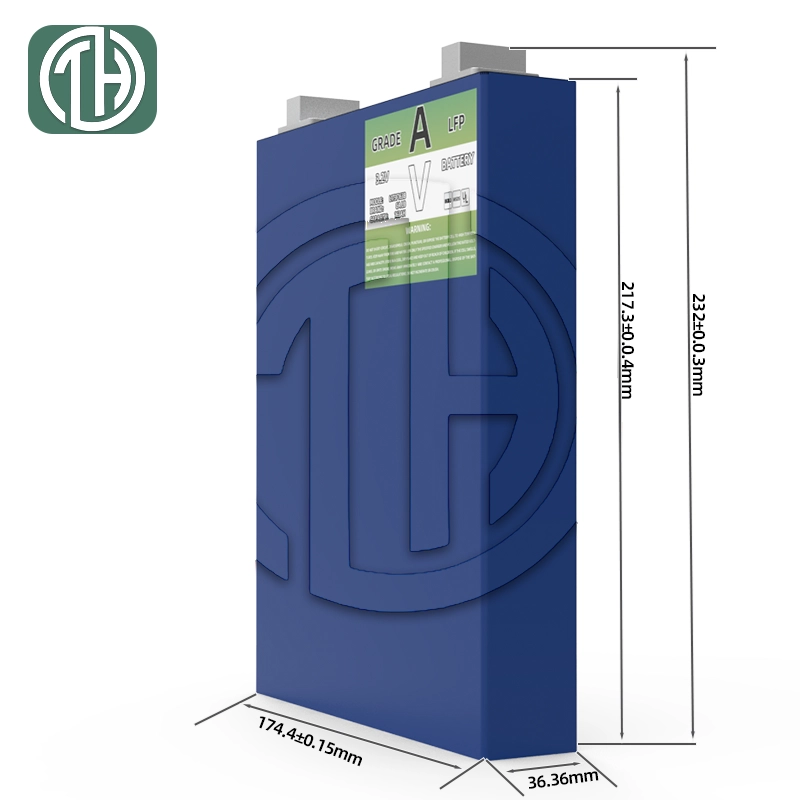

CALB L173F163B (163Ah) available with professional welding or customized nut terminals. Explore the 174.4 x 36.4 x 230.5 mm prismatic form factor via our interactive 3D model.
Note: The terminal style and labels shown are for demonstration. Actual CALB Grade A cells come with original laser-etched QR codes and essential safety markings.
Due to its unique properties, our LFP battery cell is widely used in fields requiring ultra-high power and long life:
Meets the fast charge and discharge needs of buses for rapid energy replenishment.
Used for grid peak shaving and frequency regulation to enhance stability.
Efficiently integrates wind and solar energy to ensure a stable power supply.
Provides efficient energy for automated equipment and mobile robots.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
