L194F54 prismatic cell delivers 54Ah with stable 3.2V output, ideal for solar ESS, EV packs, and industrial energy systems.
Optimized prismatic design ensures high efficiency and supports high-rate continuous discharge.
≥4,000 cycles maintain reliable performance in continuous operation.
LFP chemistry and reinforced prismatic structure provide excellent thermal stability and safety.

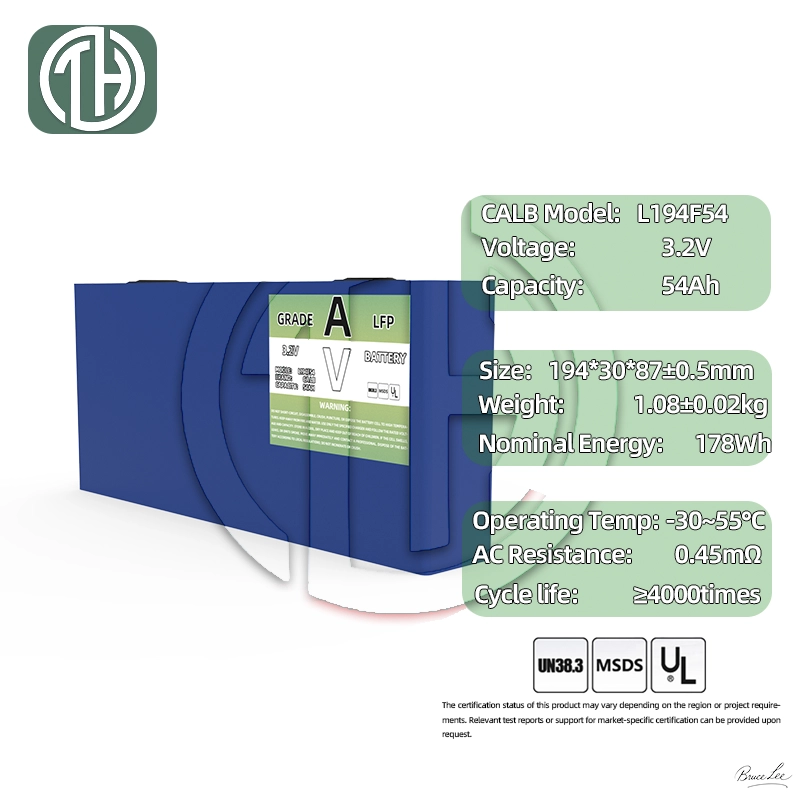

| Item | Parameter | Test Condition / Note |
|---|---|---|
| Model | L194F54 | |

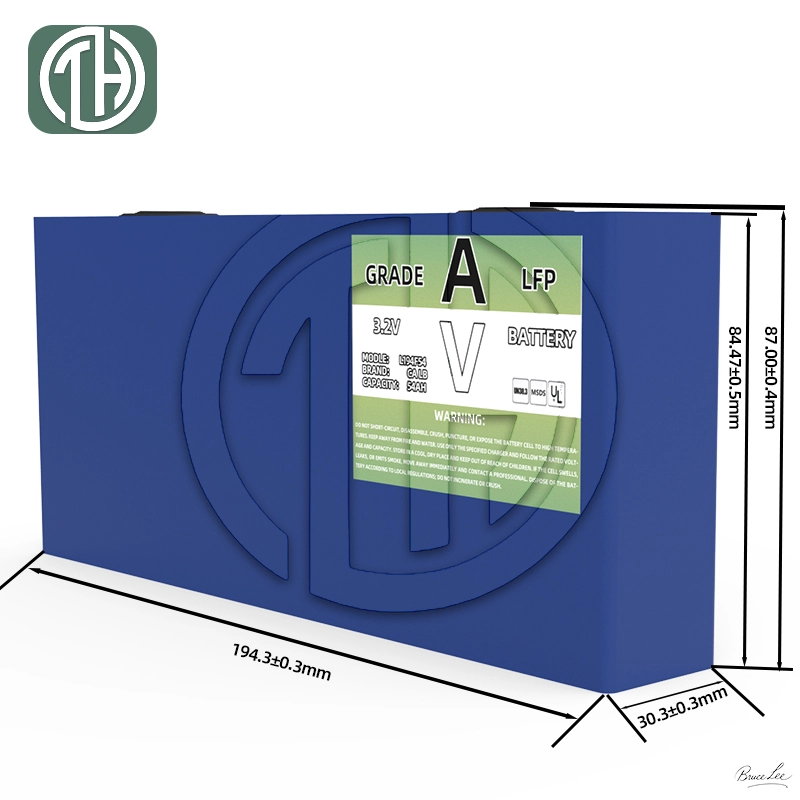

| Dimension (W × H × T) | 30.3 × 87 × 194.3 mm | Typical size |
| Nominal Voltage | 3.2V | 25°C |
| Nominal Capacity | 54Ah | @1C, 25°C |
| Weight | ≈1.08kg | |
| Energy | ≈172.8 Wh | Nominal |
| Internal Resistance | ≤0.45 mΩ | Typical, room temp |
| Charging Cut‑off Voltage | 3.65V | |
| Discharge Cut‑off Voltage | 2.3V | |
| Max. Charge Current | ~2.3C | ~124A |
| Max. Discharge Current | ~4.6C | ~248A |
| Cycle Life | ≥4,000 cycles | 80% SOH @1C |
| Operating Temperature | Charging: -30~55°C Discharging: -35~55°C | |
| Storage Temperature | -40~60°C |
Note: Specifications are based on typical datasheet values for L194F54 LiFePO₄ battery cells. Confirm actual requirements with your supplier.
Available with welding or nut terminals to suit various installation needs, with an interactive 3D model view.
The label shown on the battery cell is for visual demonstration only. The actual product will usually not have this label, only the essential numbering or identification.
Due to its unique properties, our LFP battery cell is widely used in fields requiring ultra-high power and long life:
Meets the fast charge and discharge needs of buses for rapid energy replenishment.
Used for grid peak shaving and frequency regulation to enhance stability.
Efficiently integrates wind and solar energy to ensure a stable power supply.
Provides efficient energy for automated equipment and mobile robots.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
