Supports high discharge rates for heavy-load and high-thrust UAV applications.
Reliable discharge performance from -40°C to 55°C in harsh environments.
Pouch cell structure enables high energy density and reduced system weight.
Excellent cell consistency for safe series and parallel configurations.

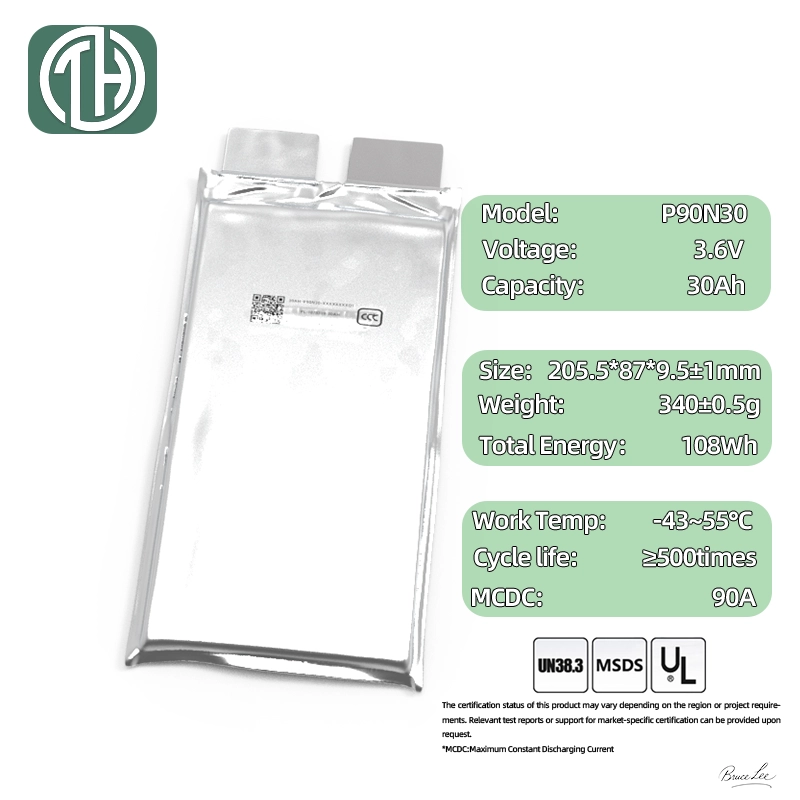

| Item | Parameter | Unit |
|---|---|---|
| Manufacturer | CALB (China Aviation Lithium Battery) | – |
| Model | P90N30 | – |
| Cell Type | Li-ion NMC Pouch Cell | – |
| Nominal Capacity | 30 | Ah |
| Nominal Voltage | 3.65 | V |
| Nominal Energy | 109.5 | Wh |
| Charge Cut-off Voltage | 4.20 | V |
| Discharge Cut-off Voltage | 2.75 | V |
| Max Continuous Discharge | 3C (90A) | – |
| Peak Discharge | 10C (short duration) | – |
| Charge Temperature Range | 0 to 45 | ℃ |
| Discharge Temperature Range | -40 to 55 | ℃ |
| Storage Temperature | -20 to 35 (recommended) | ℃ |
| Cycle Life | ≥500 cycles (25℃, standard condition, SOH ≥80%) | Cycles |
| Cell Form Factor | Pouch (Aluminum Plastic Film) | – |

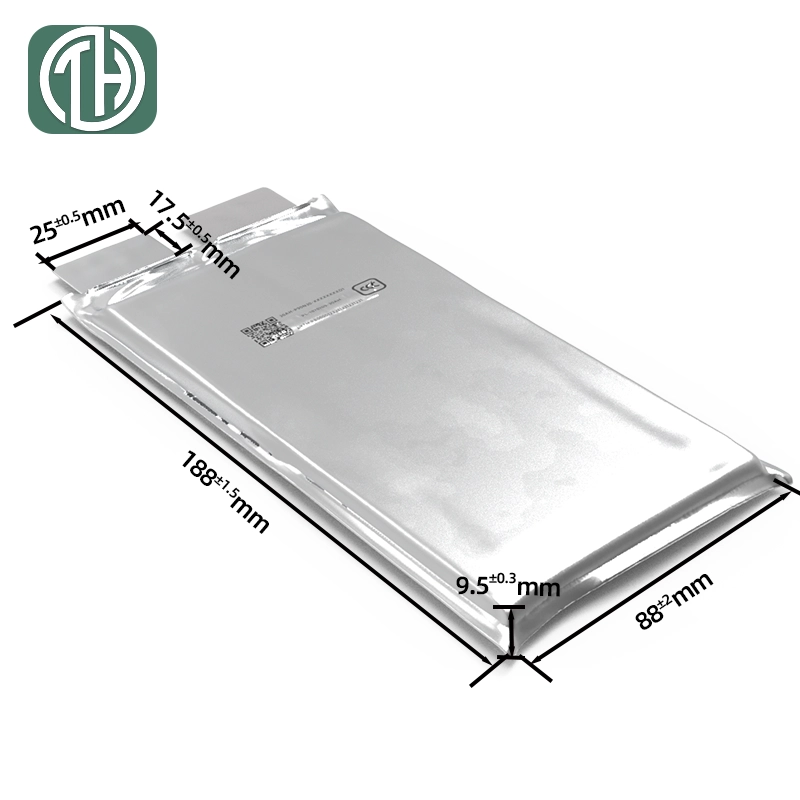

Shows the physical dimensions and structural design of the CALB P90N30 30Ah NMC High-Power Pouch Cell.
With a superior energy density of 317 Wh/kg and a massive 10C (300A) pulse discharge capability, the P90N30 cell offers the perfect balance of ultra-long endurance and high-power redundancy for heavy-lift and long-range industrial drones.
Delivers the high C-rate power for demanding drone payloads.
Delivers 85%+ efficiency in harsh conditions as low as -40°C.
10C pulse power for high-altitude heavy-lift redundancy.
Emergency Rescue Drone — Heavy-lift, high C-rate, mission-ready.
Compact size and high power output enable agile movement in limited spaces.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
Certification status varies by region, application, and project scope. Products are not supplied as standard with all certifications. Relevant test reports, compliance support, or certification assistance can be provided upon request.
