1P12S 58Ah prismatic cells deliver stable high energy for EV and industrial use.
Optimized design ensures efficient power delivery and minimal loss.
≥2,000 cycles under typical conditions for reliable long-term operation.
Advanced NMC chemistry and module design provide thermal stability and consistent output.

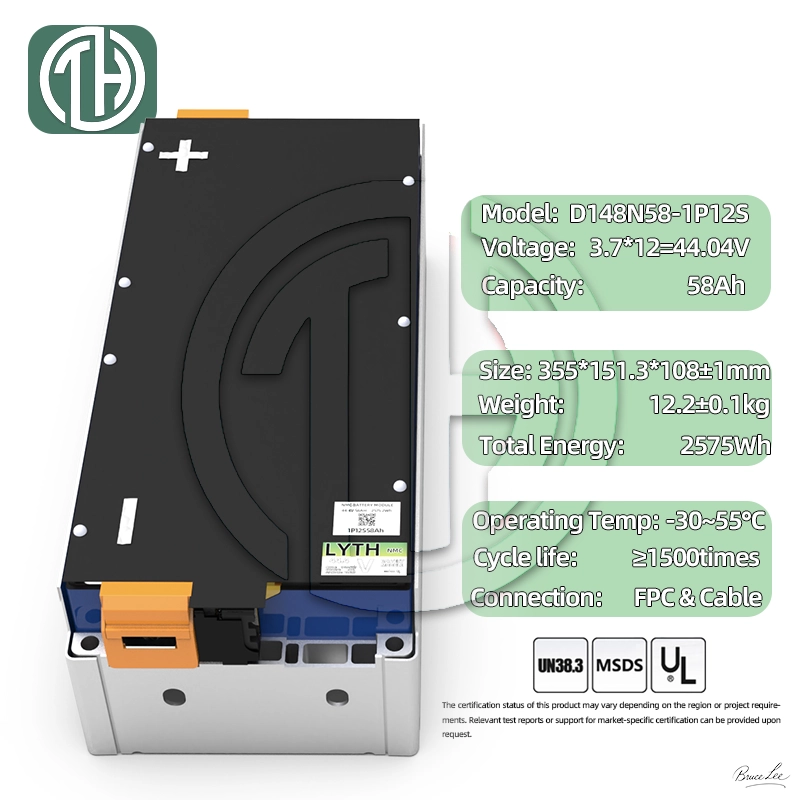

| Item | Parameter | Test Condition / Note |
|---|---|---|
| Model | 1P12S | |

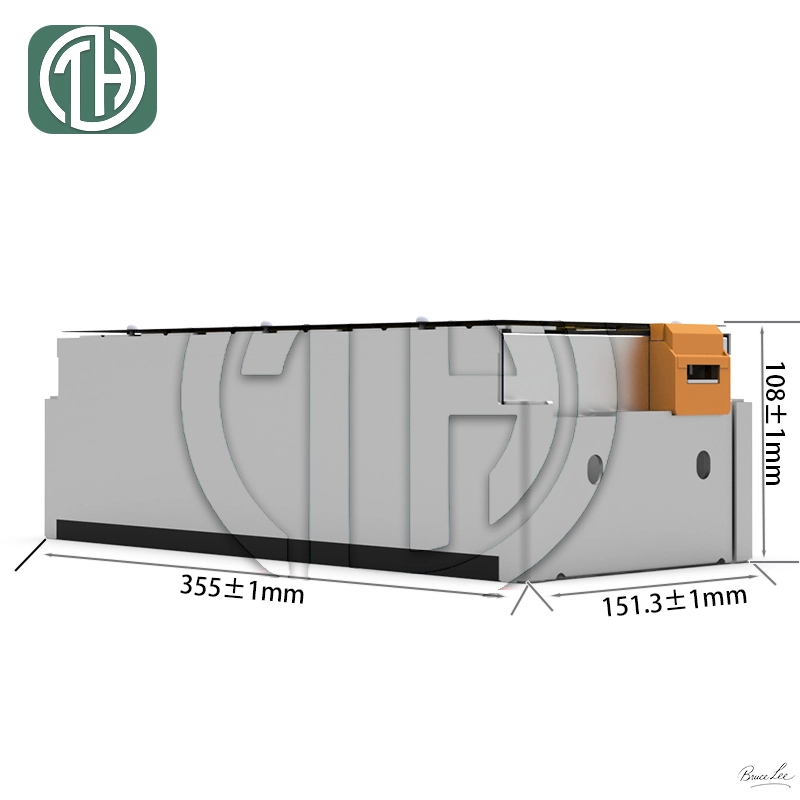

| Dimension | 355±1 * 151.5±1 * 108±1 mm | |
| Nominal Voltage | 43.44V | 25°C |
| Nominal Capacity | 58Ah | @1C |
| Weight | 12±0.3kg | |
| Voltage Range | 33.6V ~ 50.4V 30V ~ 50.4V 25.2V ~ 50.4V | 5°C < T < 55°C -20°C < T ≤ 5°C -30°C ≤ T < -20°C |
| Total Energy | 2.58kwh | |
| Working Temperature | Charging: -20~55°C Discharging: -30~55°C | |
| Storage Temperature | -40°C ~ 60°C |
Note: Data transcribed from the provided Lithium ion Battery Module Data sheet image. Please confirm specific application requirements.
The module supports modular expansion within a CTM architecture, catering to diverse usage requirements and application scenarios.
The label shown on the battery module is for visual demonstration only. The actual product will usually not have this label, only the essential numbering or identification.
Due to its high energy density and superior power performance, our NMC power module is widely used in fields requiring lightweight design and robust output.
Delivers longer range and faster acceleration thanks to its lightweight and high-energy design.
Maximizes flight duration and payload with a superior energy-to-weight ratio.
Compact size and high power output enable agile movement in limited spaces.
Provides strong burst power in a lightweight form to minimize user fatigue.
Offers maximum energy capacity in the smallest possible footprint.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
