3P4S configuration delivers 174Ah with stable output for mobility and industrial systems.
Parallel design enhances current capability and overall power efficiency.
≥2,000 cycles provide reliable long-term performance.

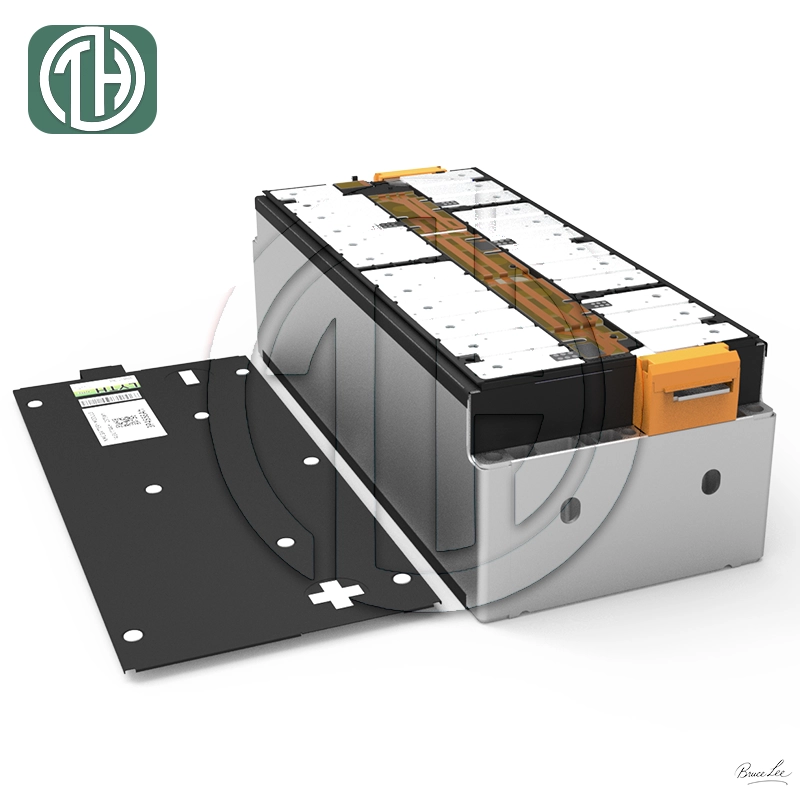

NMC chemistry and reinforced module construction ensure thermal stability and safety.

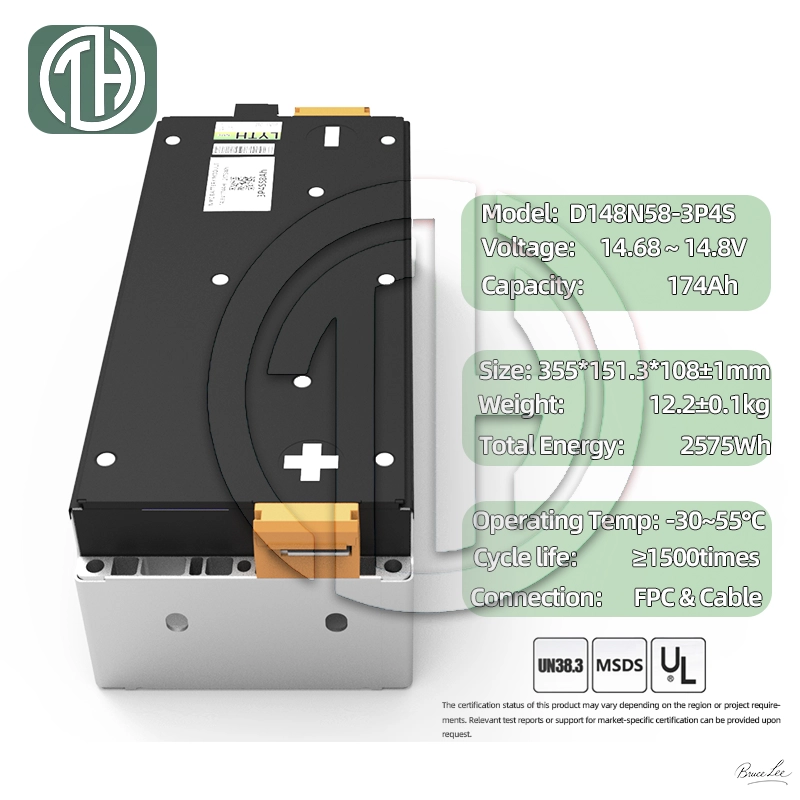

| Item | Parameter | Test Condition / Note |
|---|---|---|
| Model | 3P4S | |

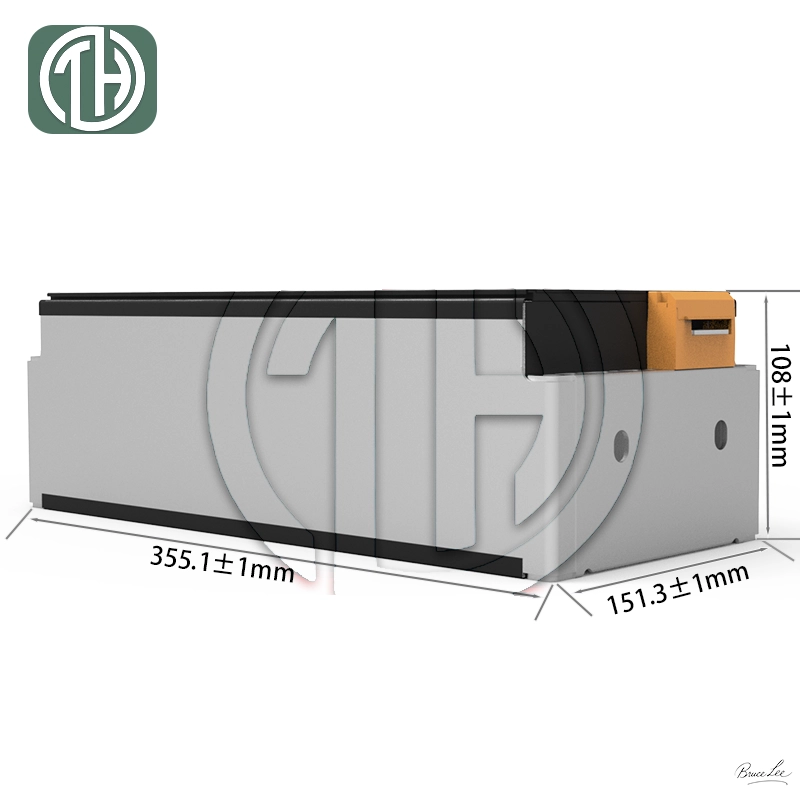

| Dimension | 355±1 * 151.5±1 * 108±1 mm | Same VDA355 structural standard |
| Nominal Voltage | 14.8V | 25°C |
| Nominal Capacity | 174Ah | 3P configuration |
| Weight | 12±0.3kg | Approx., may vary by module design |
| Voltage Range | 12.6V ~ 16.8V 11V ~ 16.8V 8.4V ~ 16.8V | 5°C < T < 55°C -20°C < T ≤ 5°C -30°C ≤ T < -20°C |
| Total Energy | 2.57kWh | 14.8V × 174Ah |
| Working Temperature | Charging: -20~55°C Discharging: -30~55°C | |
| Storage Temperature | -40°C ~ 60°C |
Note: Data generated based on VDA355 module structure and 3P4S configuration. Please verify for your specific application.
The module supports modular expansion within a CTM architecture, catering to diverse usage requirements and application scenarios.
The label shown on the battery module is for visual demonstration only. The actual product will usually not have this label, only the essential numbering or identification.
Due to its high energy density and superior power performance, our NMC power module is widely used in fields requiring lightweight design and robust output.
Delivers longer range and faster acceleration thanks to its lightweight and high-energy design.
Maximizes flight duration and payload with a superior energy-to-weight ratio.
Compact size and high power output enable agile movement in limited spaces.
Provides strong burst power in a lightweight form to minimize user fatigue.
Offers maximum energy capacity in the smallest possible footprint.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
