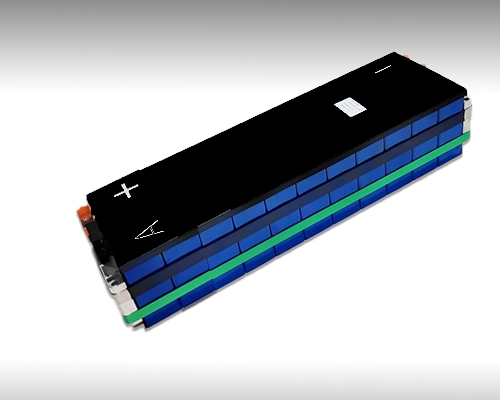

1P11S LFP configuration with a standardized MEB590 structure and 590 mm length, enabling seamless integration into MEB-platform EV battery packs and modular ESS systems.
100Ah capacity delivers 3.52 kWh of energy at 35.2V nominal voltage, providing stable and efficient power output in a compact module footprint.
Engineered for long service life with stable voltage performance, suitable for EV traction battery systems, ESS, UPS, and industrial energy applications.
LFP chemistry combined with a reinforced mechanical structure ensures excellent thermal stability, high safety, and reliable operation under wide working conditions.
| Item | Parameter | Unit |
|---|---|---|
| Configuration | 1P11S LFP Battery Module (MEB590) | – |
| Nominal Capacity | 100 | Ah |
| Nominal Voltage | 35.2 | V |
| Nominal Energy | ≈3.52 | kWh |
| Voltage Range | 27.5 – 40.15 | V |
| Charging Cut-off Voltage | 40.15 | V |
| Discharging Cut-off Voltage | 27.5 | V |
| Max Continuous Discharge Current | 100 | A |
| Cycle Life | ≥2000 (25℃) | Cycles |
| Battery Chemistry | LFP (Lithium Iron Phosphate) | – |
| Dimensions | 590 × 163.2 × 122 ±1 | mm |
| Weight | 23.2 ±0.4 | kg |
Shows the physical dimensions and structural design of the 1P11 100Ah LFP battery module.
Due to its unique properties, our SIB battery cell is widely used in fields requiring ultra-high power and long life:
Powers electric forklifts, ensuring high efficiency and long operating hours for logistics and warehouse operations.
Optimized for golf carts, providing long-lasting, dependable power for an enjoyable ride.
The LFP Battery module delivers reliable power for off-grid and solar systems.
Efficient and durable energy storage for homes and businesses.
Dependable energy for continuous telecom operations.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
