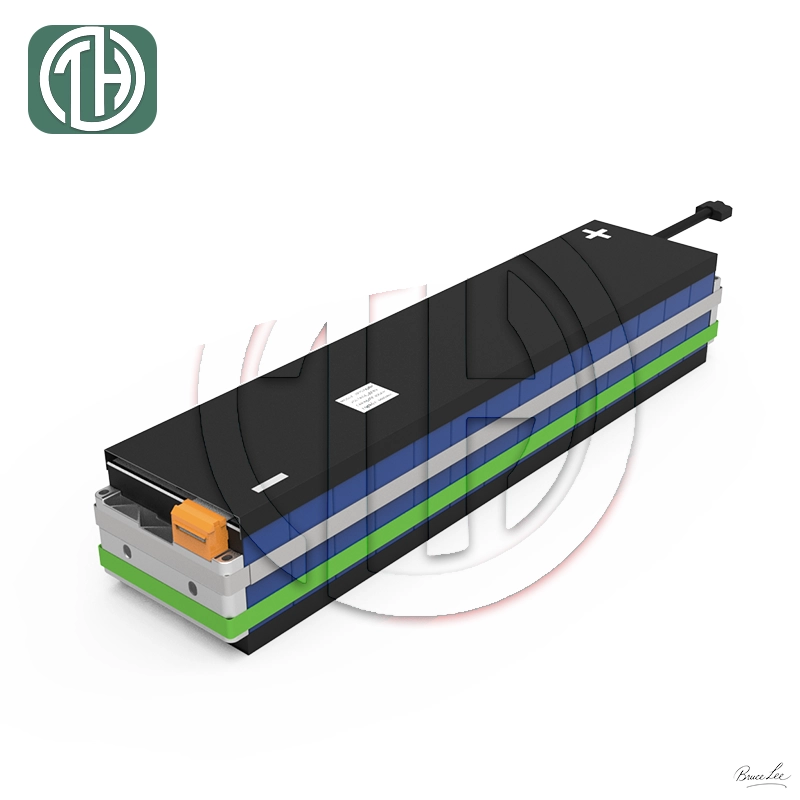

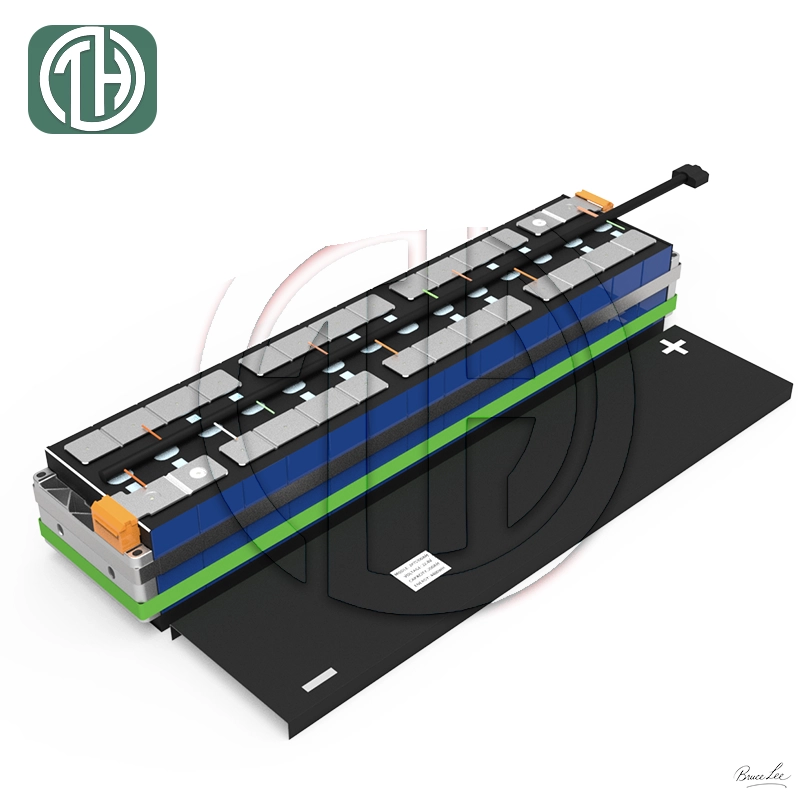

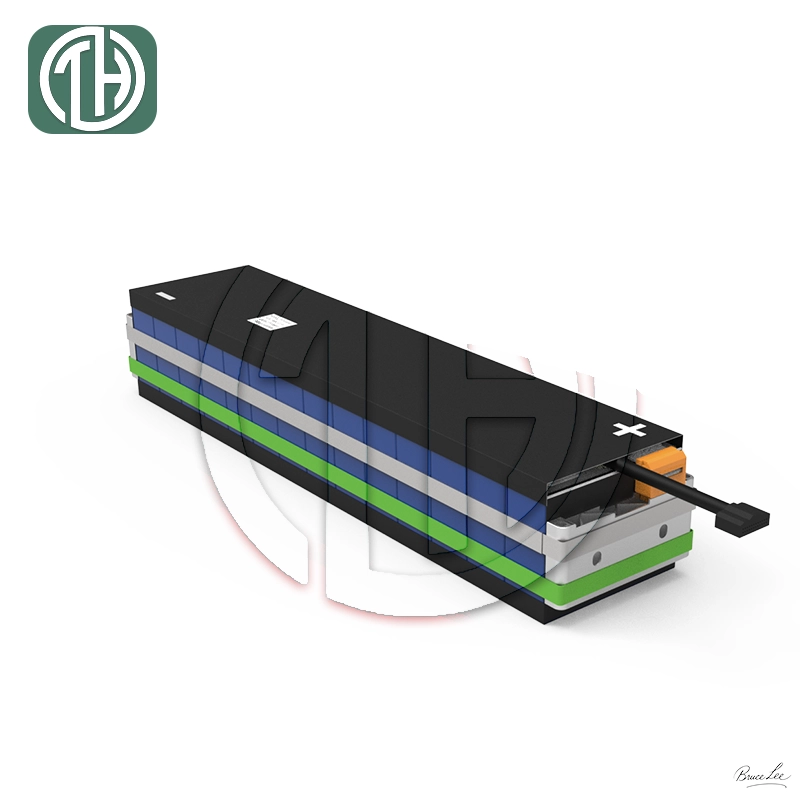

Explore every design detail of the LYTH VDA battery module through our interactive 3D model. Rotate, zoom, and examine the internal structure in 360°. It's the best way to experience our exceptional engineering.
LFP battery modules are renowned for their high thermal stability and resistance to thermal runaway. They maintain structural integrity even under high temperatures, mechanical stress, or overcharging conditions—making them ideal for applications with stringent safety requirements such as electric vehicles and stationary energy storage.
LFP battery modules are designed with standardized structures (e.g., 1P12S, VDA dimensions), featuring unified dimensions, electrical interfaces, and mounting methods. This allows for quick assembly into various voltage platforms or PACK systems, significantly simplifying system integration.
LFP modules support various series-parallel configurations (e.g., 1P8S, 2P7S, 1P16S), enabling flexible voltage and capacity customization. Optional thermal management (air or liquid cooling) and terminal types (screw or quick-connect) are also available to meet the needs of AGVs, energy storage cabinets, light electric vehicles, and more.

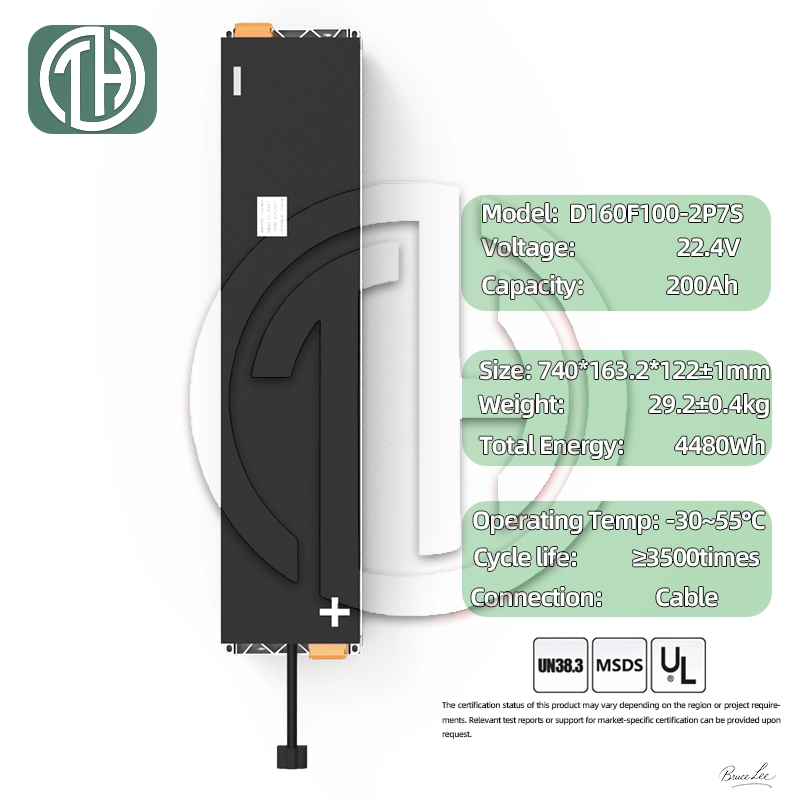

| Specification | Value |
|---|---|
| Nominal Voltage | 22.4 V |
| Rated Energy | 4.48 kWh |
| Nominal Capacity | 200 Ah |

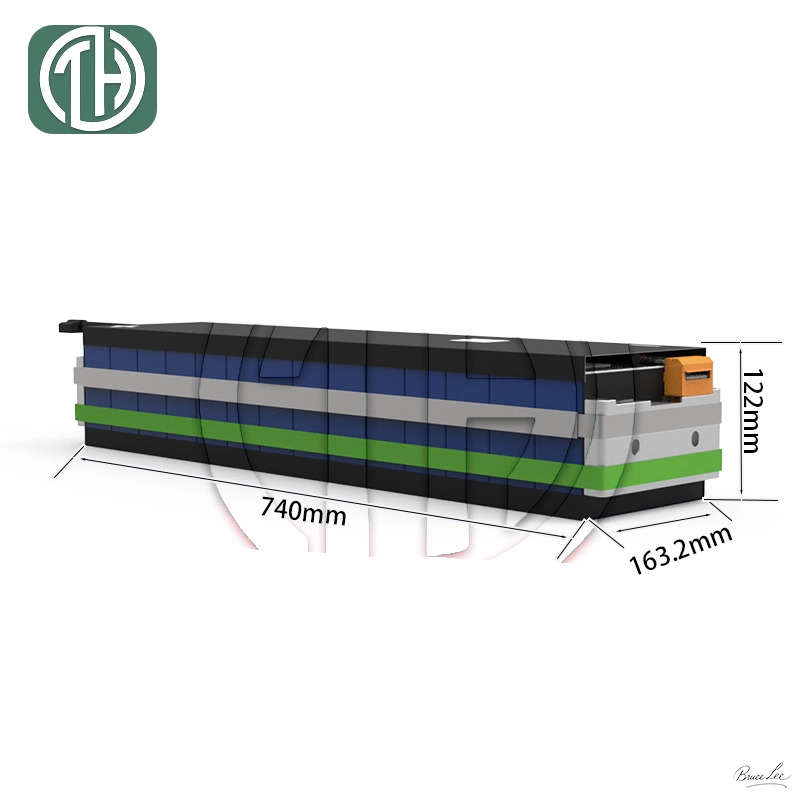

| Dimensions | 740x163x122(±2mm) |
| Weight | ≤29.2±0.4kg |
| Cycle Life | ≥2500 times |
| Operating Temperature | -20°C ~ 60°C |
