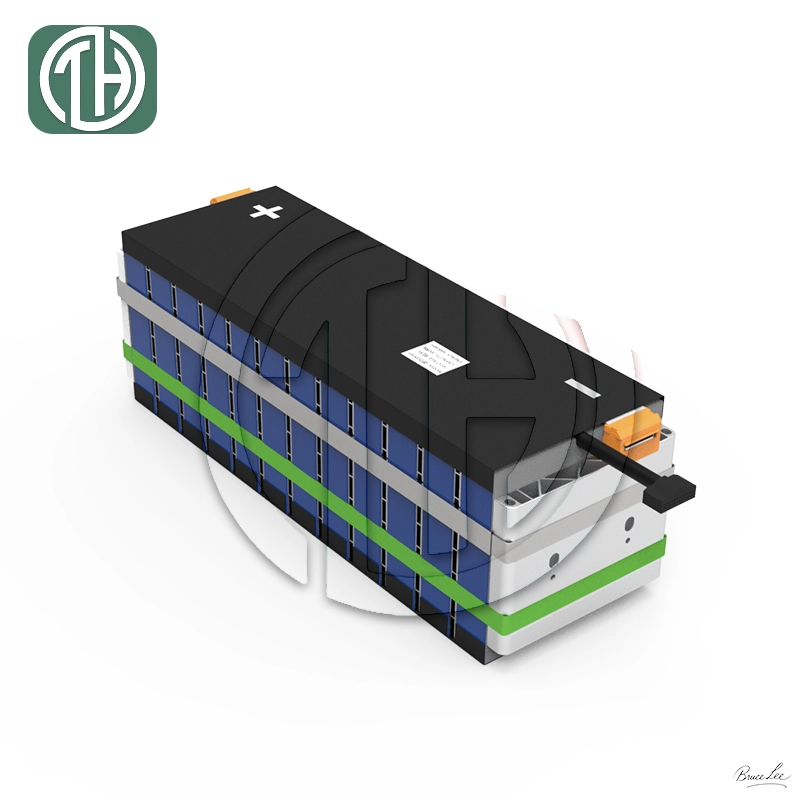

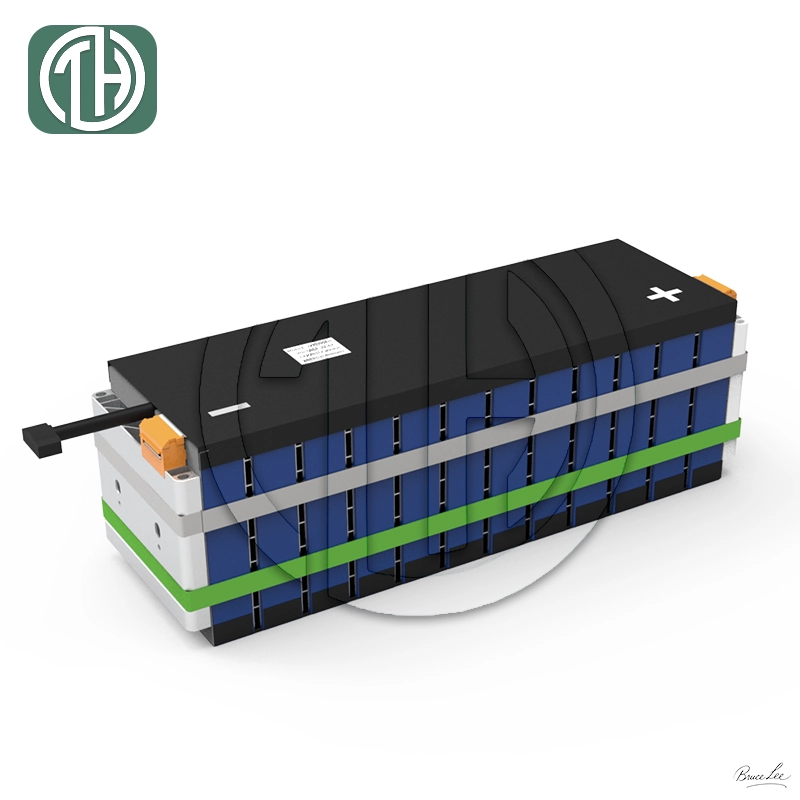

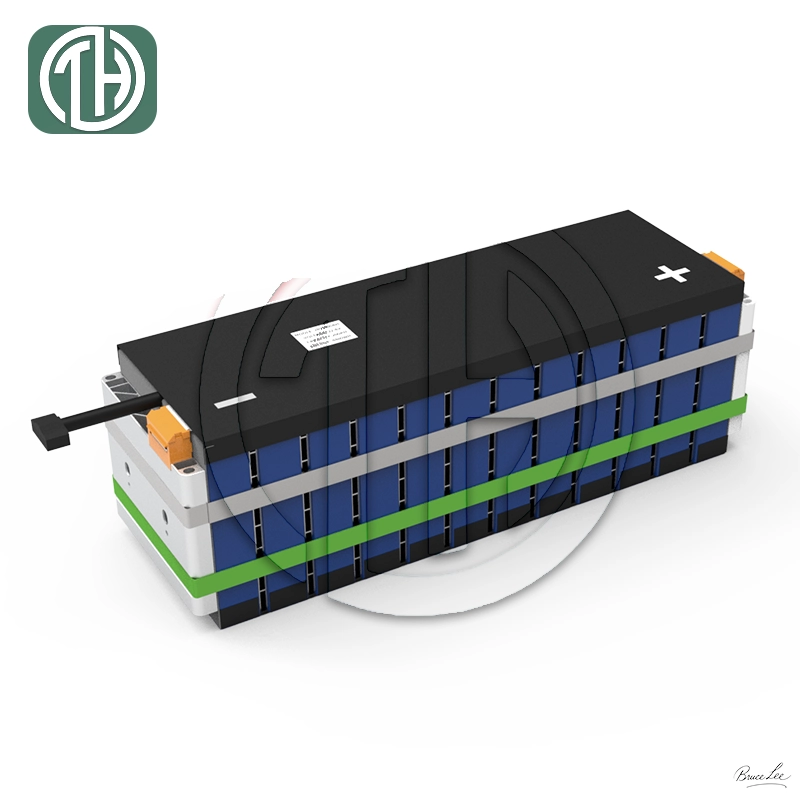

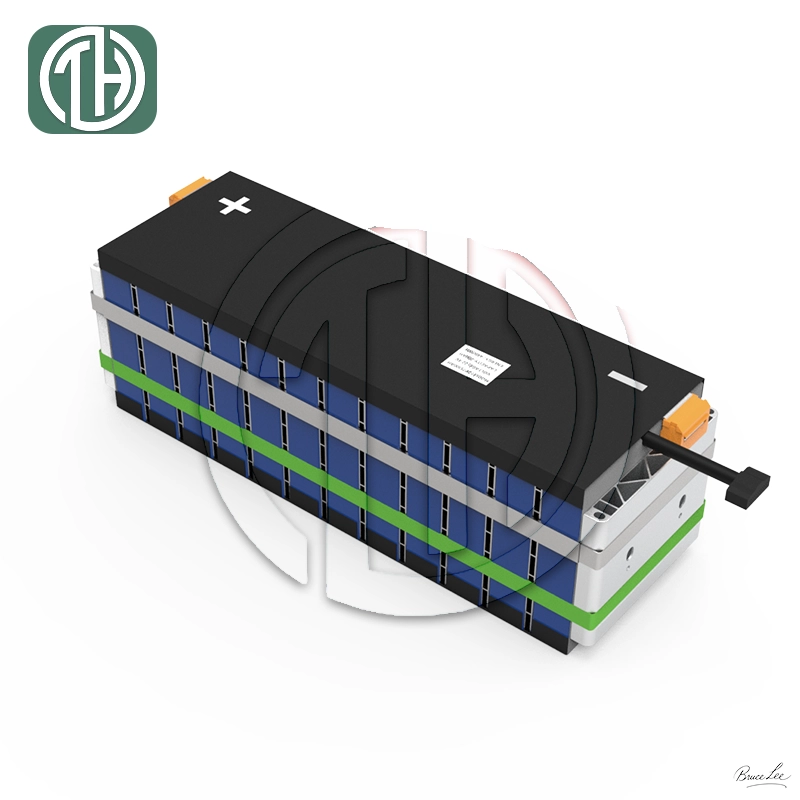

1P12S LFP module with optimized layout for EV and ESS integration.
125Ah capacity delivers ~4.8 kWh at 38.4V nominal voltage.
≥4000 cycles with stable voltage for EV, ESS, UPS, and telecom.
LFP chemistry and reinforced structure ensure thermal stability and reliable operation.

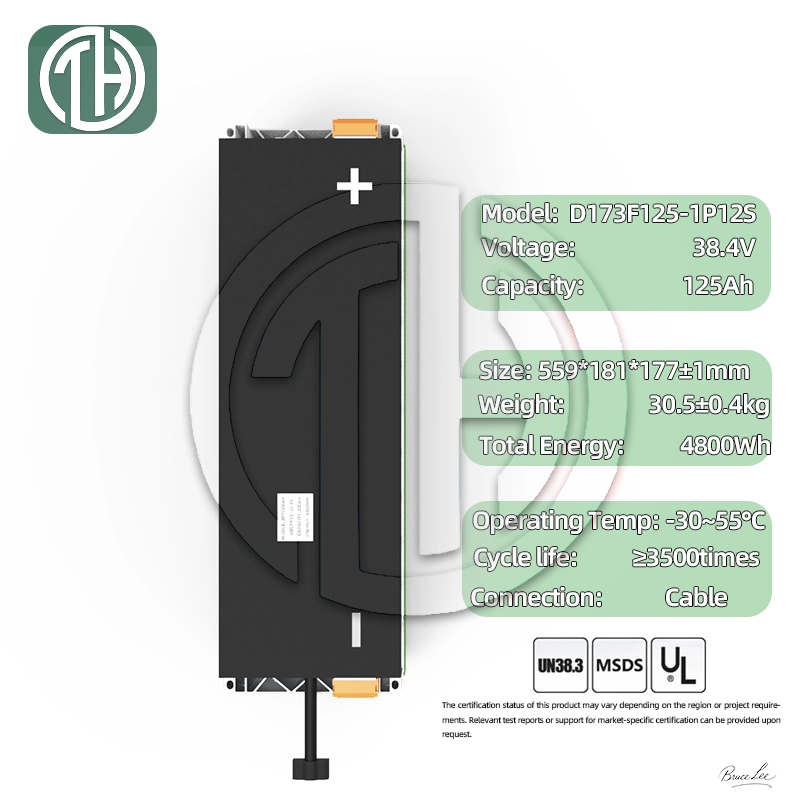

| Item | Parameter | Unit |
|---|---|---|
| Configuration | 1P12S LFP Battery Module | – |
| Nominal Capacity | 125 | Ah |
| Nominal Voltage | 38.4 | V |
| Nominal Energy | ≈4.8 | kWh |
| Voltage Range | 30 – 42 | V |
| Charging Cut-off Voltage | 42 | V |
| Discharging Cut-off Voltage | 30 | V |
| Max Continuous Discharge Current | 100 | A |
| Cycle Life | ≥4000 (25℃) | Cycles |
| Battery Chemistry | LFP (Lithium Iron Phosphate) | – |
| Dimensions (L×W×H) | 559 × 181 × 177 ±1 | mm |
| Weight | Approx 30.5 | kg |
Shows the physical dimensions and structural design of the 2P7S 200Ah LFP battery module.
Due to its unique properties, our SIB battery cell is widely used in fields requiring ultra-high power and long life:
Powers electric forklifts, ensuring high efficiency and long operating hours for logistics and warehouse operations.
Optimized for golf carts, providing long-lasting, dependable power for an enjoyable ride.
The LFP Battery module delivers reliable power for off-grid and solar systems.
Efficient and durable energy storage for homes and businesses.
Dependable energy for continuous telecom operations.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status varies by region, application, and project scope. Products are not supplied as standard with all certifications. Relevant test reports, compliance support, or certification assistance can be provided upon request.
