D173F163E-2P10S LFP Battery Module 163Ah(2P10S)

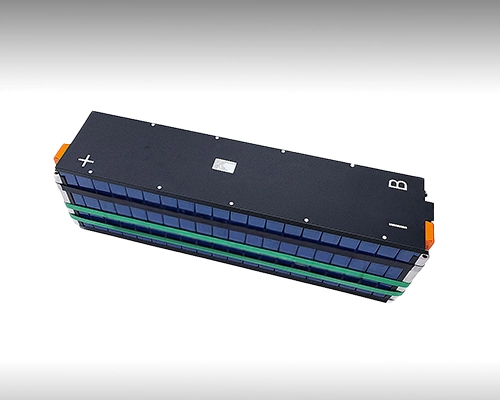

Product View

2P10S 163Ah LFP Key Features

Configuration: 2P10S lithium iron phosphate (LiFePO₄) battery module.
Nominal Voltage: 32.2V (10 × 3.22V nominal per cell).
Capacity: 326Ah (2P × 163Ah).
Energy: 10.5 kWh (32.2V × 326Ah).
Cell Chemistry: LiFePO₄ (LFP) prismatic cells with high safety, long cycle life and thermal stability.
Cycle Life: ≥4000 cycles (typical at 25°C, 1C charge/discharge, ≥80% capacity retention).

GET QUOTE

Standardized Design

2P10S LFP battery module with standardized structure for ESS and low-voltage battery pack integration.

High Energy Capacity

326Ah capacity delivers 10.5 kWh at 32.2V nominal voltage.

Long Cycle Life

≥4000 cycles with stable voltage performance, ideal for ESS, UPS, and industrial energy storage systems.

High Safety

LiFePO₄ chemistry combined with robust mechanical design ensures excellent thermal stability and operational safety.

Technical Specifications

Item	2P10S	1P12S	1P20S	1P24S	Unit
Configuration	2P10S	1P12S	1P20S	1P24S	–
Cell Chemistry	LiFePO₄ (LFP)				–
Nominal Voltage	32.2	38.4	64.4	76.8	V
Nominal Capacity	326	163	163	163	Ah
Nominal Energy	10.5	6.3	10.5	12.6	kWh
Voltage Range	25.0 – 36.5	30.0 – 43.8	50.0 – 73.0	60.0 – 87.6	V
Charging Cut-off Voltage	36.5	43.8	73.0	87.6	V
Discharging Cut-off Voltage	25.0	30.0	50.0	60.0	V
Max Continuous Charge Current	163	163	163	163	A
Max Continuous Discharge Current	163	163	163	163	A
Cycle Life	≥4000 (25℃, 1C/1C, ≥80% SOH)				Cycles
Recommended SOC	5% – 95%				–
Operating Temperature	Charge / Discharge: -30 ~ 60				℃
Storage Temperature	-20 ~ 45				℃
BMS	Not Included (External BMS Required)				–

Dimensions & Structure

Shows the physical dimensions and structural design of the 2P7S 200Ah LFP battery module.

Applications

Due to its unique properties, our LFP battery cell is widely used in fields requiring ultra-high power and long life:

Electric Buses & Heavy-Duty Trucks

Provides robust power for electric motorcycles, enhancing speed and range for urban commuting and adventure.

Off-grid-Energy-Storage

The LFP module delivers reliable power for off-grid and solar systems.

Residential & C&I Energy Storage Systems

Efficient and durable energy storage for homes and businesses.

Telecom-Backup-Power

Dependable energy for continuous telecom operations.

Product Certifications

Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.

*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
