1P8S LFP battery module with standardized structure for ESS, UPS, and industrial energy storage integration.
230Ah capacity delivers 5.88 kWh at 25.6V nominal voltage.
≥4000 cycles with stable voltage performance, ideal for ESS, UPS, and industrial energy storage applications.
LiFePO₄ chemistry combined with robust mechanical design ensures excellent thermal stability and operational safety.

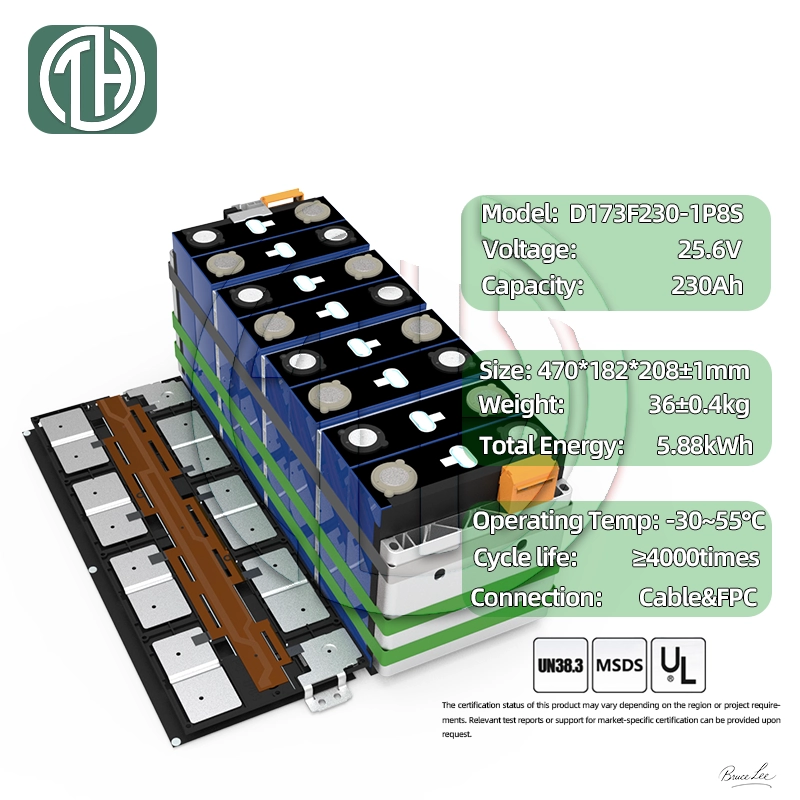

| Item | Parameter | Unit |
|---|---|---|
| Configuration | 1P8S LFP Battery Module | – |
| Nominal Capacity | 230 | Ah |
| Nominal Voltage | 25.6 | V |
| Nominal Energy | 5.88 | kWh |
| Voltage Range | 20.0 – 28.8 | V |
| Charging Cut-off Voltage | 28.8 | V |
| Discharging Cut-off Voltage | 20.0 | V |
| Max Continuous Charge Current | 230 | A |
| Max Continuous Discharge Current | 230 | A |
| Cycle Life | ≥4000 (25℃, 1C/1C, ≥80% capacity retention) | Cycles |
| Battery Chemistry | LFP (Lithium Iron Phosphate) | – |
| Dimensions (L×W×H) | 470 × 182 × 208 | mm |
| Weight | 36.2 | kg |

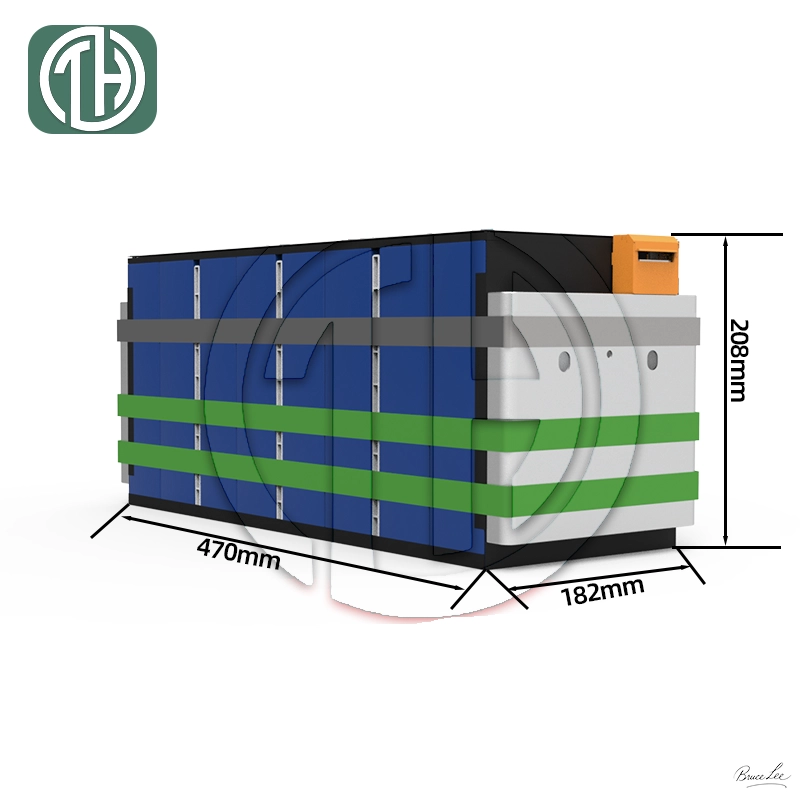

Shows the physical dimensions and structural design of the 1P8S 230Ah LFP battery module.
Due to its unique properties, our LFP battery cell is widely used in fields requiring ultra-high power and long life:
The LFP Battery module delivers reliable power for off-grid and solar systems.
Efficient and durable energy storage for homes and businesses.
Dependable energy for continuous telecom operations.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
