12S1P NMC configuration with a compact and robust structure, enabling flexible integration into high-voltage battery systems.
147Ah capacity delivers high energy output and approximately 6.5 kWh of energy in a single module.
Designed to provide stable voltage output and long cycle life, suitable for electric vehicles, electric buses, and energy storage applications.
Robust mechanical structure combined with NMC chemistry ensures safe and reliable operation under demanding operating conditions.
| Item | Parameter | Unit |
|---|---|---|
| Configuration | 12S1P NMC Battery Module | – |
| Nominal Capacity | 147 | Ah |
| Nominal Voltage | 44.4 | V |
| Nominal Energy | ≈6500 | Wh |
| Voltage Range | 33.6 – 52.2 | V |
| Charging Cut-off Voltage | 52.2 | V |
| Discharging Cut-off Voltage | 33.6 | V |
| Max Continuous Discharge Current | 1C | A |
| Cycle Life | ≥1500 (25℃) | Cycles |
| Battery Chemistry | NMC (Ternary Lithium) | – |

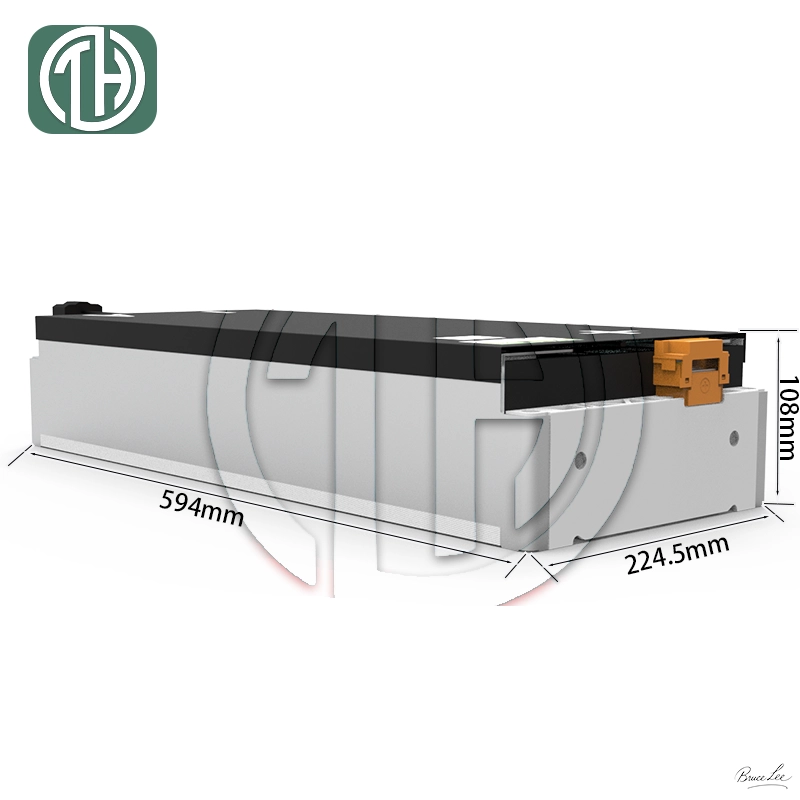

Shows the physical dimensions and structural design of the 1P12S147Ah NMC battery module.
The label shown on the battery cell is for visual demonstration only. The actual product will usually not have this label, only the essential numbering or identification.
Due to its unique properties, our 117Ah NMC battery cell is widely used in fields requiring ultra-high power and long life:
Our battery cells are used in electric vehicles to provide reliable, high-performance power for efficient transportation.
Provides robust power for electric motorcycles, enhancing speed and range for urban commuting and adventure.
Powers electric forklifts, ensuring high efficiency and long operating hours for logistics and warehouse operations.
Designed for electric boats, offering silent and powerful propulsion for marine applications.
Optimized for golf carts, providing long-lasting, dependable power for an enjoyable ride.
Powers construction vehicles, delivering reliable and durable energy for heavy-duty work environments.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
