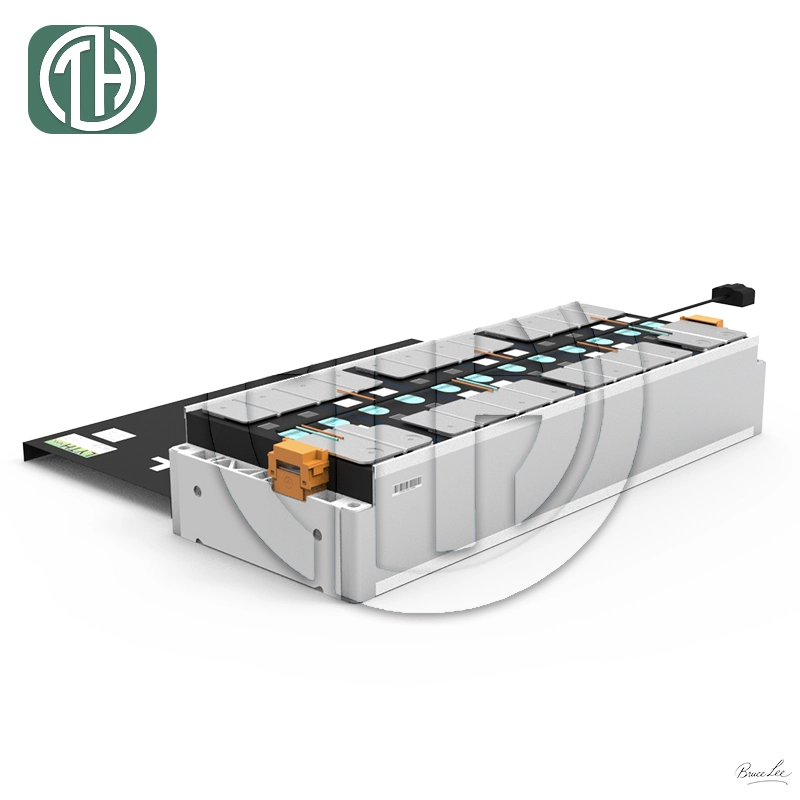

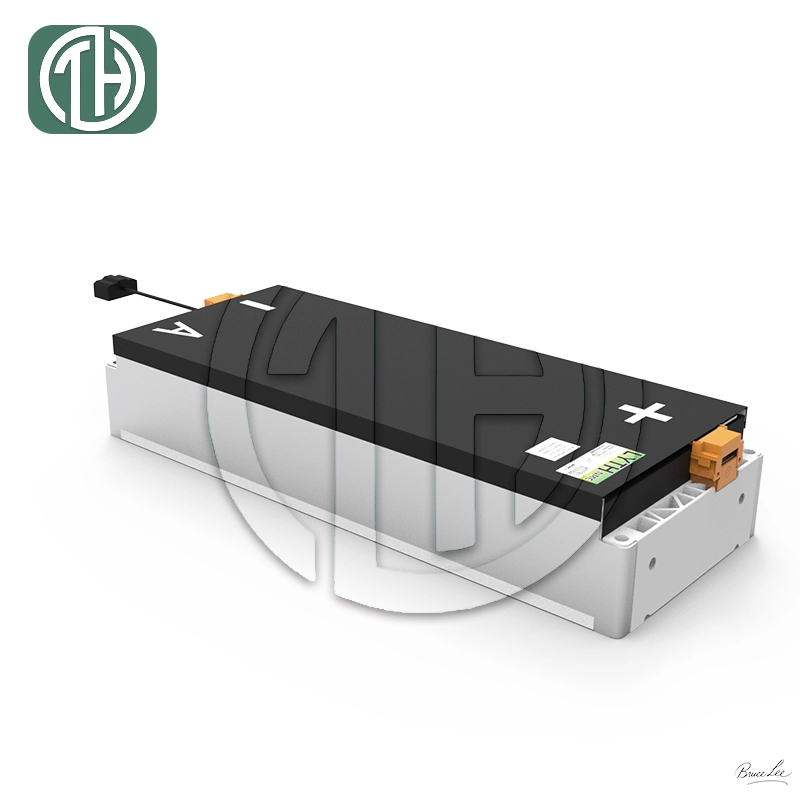

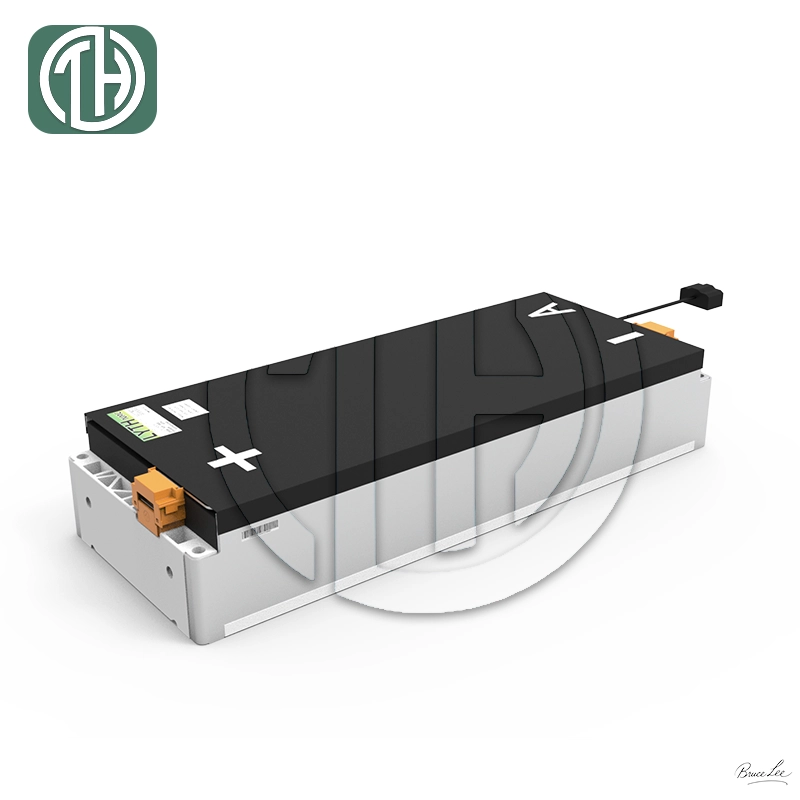

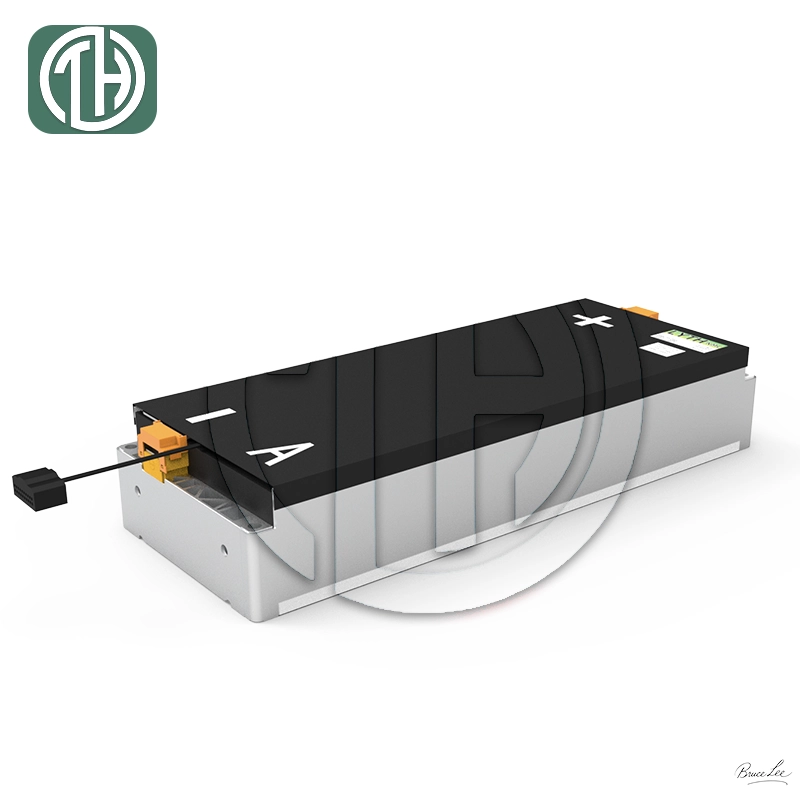

2P6S NMC configuration with a compact and standardized structure, enabling flexible integration into various battery systems.
294Ah capacity delivers approximately 6.5 kWh of energy while maintaining a compact and lightweight module design.
Designed to provide stable voltage output and long cycle life, suitable for demanding EV and energy storage applications.
Robust mechanical structure combined with NMC chemistry ensures safe and reliable operation under a wide range of working conditions.

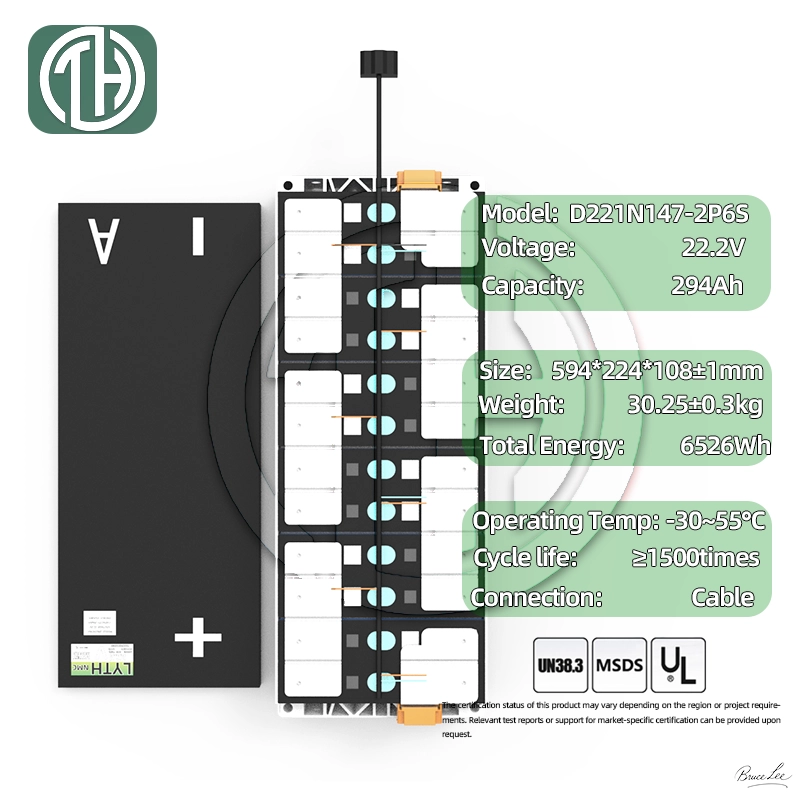

| Item | Parameter | Unit |
|---|---|---|
| Configuration | 2P6S NMC Battery Module | – |
| Nominal Capacity | 294 | Ah |
| Nominal Voltage | 22.2 | V |
| Nominal Energy | ≈6500 | Wh |
| Voltage Range | 16.8 – 25.2 | V |
| Charging Cut-off Voltage | 25.2 | V |
| Discharging Cut-off Voltage | 16.8 | V |
| Max Continuous Discharge Current | 1C | A |
| Cycle Life | ≥1500 (25℃) | Cycles |
| Battery Chemistry | NMC (Ternary Lithium) | – |
| Dimensions | 594 × 224.5 × 108 | mm |
| Weight | 30.25 | kg |

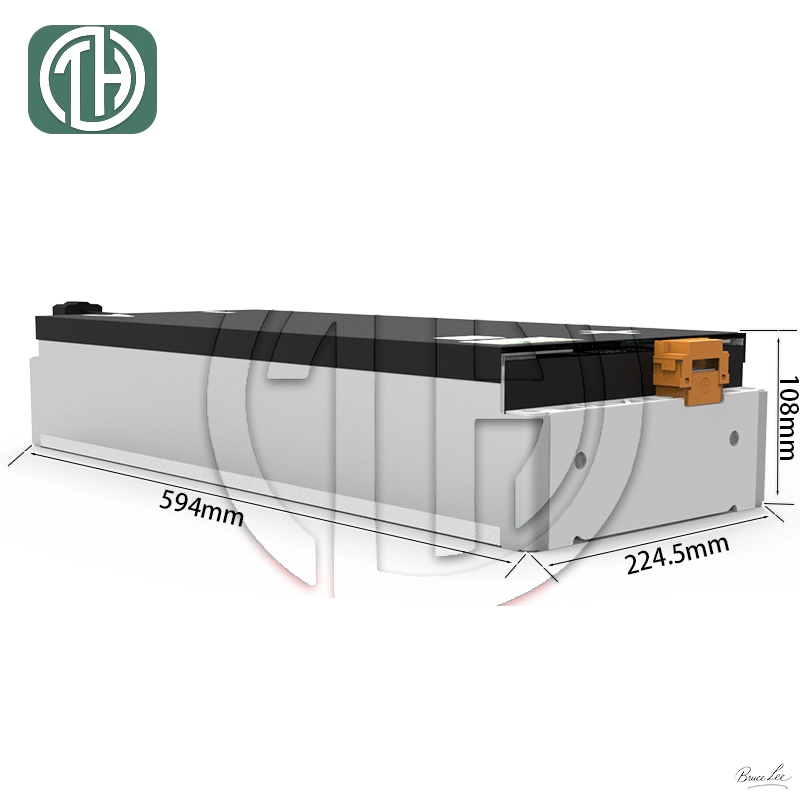

Shows the physical dimensions and structural design of the 2P6S147Ah NMC battery module.
The label shown on the battery cell is for visual demonstration only. The actual product will usually not have this label, only the essential numbering or identification.
Due to its unique properties, our 117Ah NMC battery cell is widely used in fields requiring ultra-high power and long life:
Our battery cells are used in electric vehicles to provide reliable, high-performance power for efficient transportation.
Provides robust power for electric motorcycles, enhancing speed and range for urban commuting and adventure.
Powers electric forklifts, ensuring high efficiency and long operating hours for logistics and warehouse operations.
Designed for electric boats, offering silent and powerful propulsion for marine applications.
Optimized for golf carts, providing long-lasting, dependable power for an enjoyable ride.
Powers construction vehicles, delivering reliable and durable energy for heavy-duty work environments.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
