2P6S NMC configuration with MEB590 dimensions for seamless system integration.
338Ah capacity delivers high energy output in a compact module format.
Provides consistent voltage output and long-term reliability for EV and industrial power applications.
Robust structure and NMC chemistry ensure safe and reliable performance.
| Item | Parameter | Unit |
|---|---|---|
| Configuration | 2P6S NMC Battery Module (L221N169) | – |
| Nominal Capacity | 338 | Ah |
| Nominal Voltage | 22.2 | V |
| Nominal Energy | ≈7.5 | kWh |
| Voltage Range | 18.0 – 26.4 | V |
| Charging Cut-off Voltage | 26.4 | V |
| Discharging Cut-off Voltage | 18.0 | V |
| Max Continuous Discharge Current | 1C (≈338 A) | A |
| Cycle Life | ≥4000 (25℃, 80% SOH) | Cycles |
| Battery Chemistry | NMC (Ternary Lithium) | – |
| Dimensions (L×W×H) | 590 × 225 × 116 | mm |
| Weight | 33 ± 0.5 | kg |
| Applications | EV power module, industrial power | – |

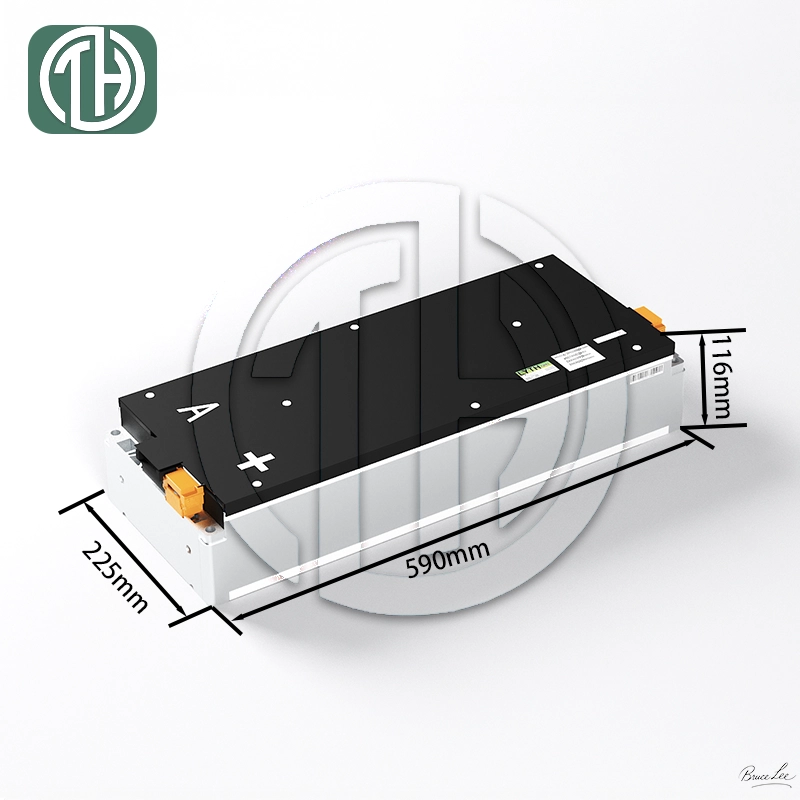

Physical dimensions and structural design of the 2P6S 22.2V 338Ah NMC battery module (MEB590 standard).
The label shown on the battery cell is for visual demonstration only. The actual product typically includes only essential numbering or identification.
Due to its unique properties, our 117Ah NMC battery cell is widely used in fields requiring ultra-high power and long life:
Our battery cells are used in electric vehicles to provide reliable, high-performance power for efficient transportation.
Provides robust power for electric motorcycles, enhancing speed and range for urban commuting and adventure.
Powers electric forklifts, ensuring high efficiency and long operating hours for logistics and warehouse operations.
Designed for electric boats, offering silent and powerful propulsion for marine applications.
Optimized for golf carts, providing long-lasting, dependable power for an enjoyable ride.
Powers construction vehicles, delivering reliable and durable energy for heavy-duty work environments.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
