EVE LF50F provides 50Ah capacity in a robust LiFePO₄ format, ideal for high-demand energy storage applications.
Energy density of ~175 Wh/kg delivers efficient and compact energy storage performance.
Up to ~4000 charge-discharge cycles (25°C, 100% DOD) for durable, long-lasting operation.
LiFePO₄ chemistry ensures low internal resistance, high thermal stability, and reliable, safe operation.
| Item | Parameter | Test / Note |
|---|---|---|
| Nominal Capacity | 50 Ah | Typical @0.5C discharge |
| Nominal Voltage | 3.2 V | Standard LiFePO₄ cell nominal voltage |
| Operating Voltage | 2.5 V – 3.65 V | Working voltage range |
| Internal Impedance | ≤ 2.0 mΩ (AC, 1 kHz) | Typical fresh cell @25 ℃ |
| Standard Charge/Discharge Current | 0.5C / 0.5C | Standard operating current |
| Max Continuous Charge/Discharge | 1C / 1C (Pulse up to ~1.2C) | Maximum sustained current |
| Cycle Life | ≥ 1500 cycles @80% SOH | Typical @0.5C/0.5C, 25 ℃ |
| Dimensions (L × T × H) | 148.3 × 26.7 × 129.8 mm | Typical prismatic cell size |
| Weight | ≈ 1035 ± 100 g | Approximate value |
| Operating Temperature (Charge) | 0 ℃ to +55 ℃ | Standard charging range |
| Operating Temperature (Discharge) | ‐20 ℃ to +55 ℃ | Standard discharge range |
Note: Data shown are derived from public supplier documentation and may vary by batch, temperature, or usage. For engineering design or certification, please refer to the official EVE datasheet or contract-agreed technical documentation. :contentReference[oaicite:7]{index=7}

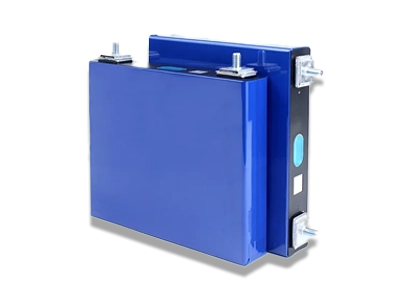

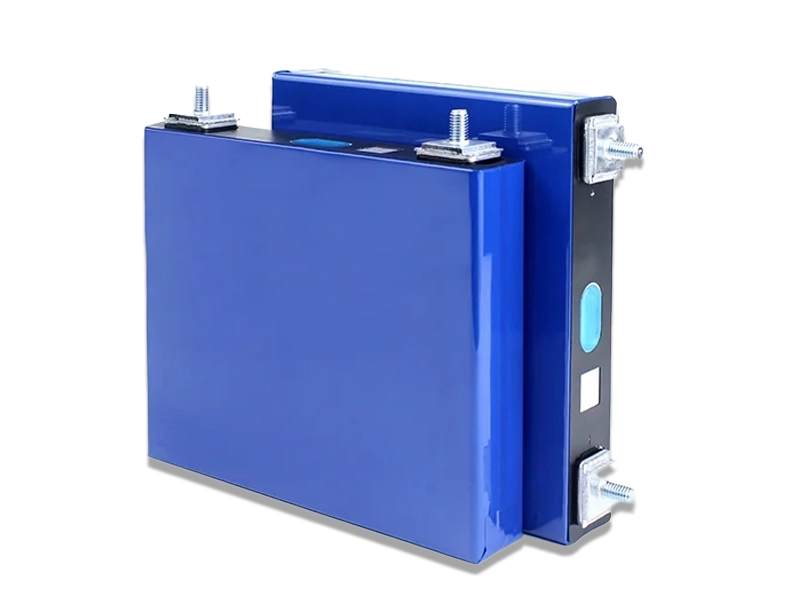

Available with welding or nut terminals to suit various installation needs, with an interactive 3D model view.
The label shown on the battery cell is for visual demonstration only. The actual product will usually not have this label, only the essential numbering or identification.
Due to its unique properties, our LFP battery cell is widely used in fields requiring ultra-high power and long life:
Meets the fast charge and discharge needs of buses for rapid energy replenishment.
Used for grid peak shaving and frequency regulation to enhance stability.
Efficiently integrates wind and solar energy to ensure a stable power supply.
Provides efficient energy for automated equipment and mobile robots.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
