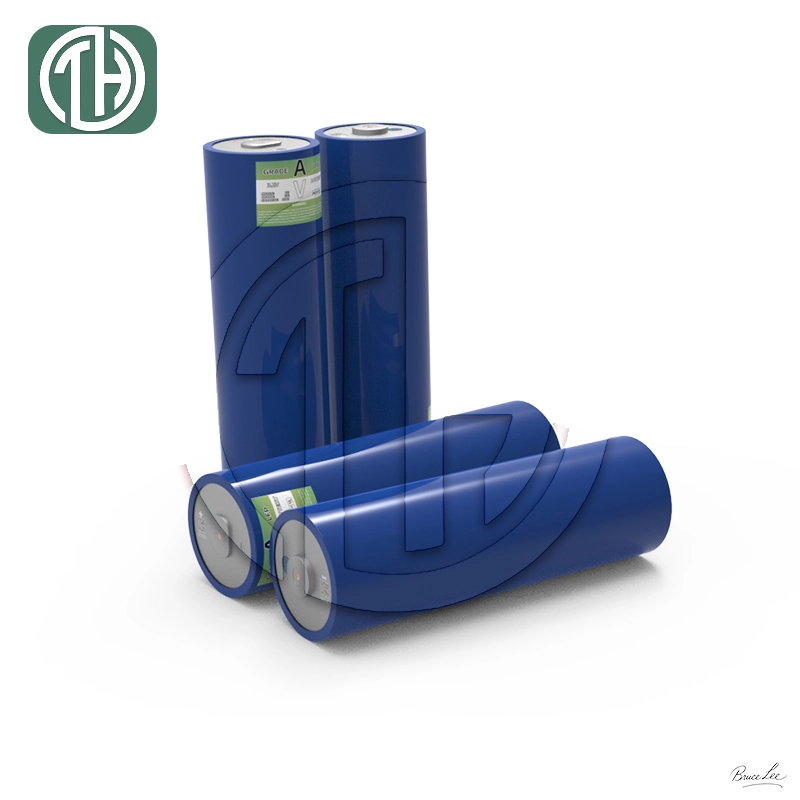

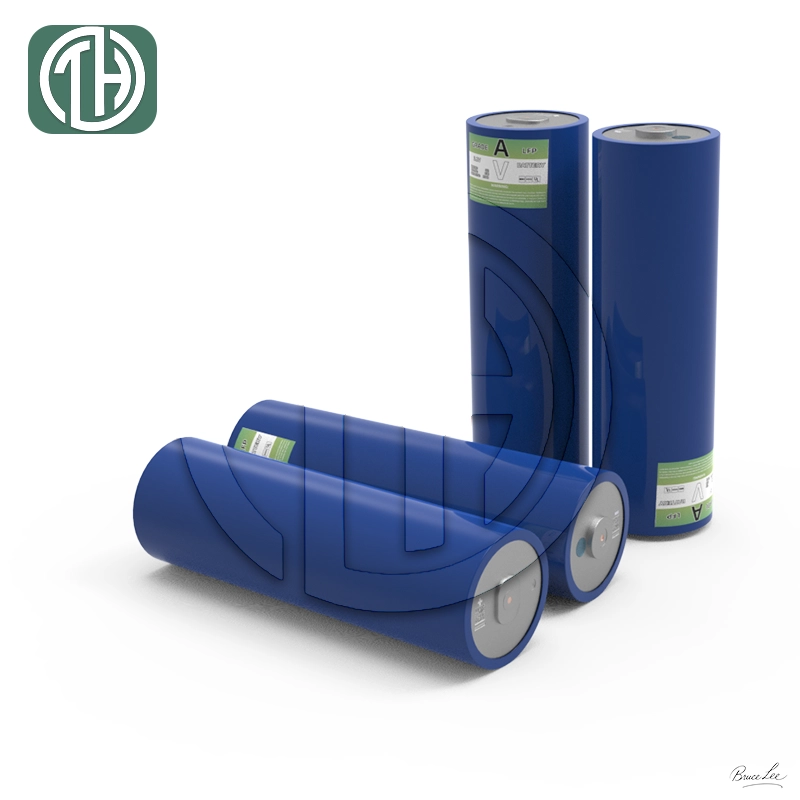

EVE C40 provides 20Ah capacity in a robust cylindrical LiFePO₄ format.
Energy density of ~174 Wh/kg delivers efficient energy storage in a compact form.
Up to ~4000 charge-discharge cycles for durable, long-lasting performance.
LiFePO₄ chemistry ensures low internal resistance, high thermal stability, and reliable operation.
| Item | Parameter | Test / Note |
|---|---|---|
| Nominal Capacity | 20Ah | Typical @0.5C discharge |
| Nominal Voltage | 3.2V | Standard LiFePO₄ cell voltage |
| Internal Resistance | ≤2–3mΩ (AC) / ≤6–8mΩ (DC) | Fresh-cell data @25°C |
| Max Continuous Discharge Current | ≈60A (≈3C) | Continuous discharge capability |
| Operating Temperature (Charge) | 0°C to +55°C | Standard charge temp range |
| Operating Temperature (Discharge) | -20°C to +60°C | Standard discharge temp range |
| Cycle Life | ≥4,000 cycles @100% DoD (25°C) | ≥1,500 cycles @100% DoD (45°C) |

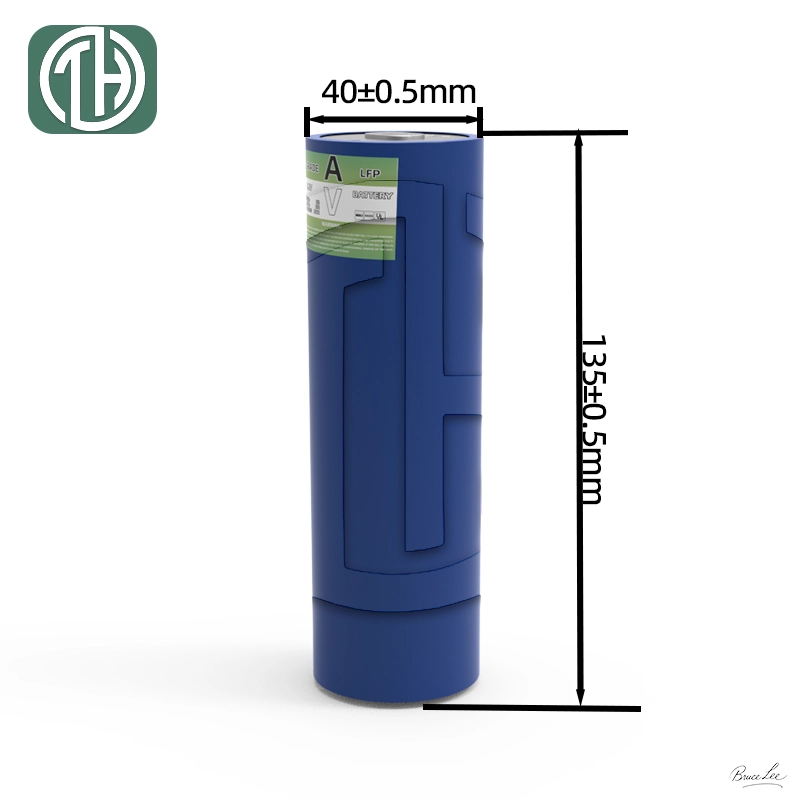

| Dimensions (Diameter × Height) | ≈40.0mm × 135.0mm | Typical size for IFR40135 |
| Weight | ≈450g | Approximate value |
Note: Data shown are derived from public supplier documentation and may vary by batch, temperature or usage. For engineering design or certification, please refer to the official EVE datasheet or contract-agreed technical documentation.
Available with welding or nut terminals to suit various installation needs, with an interactive 3D model view.
The label shown on the battery cell is for visual demonstration only. The actual product will usually not have this label, only the essential numbering or identification.
Due to its unique properties, our NMC battery cell is widely used in fields requiring high energy density and strong power output:
Delivers the high energy density for maximum flight endurance and the high C-rate power for demanding drone payloads.
Our cells meet both BEV demands for maximum range (high energy density) and HEV needs for instant power and regeneration (high C-rate).
Powered by superior energy density, our cells deliver greater power and extended range for high-performance electric yachts and hydrofoils.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
