Compact prismatic NMC lithium-ion cell with 3.66V nominal voltage, optimized for power-oriented EV and industrial applications.
Supports high-rate charge and discharge with strong output capability, suitable for dynamic load and power-demanding systems.
Integrated safety structure including pressure relief and stable NMC chemistry ensures dependable operation under demanding conditions.
Low internal resistance (≤0.4 mΩ) and consistent cell performance enable efficient module and pack integration.
| Item | Parameter | Remarks |
|---|---|---|
| Rated Capacity | 15 Ah | Standard Discharge |
| Rated Voltage | 3.66 V | NMC Typical |
| Rated Energy | 54.9 Wh | Standard Discharge |
| Cell Weight | ≈0.43 kg | Typical |
| Mass Energy Density | ≈128 Wh/kg | Standard Discharge |
| Cell Dimensions | 148.7 × 78.8 × 17.7 mm | Prismatic Cell (L×W×H) |
| Alternating Current Resistance (ACR) | ≤0.4 mΩ | 40% SOC, Room Temp, AC Impedance, 1000 Hz |
| Charging Temperature | 0~55°C | / |
| Discharging Temperature | -20~55°C | / |
| Storage Temperature | -20~45°C | / |
| Voltage Range | 2.8~4.20 V | Standard Operating Window |
Note: The above specifications are based on public datasheet references and typical test conditions. For module or pack design, please refer to the official EVE M42 datasheet or supplier-confirmed technical documentation to verify operating limits and current ratings.

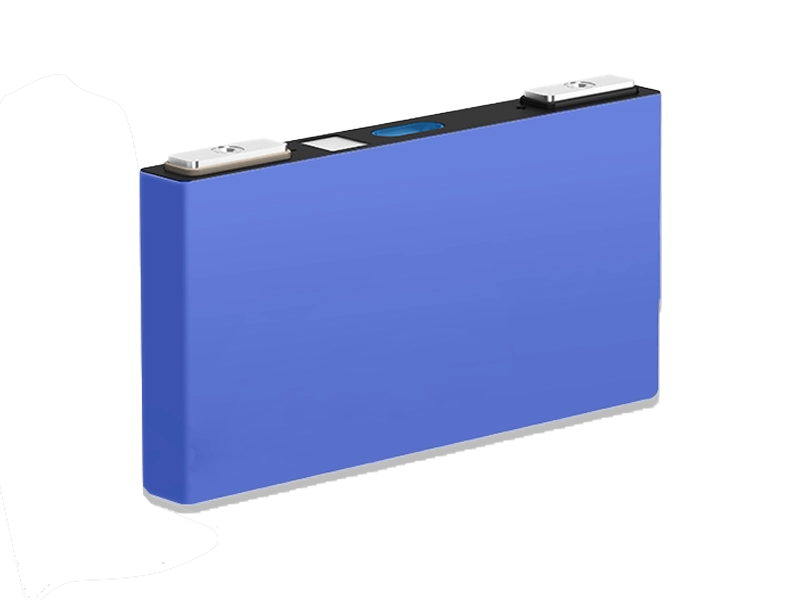

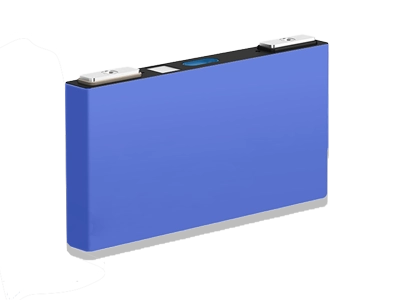

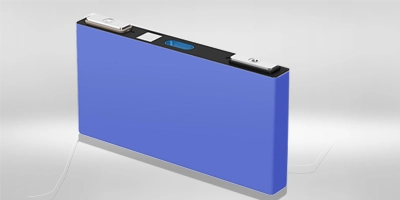

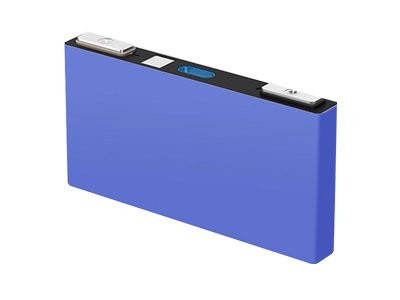

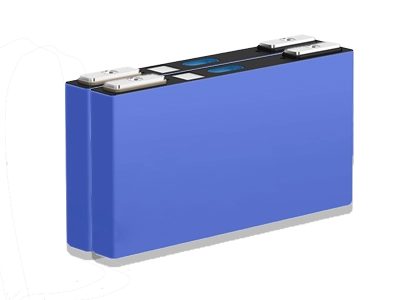

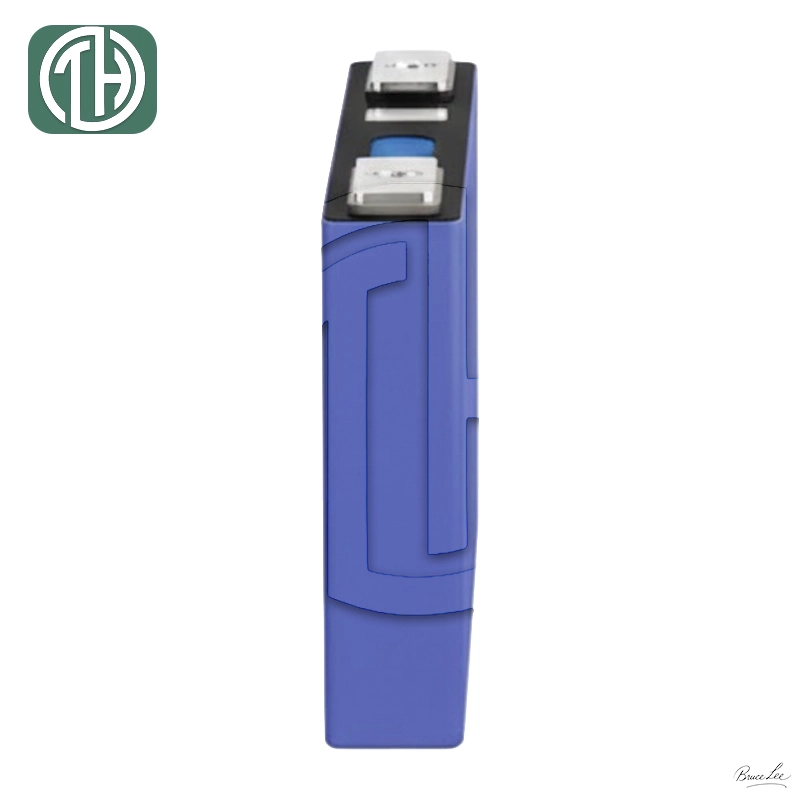

Compact prismatic cell design with standardized terminals, suitable for module and pack integration. Interactive 3D model view available for structural reference.
The label shown on the battery cell is for visual demonstration only. The actual product may only include essential identification markings.
Due to its high energy density and superior power performance, our NMC battery cells is widely used in fields requiring lightweight design and robust output.
Delivers longer range and faster acceleration thanks to its lightweight and high-energy design.
Maximizes flight duration and payload with a superior energy-to-weight ratio.
Compact size and high power output enable agile movement in limited spaces.
Provides strong burst power in a lightweight form to minimize user fatigue.
Offers maximum energy capacity in the smallest possible footprint.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
