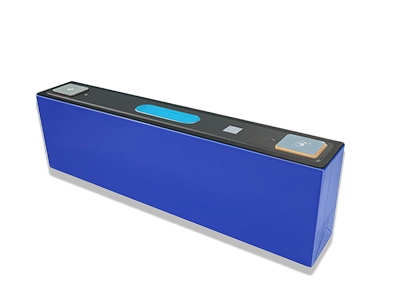

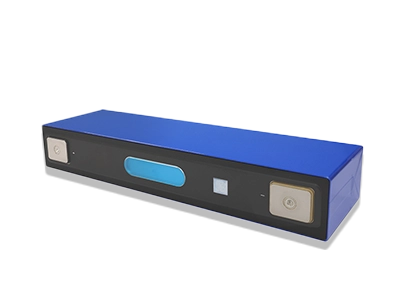

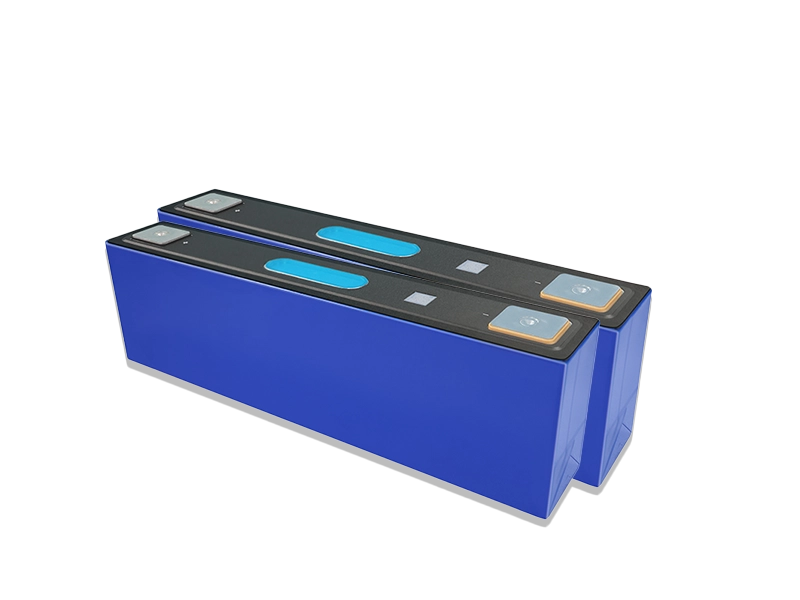

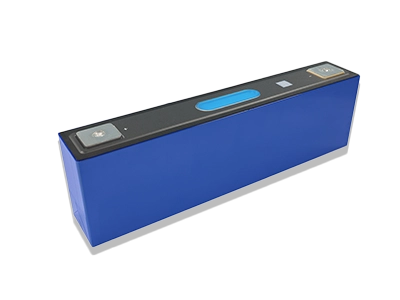

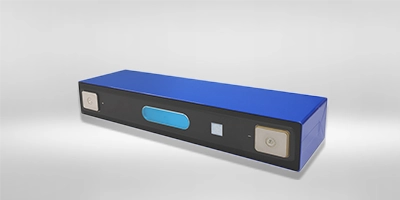

High-capacity prismatic NMC lithium-ion cell with ~3.7V nominal voltage, engineered for EV and industrial power applications.
Supports substantial charge and discharge currents, providing stable performance under dynamic loads and demanding power requirements.
Incorporates pressure relief, short-circuit protection, and stable NMC chemistry to ensure reliable and safe operation.
Consistent performance and low internal resistance enable seamless module and pack integration for automotive and industrial systems.
| Item | Parameter | Remarks |
|---|---|---|
| Rated Capacity | 188 Ah | Standard Discharge |
| Rated Voltage | 3.7 V | NMC Typical |
| Rated Energy | ≈696 Wh | Standard Discharge |
| Cell Weight | ≈4.3 kg | Typical |
| Mass Energy Density | ≈162 Wh/kg | Standard Discharge |

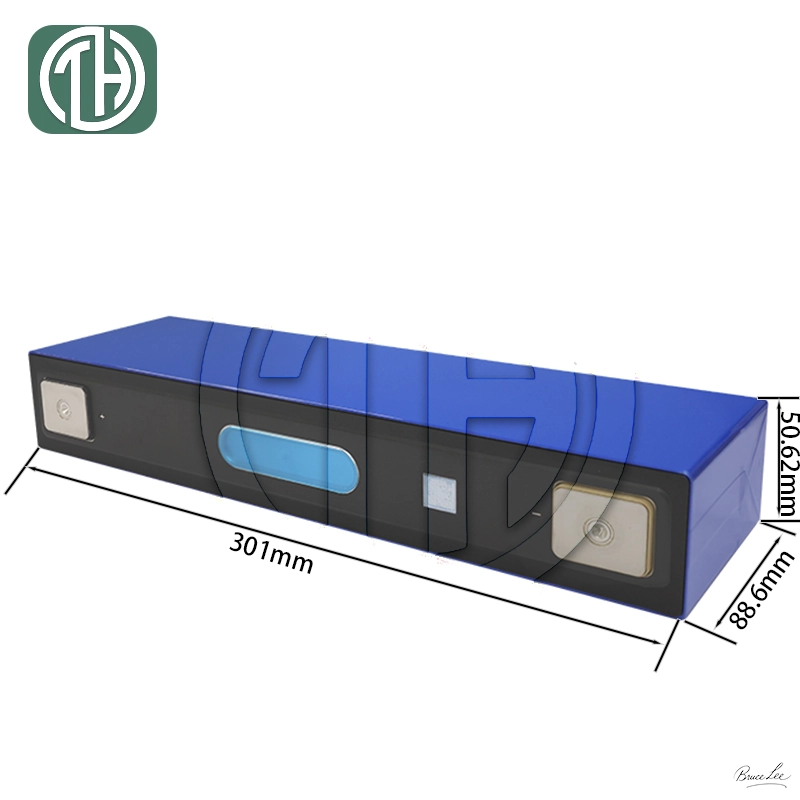

| Cell Dimensions | 301.3 × 88.6 × 50.6 mm | Prismatic Cell (L×W×H) |
| Alternating Current Resistance (ACR) | ≤0.5 mΩ | 40% SOC, Room Temp, AC Impedance, 1000 Hz |
| Charging Temperature | 0~55°C | / |
| Discharging Temperature | -20~55°C | / |
| Storage Temperature | -20~45°C | / |
| Voltage Range | 2.8~4.20 V | Standard Operating Window |
Note: The above specifications are based on public datasheet references and typical test conditions. For module or pack design, please refer to the official M12 datasheet or supplier-confirmed technical documentation to verify operating limits and current ratings.

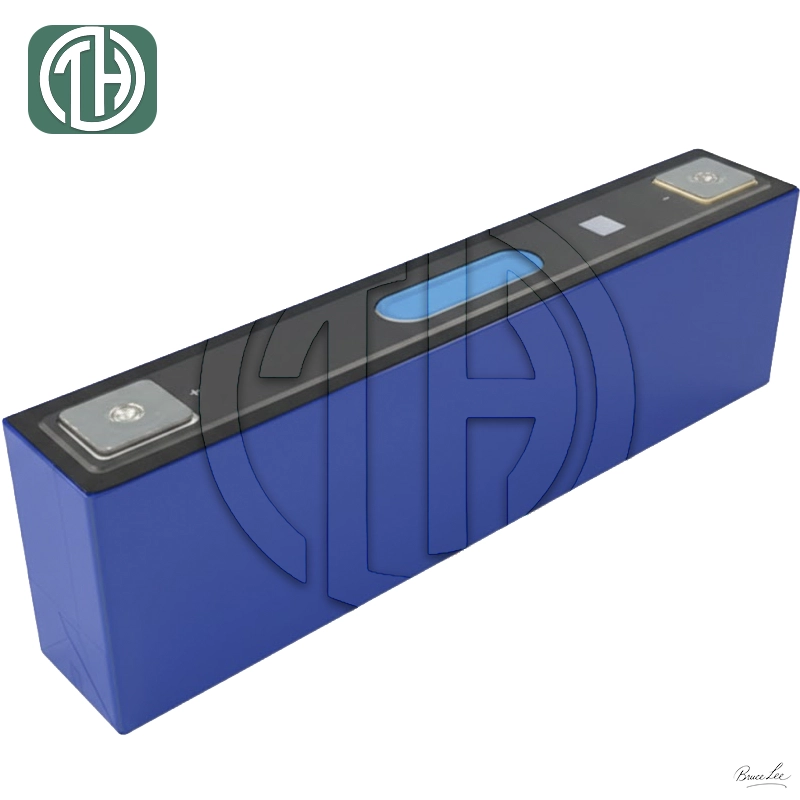

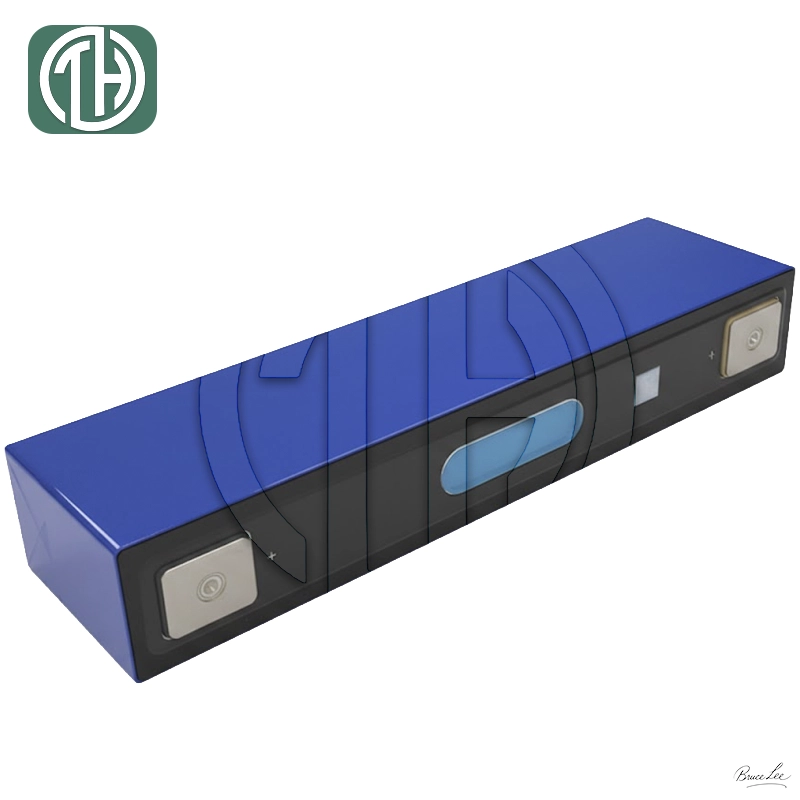

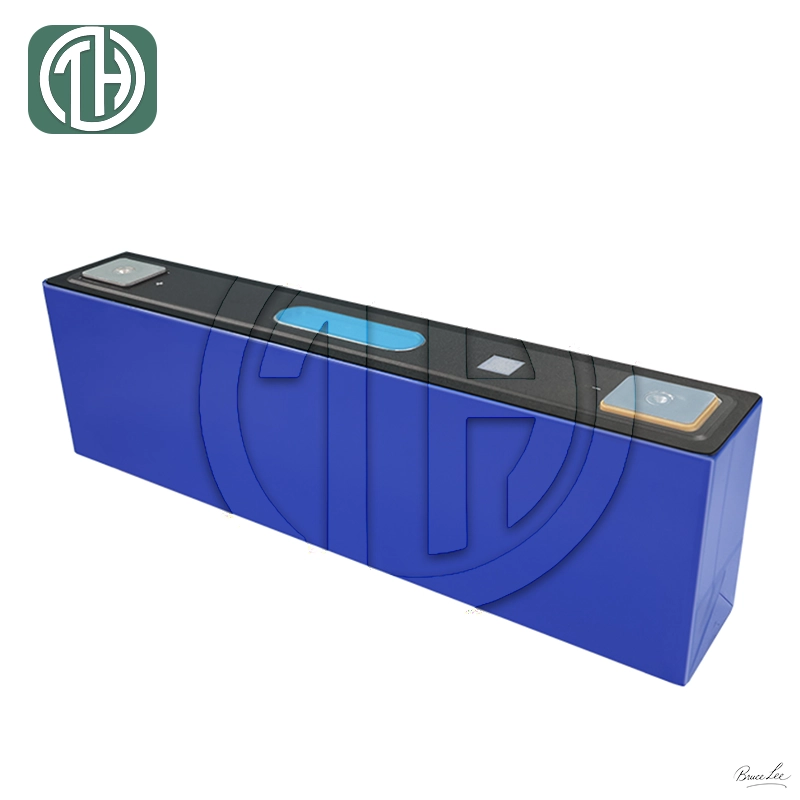

Large-capacity prismatic cell with standardized terminals, optimized for EV and industrial module/pack integration.
The label shown on the battery cell is for visual demonstration only. The actual product may only include essential identification markings.
Due to its unique properties, our NMC battery cell is widely used in fields requiring high energy density and strong power output:
Delivers the high energy density for maximum flight endurance and the high C-rate power for demanding drone payloads.
Our cells meet both BEV demands for maximum range (high energy density) and HEV needs for instant power and regeneration (high C-rate).
Meets the fast charge and discharge needs of buses for rapid energy replenishment.
Powered by superior energy density, our cells deliver greater power and extended range for high-performance electric yachts and hydrofoils.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
