High-capacity prismatic LiFePO₄ cell with 3.2V nominal voltage, optimized for energy storage systems and industrial power applications.
Supports stable charge and discharge currents, ensuring dependable performance under dynamic load and high-demand operational conditions.
Integrated pressure relief and short-circuit protection with stable LiFePO₄ chemistry provide safe and reliable operation in all environments.
Low internal resistance and consistent cell performance enable smooth module and pack assembly for ESS and industrial systems.
| Item | Parameter | Remarks |
|---|---|---|
| Rated Capacity | 106 Ah | Standard Discharge |
| Rated Voltage | 3.2 V | LiFePO₄ Typical |
| Rated Energy | ≈339 Wh | Standard Discharge |
| Cell Weight | ≈1.935 kg | Typical |
| Mass Energy Density | ≈175 Wh/kg | Standard Discharge |
| Cell Dimensions | 147.3 × 52.3 × 117.2 mm | Prismatic Cell (L×W×H) |
| Alternating Current Resistance (ACR) | ≈0.2–0.4 mΩ | 30% SOC, Room Temp, AC Impedance, 1000 Hz |
| Charging Temperature | 0~55°C | / |
| Discharging Temperature | -30~60°C | / |
| Storage Temperature | -20~45°C | / |
| Voltage Range | 2.0~3.65 V | Standard Operating Window |
Note: The above specifications are based on public datasheet references and typical test conditions. For module or pack design, please refer to the official SVOLT 106 datasheet or supplier-confirmed technical documentation to verify operating limits and current ratings.

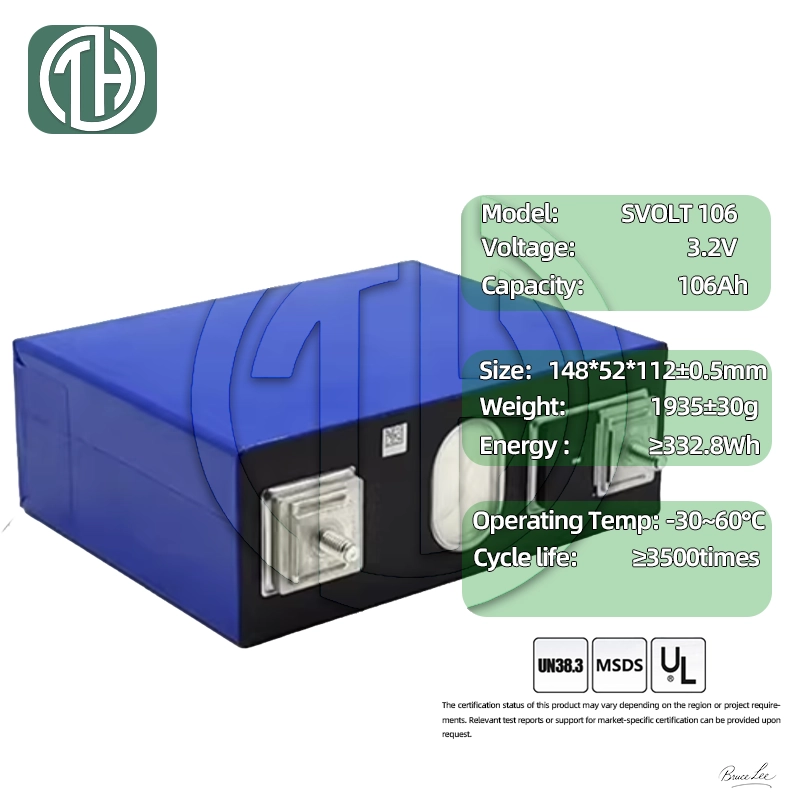

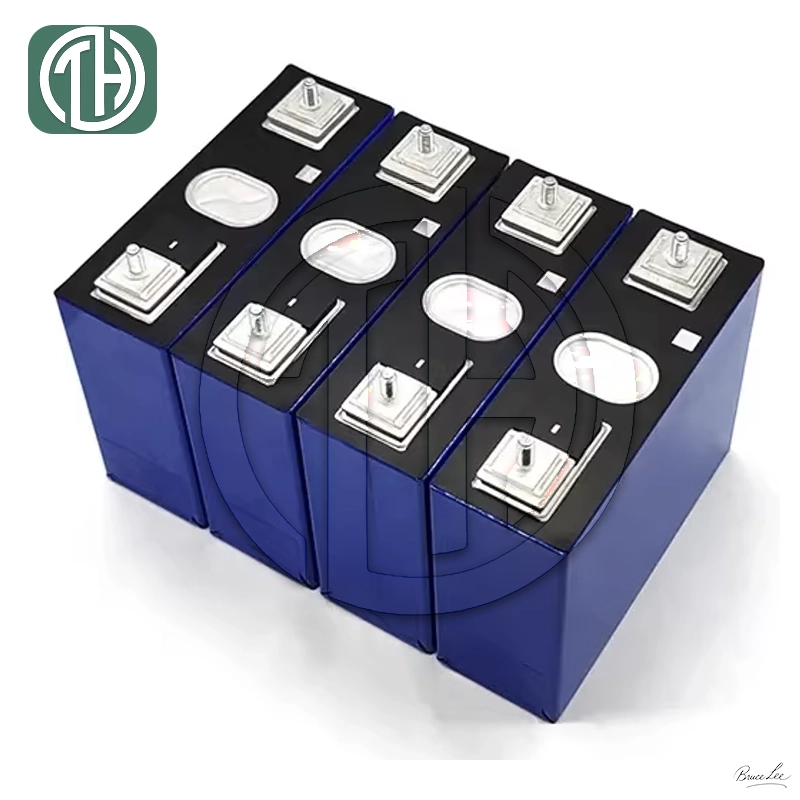

High-capacity 106Ah prismatic LiFePO₄ cell with standardized terminals, designed for energy storage systems and industrial module/pack integration.
The label shown on the battery cell is for visual demonstration only. The actual product may only include essential identification markings.
Due to its unique properties, our LFP battery cell is widely used in fields requiring ultra-high power and long life:
Meets the fast charge and discharge needs of buses for rapid energy replenishment.
Used for grid peak shaving and frequency regulation to enhance stability.
Efficiently integrates wind and solar energy to ensure a stable power supply.
Provides efficient energy for automated equipment and mobile robots.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
