High-energy pouch cell with a 72Ah nominal capacity, providing flexible integration.
Reliable lifespan of over 2000 cycles at 80 percent depth of discharge, maximizing ROI.
Utilizes LiFePO4 chemistry for superior thermal stability and inherent safety.
Optimized for high-rate charge and discharge, perfect for EV and ESS applications.

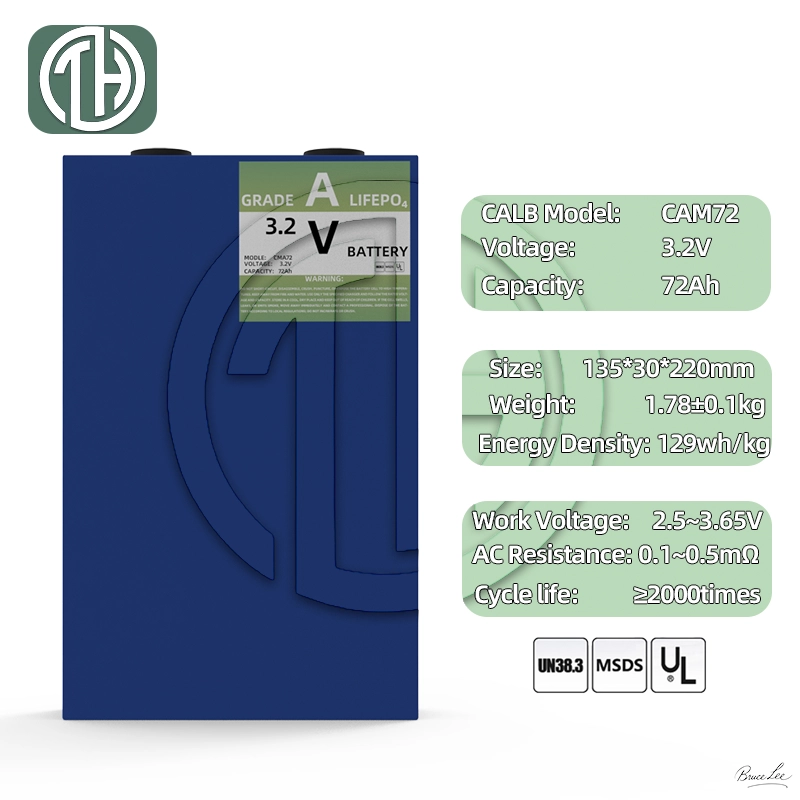

| Item | Parameter | Test Condition |
|---|---|---|
| Nominal Capacity | 72Ah | @1C |
| Nominal Voltage | 3.2V | |
| Charge Cut-off Voltage | 3.65V | |
| Discharge Cut-off Voltage | 2.5V | |
| Internal Resistance | less than 1.0mΩ | 1 kHz AC |
| Standard Charge Current | 36A | 0.5C |
| Max Continuous Charge Current | 72A | 1C |
| Max Continuous Discharge Current | 216A(30 Seconds) | 3C |
| Operating Temperature (Charge) | 0 C to 55 C | |
| Operating Temperature (Discharge) | -20 C to 55 C | |
| Cycle Life | 2000 cycles or more | @1C 80 percent DOD |

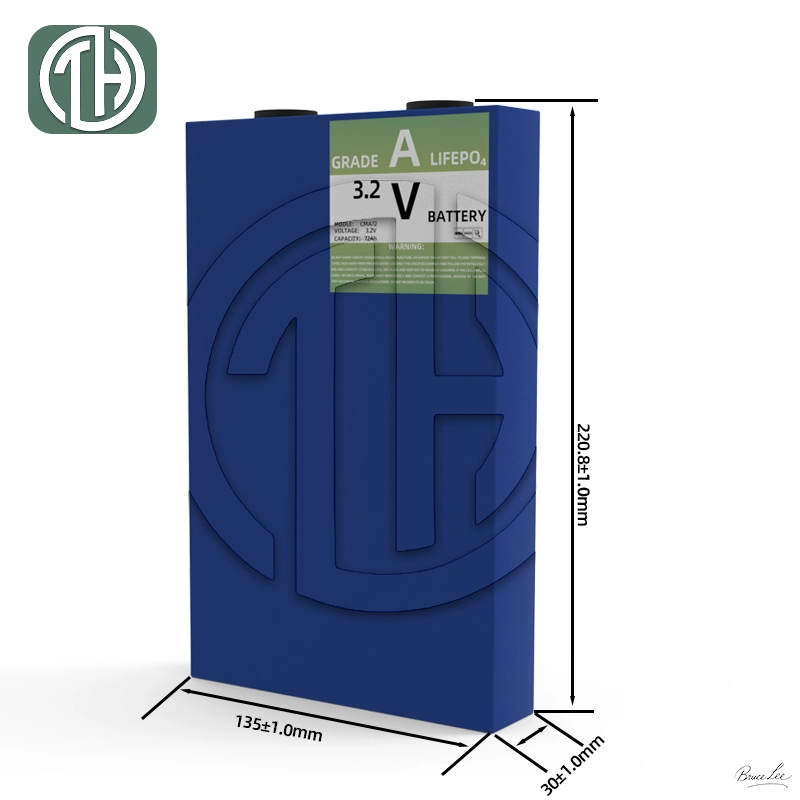

| Cell Dimensions (LxWxT) | 135x28.5x220 mm | Approximate |
Note: The above table consolidates multiple public datasheet & test sources. For engineering design or certification, please refer to the official CALB datasheet or supplier‐contracted technical document and confirm operating voltage window & limit currents.

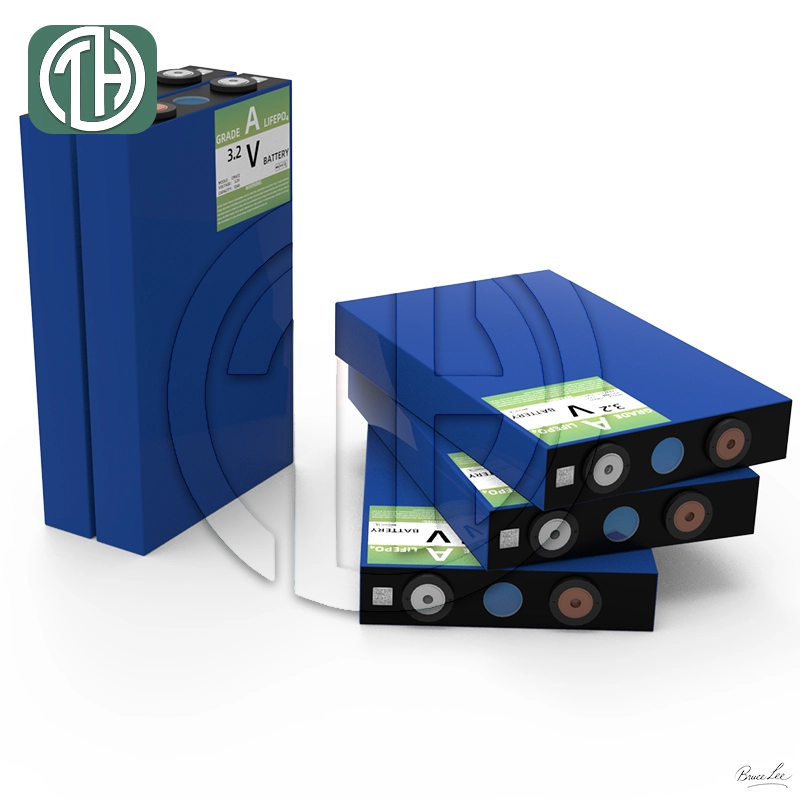

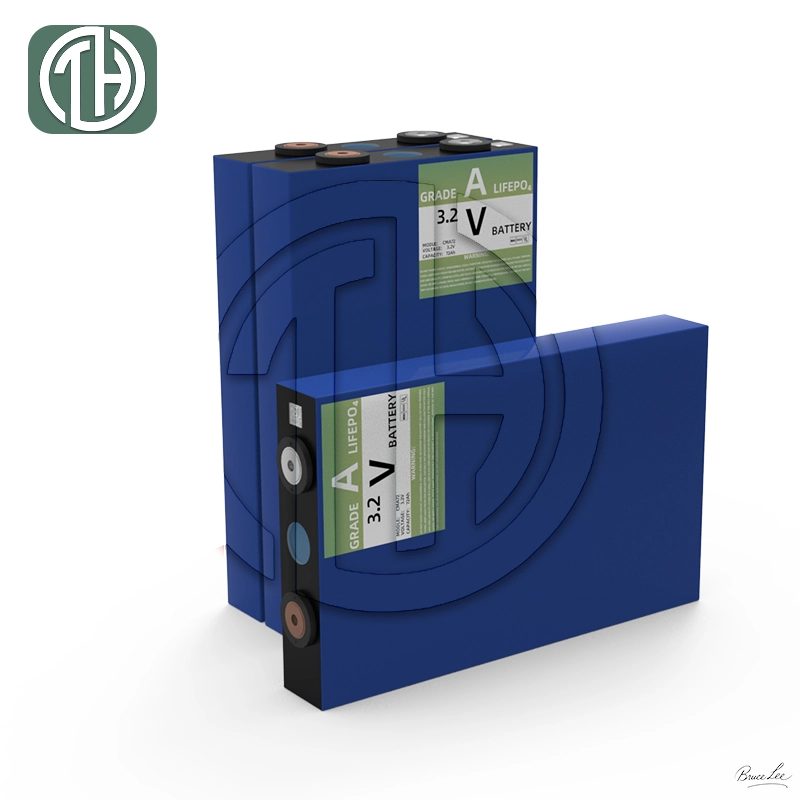

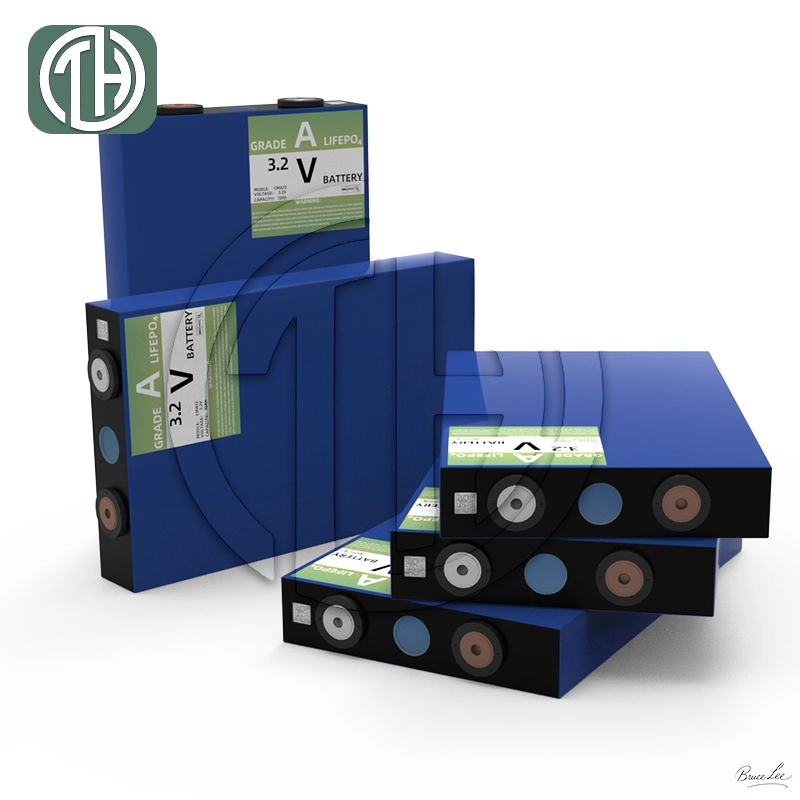

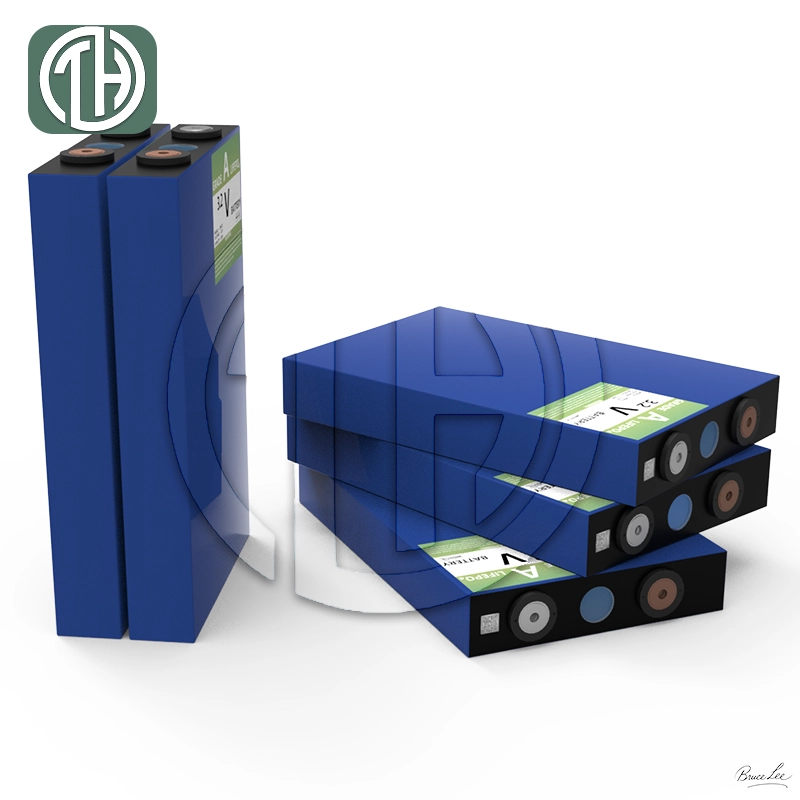

Available with welding or nut terminals to suit various installation needs, with an interactive 3D model view.
The label shown on the battery cell is for visual demonstration only. The actual product will usually not have this label, only the essential numbering or identification.
Due to its unique properties, our LFP battery cell is widely used in fields requiring ultra-high power and long life:
Meets the fast charge and discharge needs of buses for rapid energy replenishment.
Used for grid peak shaving and frequency regulation to enhance stability.
Efficiently integrates wind and solar energy to ensure a stable power supply.
Provides efficient energy for automated equipment and mobile robots.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
