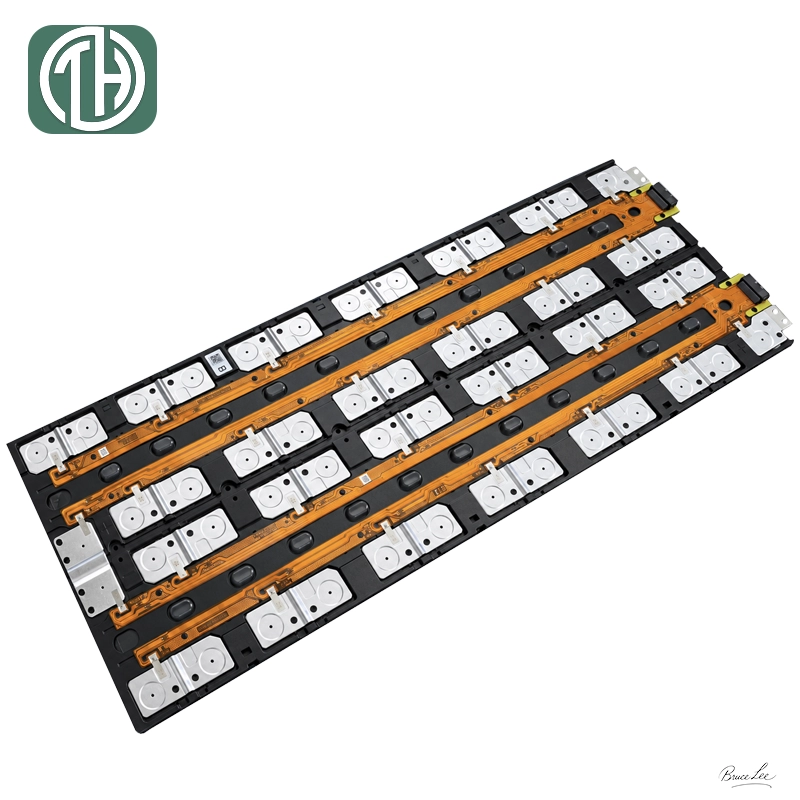

Designed for 1P26S energy storage battery modules, with a published reference outline of 974 × 350 mm.
The thermoformed structure brings the insulating carrier and cell-interconnection busbars together in one assembly.

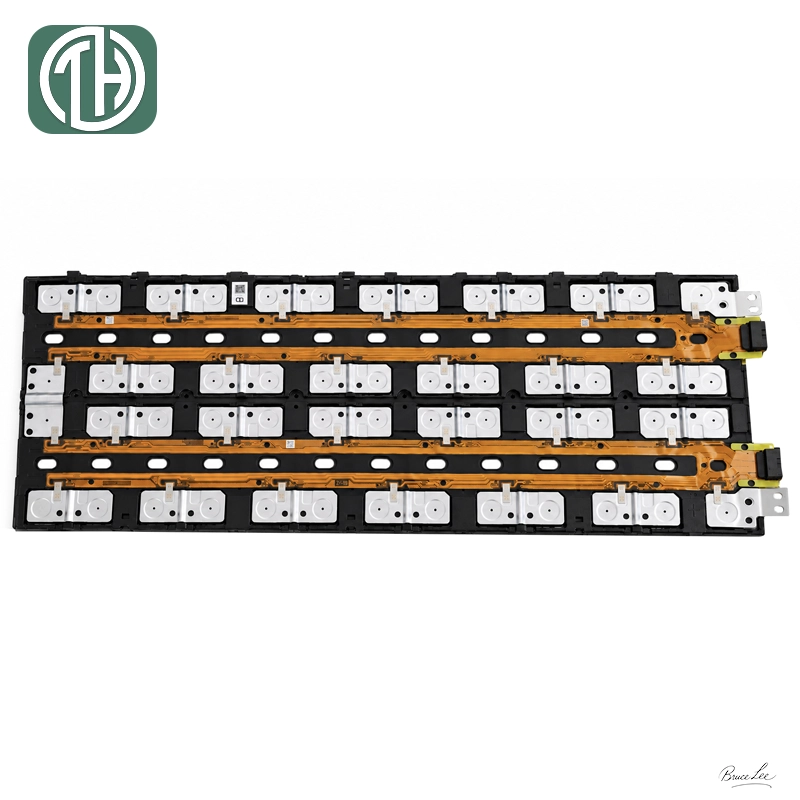

FPC signal paths support cell-voltage and temperature monitoring for connection to the external BMS. Sensing-point details follow the approved drawing.

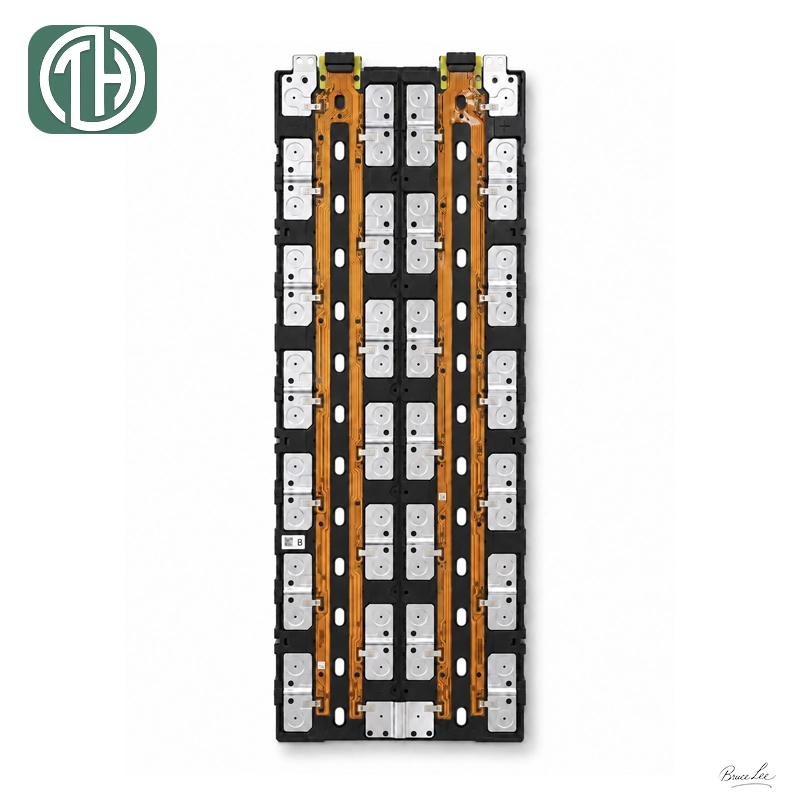

Busbar arrangement, FPC routing, connector interfaces, and mounting details are confirmed against the battery module design.
| Item | Parameter | Test Condition / Note |
|---|---|---|
| Product Configuration | ||
| Brand | LYTH | Supply brand |
| Product Type | CCS & FPC assembly | Cell Contact System for battery modules |
| Cell Arrangement | 1P26S | Designed around a 1P26S module layout |
| Application | Energy storage battery modules | Reference application for this configuration |
| CCS Forming Process | Thermoforming | Process listed for the 1P26S reference design |
| Reference Outline Size | 974 × 350 mm | Published two-dimensional reference size; thickness and tolerances are not specified |
| Functional Design | ||
| Cell Interconnection | Integrated busbar layout | Final connection arrangement follows the approved module drawing |
| Signal Collection | Cell-voltage and temperature sensing paths | Signals are routed to the external battery management system (BMS) |
| FPC and Connector Layout | Project-specific | Routing, sensing points, and interface details require drawing confirmation |
| Project Validation | ||
| Electrical Ratings | To be confirmed | Rated voltage and current must be specified for the approved 1P26S design |
| Insulation and Dielectric Tests | Per approved technical agreement | Test methods and acceptance limits require configuration-specific documentation |
| Materials and Mechanical Requirements | Per approved drawing | Material grades, joining requirements, and inspection criteria are project-specific |
The 1P26S arrangement, thermoforming process, energy storage application, and 974 × 350 mm outline are reference information. Final dimensions, FPC routing, busbar configuration, electrical ratings, materials, and validation requirements must be confirmed against the approved project drawing and technical agreement.

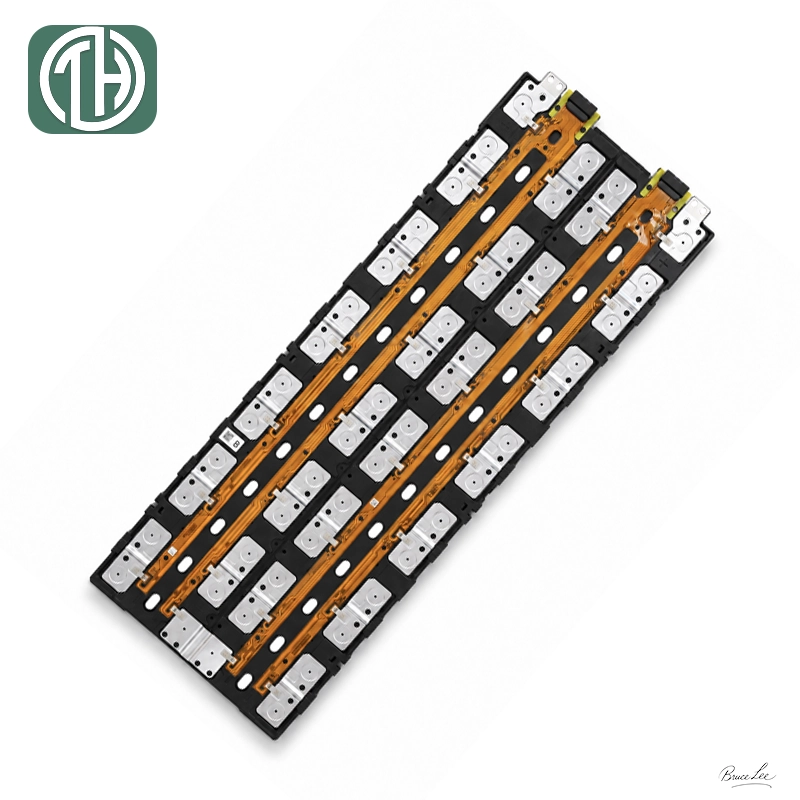

The LYTH 1P26S CCS & FPC assembly is designed for energy storage battery modules. Its thermoformed structure brings together cell-interconnection busbars, an insulating carrier, and voltage and temperature sensing paths for BMS connection.

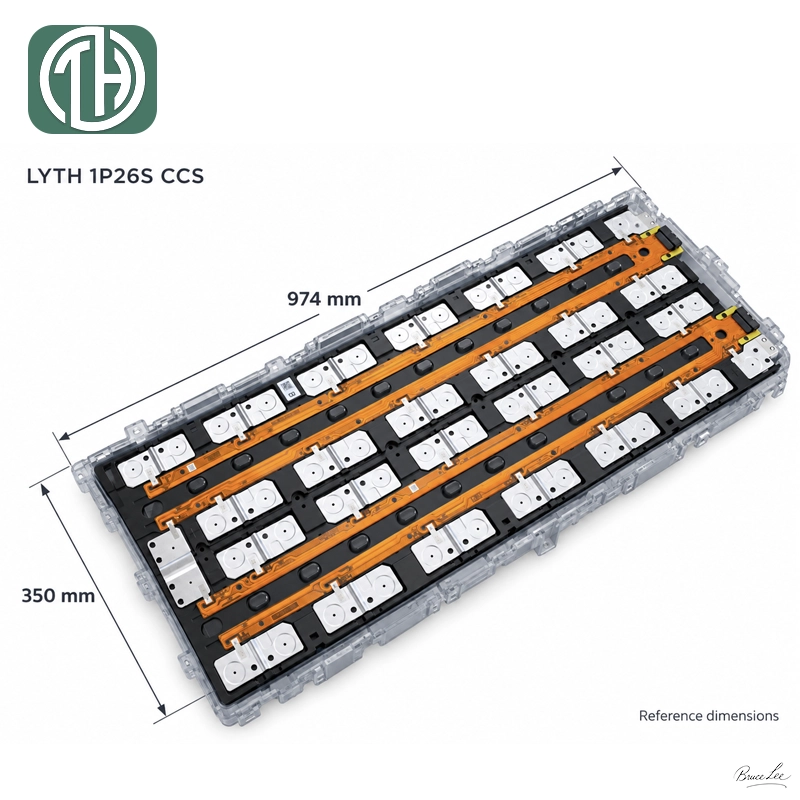

Reference outline size: 974 × 350 mm. This is a published reference configuration, not a complete manufacturing drawing. Thickness, tolerances, connector position, and mounting interfaces must be confirmed against the approved project drawing.
The LYTH 1P26S CCS & FPC assembly is intended for energy storage battery modules using a 1P26S cell layout. It brings cell interconnections and sensing circuits into an integrated structure for connection to the battery management system. Final compatibility depends on the approved module design.
For residential storage modules designed around a compatible 1P26S cell arrangement.
Supports cell connection and signal collection in compatible commercial storage module designs.
Can be configured for industrial storage projects using an approved 1P26S module layout.

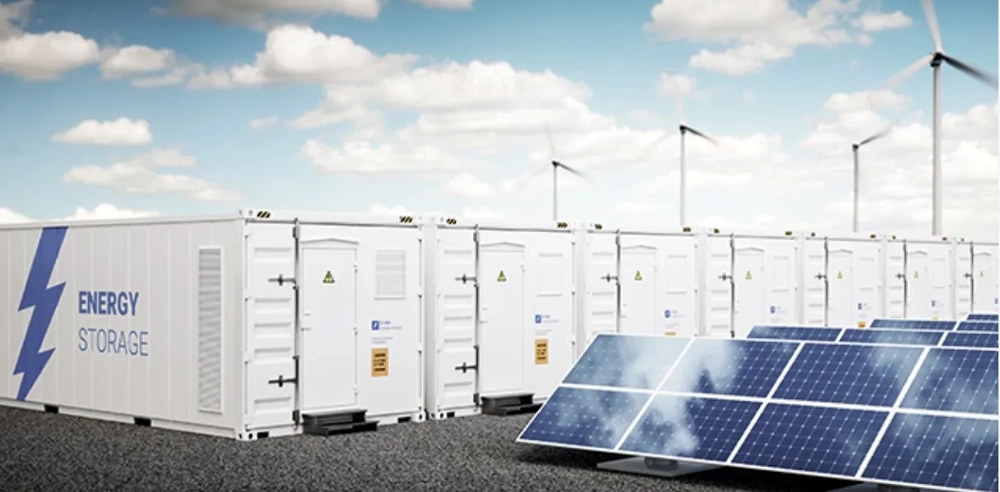

A cell-contact and sensing assembly option for compatible solar storage battery modules.

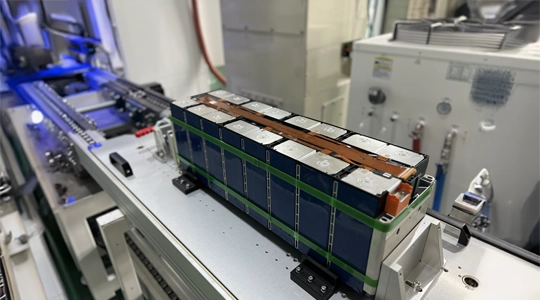

Busbar layout, sensing points, connectors, and mounting details can be matched to the approved project drawing.
Materials and components used in the 1P12S 58Ah CCS & FPC assembly are specified to meet applicable environmental, material-safety, and flame-retardancy requirements.
*RoHS, REACH, and ELV refer to material and environmental compliance requirements. UL94 V-0 refers to the specified flame-retardancy rating of applicable insulating and polymer materials, rather than UL certification of the complete CCS & FPC assembly. Final compliance documentation, material declarations, and test requirements are confirmed according to the approved project specification.
