Explore every design detail of the LYTH VDA battery module through our interactive 3D model. Rotate, zoom, and examine the internal structure in 360°. It's the best way to experience our exceptional engineering.

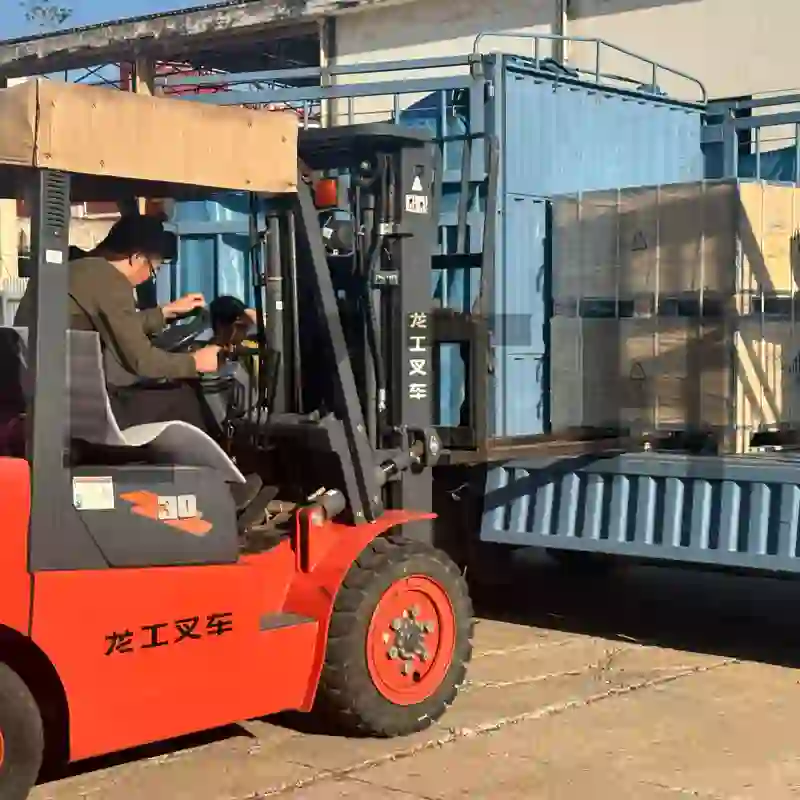

LYTH battery packs are available in a wide range of voltage configurations—from 36V to 80V—covering a spectrum of use cases from light electric mobility to industrial-grade machinery. Whether powering electric scooters, cargo e-trikes, or forklifts, our battery packs are engineered to deliver stable and responsive energy tailored to each application’s unique power demands.
Each LYTH pack is built with safety as a core principle. Integrated BMS ensures real-time monitoring and protection against overcharge, over-discharge, short circuits, and overheating. Optimized thermal management—through passive or active cooling—guarantees safe and consistent performance, even in high-load, high-temperature, or high-humidity environments such as marine or industrial applications.
We offer flexible customization options in dimensions, voltage, capacity, enclosure type, and connector design, making our battery packs easy to integrate into existing systems. Compatible with common communication protocols such as CAN and RS485, LYTH battery packs support intelligent control, remote diagnostics, and smooth interfacing with motor controllers, chargers, and onboard electronics.
| Specification | Value |
|---|---|
| Rated Voltage | 51.8V |
| Rated Capacity | 58 Ah |
| Rated Power | 3 kWh |
| Configuration | 1P14S |
| Dimensions | 330 x 230 x 160 mm |
| Max Charge/Discharge Current | 80A |
| Cycle Life | ≥2000 Times |
| Communication Interface | CAN |
| Housing Material | Stainless-steel |
