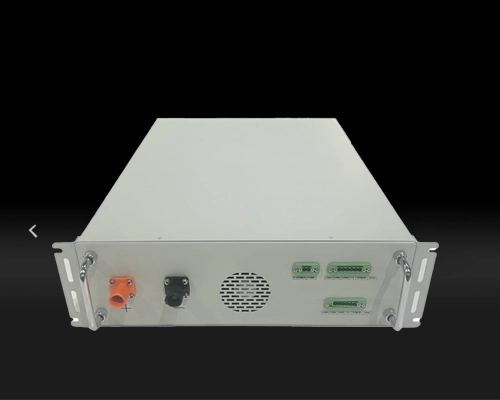

Stackable cabinet-style battery modules enable flexible system configuration and easy capacity expansion for residential and small commercial applications.
Works with a dedicated high-voltage control box, allowing multiple modules to connect in series for higher system voltage and power output.
Long-life LiFePO₄ cells provide excellent thermal stability, long cycle life, and enhanced safety for stationary energy storage systems.
Each module features a smart BMS offering protection against overcharge, over-discharge, overcurrent, short circuit, and temperature anomalies.
| Item | Parameter | Unit |
|---|---|---|
| Battery Configuration | 16S1P LiFePO₄ Battery Pack | – |
| Nominal Capacity | 100 | Ah |
| Nominal Voltage | 51.2 | V |
| Nominal Energy | 5.12 | kWh |
| Operating Voltage Range | 44.8 – 57.6 | V |
| Charging Cut-off Voltage | 57.6 | V |
| Discharging Cut-off Voltage | 44.8 | V |
| Standard / Max Charge Current | 50 / 100 | A |
| Max Continuous Discharge Current | 100 | A |
| Cycle Life | ≥6000 (25℃, 80% DOD) | Cycles |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) | – |

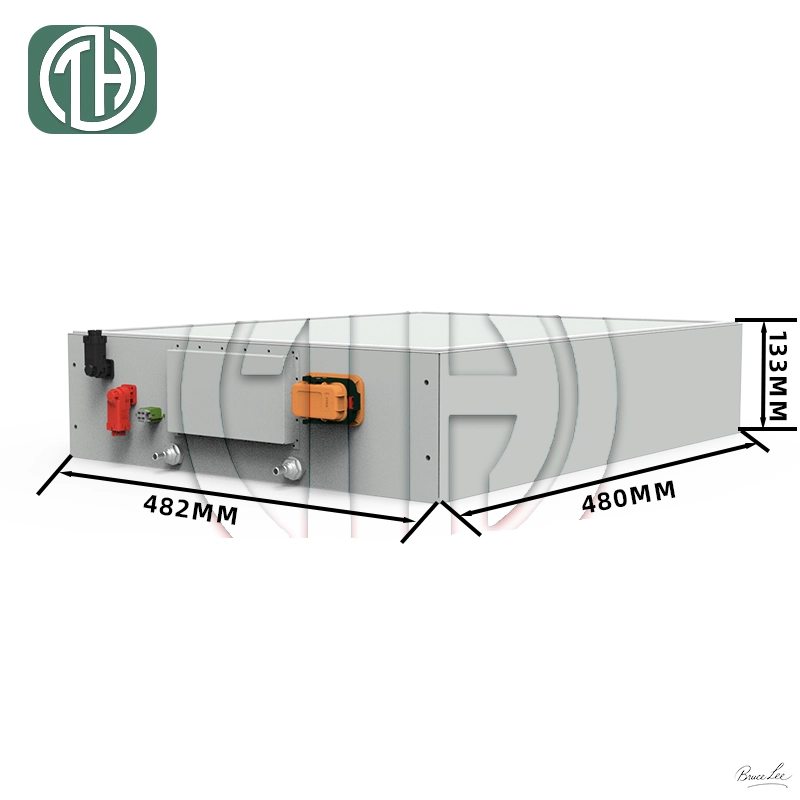

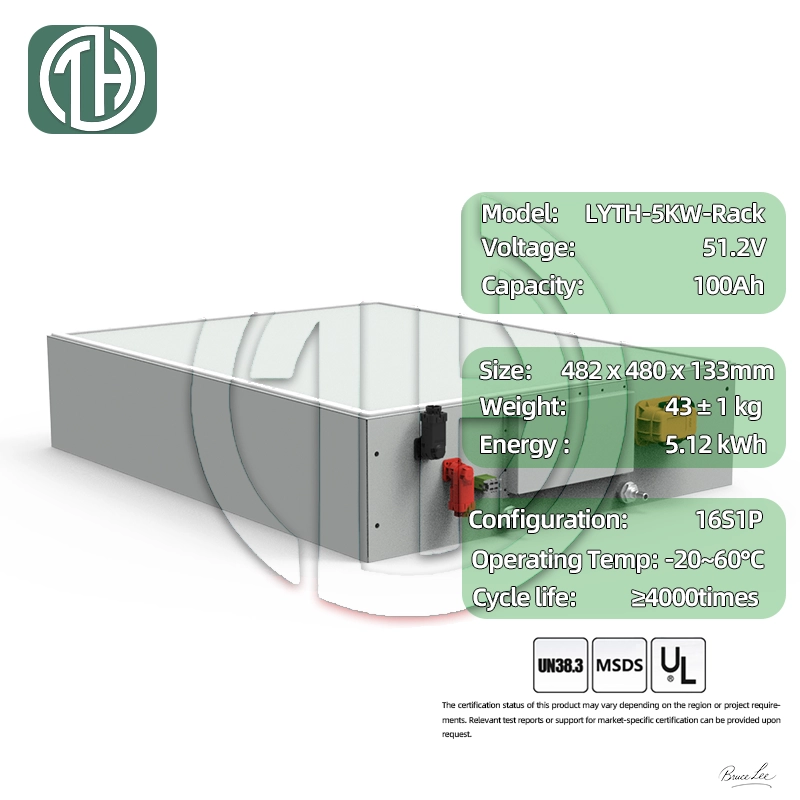

Physical dimensions and structural design of the 51.2V 100Ah LiFePO₄ stacked battery module, optimized for cabinet-based modular energy storage systems.
Images are for reference only. Actual product appearance and dimensions may vary depending on production batches, system configuration, or customization.
Designed for modular, stackable energy storage systems, this battery is suitable for residential, light commercial, off-grid, and backup power applications:
Reliable power supply for off-grid or hybrid solar systems, supporting multi-module stacking and scalable energy capacity.
Efficient energy storage for homes, shops, offices, and small businesses, with expandable modules for flexible system sizing.
Stable and dependable backup energy for telecom stations and critical equipment, supporting parallel module connection for extended runtime.
Provides uninterruptible power for servers, data centers, and sensitive electronics, with modular design enabling scalable energy capacity.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
