High-capacity LiFePO₄ prismatic battery cell with stable voltage output, designed for energy storage systems, UPS, solar/wind applications, and industrial modules.
Designed for extended service life with ≥6000 cycles (80% DOD), ideal for ESS, UPS, and long-term industrial energy storage applications.
LiFePO₄ chemistry combined with robust aluminum housing ensures excellent thermal and chemical stability, and enhanced operational safety.
Consistent cell performance and ultra-low internal resistance (≤0.30 mΩ) enable reliable and efficient module and pack integration.
| Item | Parameter | Remarks |
|---|---|---|
| Rated Capacity | 280 Ah | Standard Discharge |
| Nominal Voltage | 3.2 V | LiFePO₄ Typical |
| Rated Energy | ≈896 Wh | Nominal Condition |
| Cell Weight | ≈5.3 kg | Typical |
| Mass Energy Density | ≈169 Wh/kg | Typical Value |
| Cell Dimensions | ≈185 × 55 × 215 mm | Prismatic Cell (L×W×H) |
| Internal Resistance | ≤0.30 mΩ | @1 kHz, 25°C |
| Charging Temperature | 0~55°C | Recommended |
| Discharging Temperature | -30~55°C | / |
| Storage Temperature | -30~60°C | / |
| Voltage Range | 2.0~3.65 V | Standard Operating Window |
Note: Specifications are based on typical test conditions and reference data. Actual performance may vary depending on application, system design, and operating parameters. Final specifications are subject to supplier confirmation.

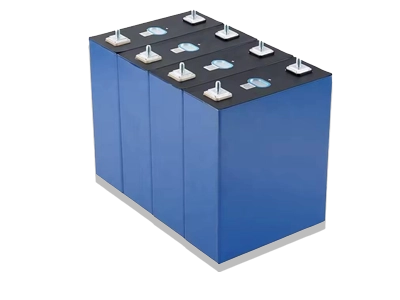

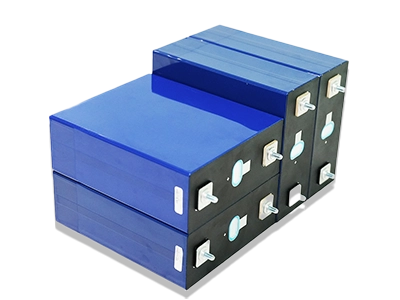

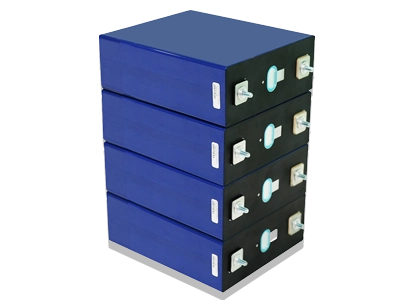

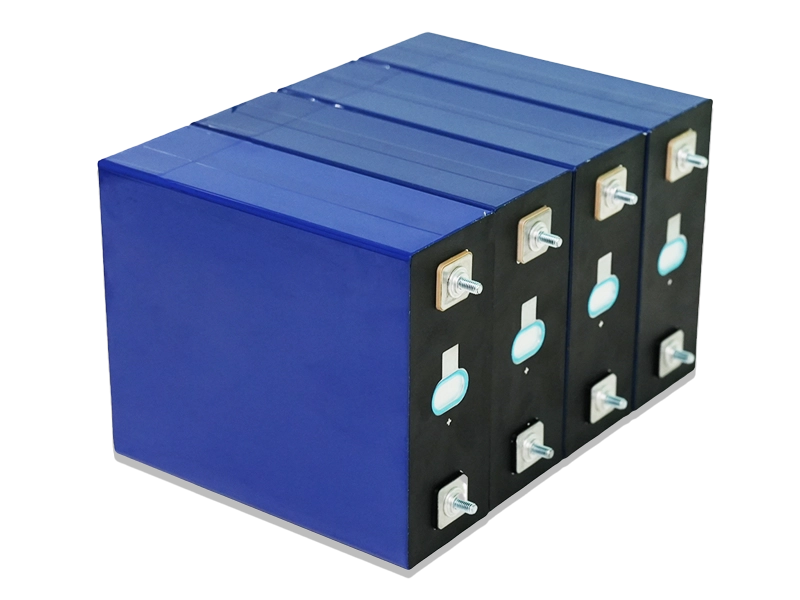

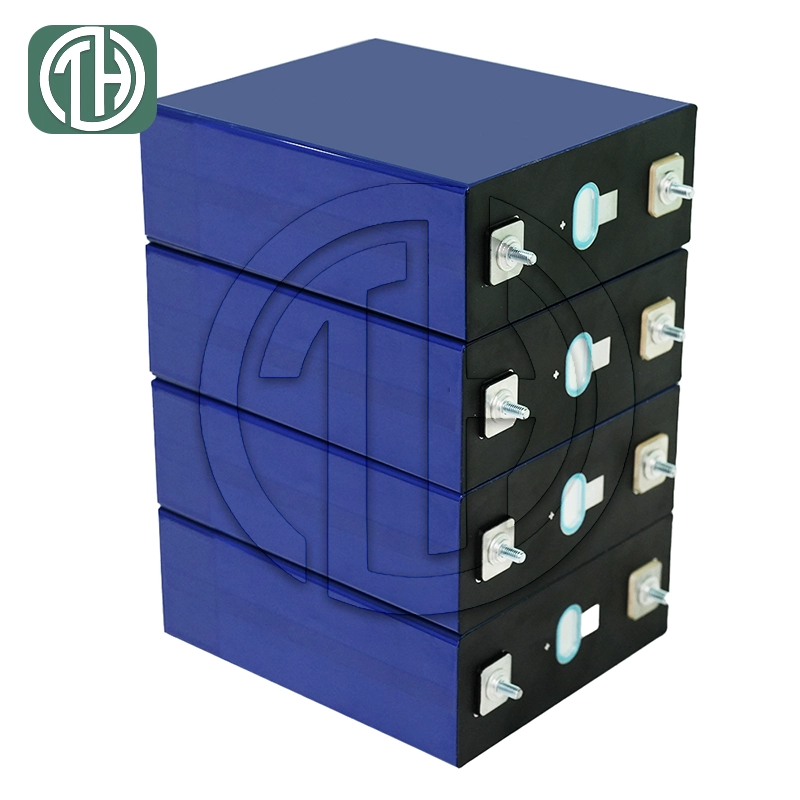

280Ah LiFePO₄ prismatic battery cell designed for energy storage systems, solar and wind storage, UPS, and industrial module and pack integration.
Images are for reference only. Actual product appearance and markings may vary.
Due to its unique properties, our LFP battery cell is widely used in fields requiring ultra-high power and long life:
Delivers the high-capacity storage required by C&I systems for effective peak shaving and energy load shifting.
Used for grid peak shaving and frequency regulation to enhance stability.
Efficiently integrates wind and solar energy to ensure a stable power supply.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
