High-capacity LiFePO₄ cell with stable voltage, for ESS, UPS, solar/wind, and industrial modules.
≥8,000 cycles (80% DOD), ideal for long-term ESS, UPS, and industrial use.
LiFePO₄ with robust aluminum housing ensures thermal and chemical stability.
Consistent performance and ultra-low resistance (≤0.30 mΩ) for reliable module and pack assembly.
| Item | Parameter | Remarks |
|---|---|---|
| Rated Capacity | 314 Ah | Nominal |
| Nominal Voltage | 3.2 V | LiFePO₄ Typical |
| Nominal Energy | ≈1004.8 Wh | Nominal Condition |
| Cell Weight | ≈5.75 kg | Typical |
| Energy Density | ≈175 Wh/kg | Typical Value |
| Cell Dimensions | ≈71.7 × 174.0 × 206.8 mm | Prismatic Cell (L×W×H) |
| Internal Resistance | ≤0.30 mΩ | @1 kHz, 25°C |
| Charging Temperature | 0~55°C | Recommended |
| Discharging Temperature | -30~60°C | Operating |
| Storage Temperature | -30~60°C | / |
| Voltage Range | 2.5~3.65 V | Operating |
Note: Specifications are based on typical test conditions and reference data. Actual performance may vary depending on application, system design, and operating parameters. Final specifications are subject to supplier confirmation.

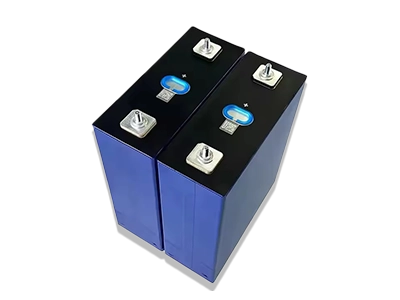

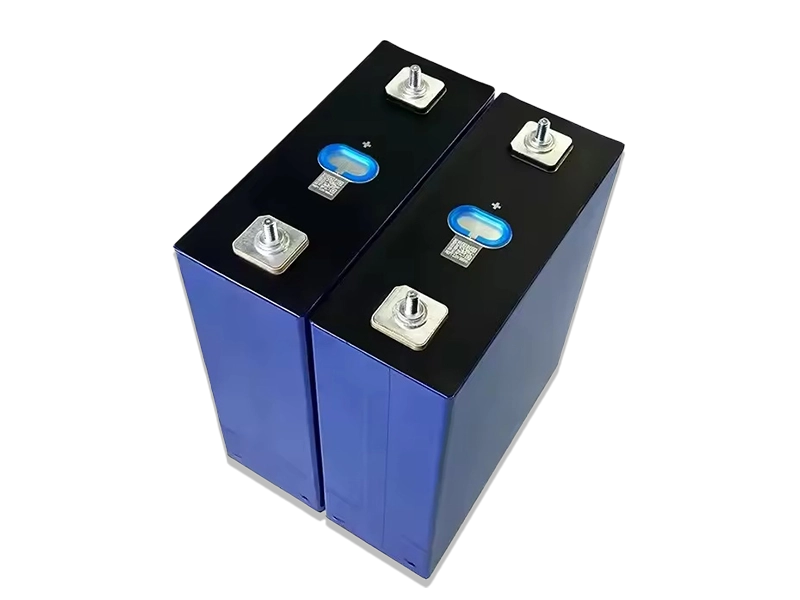

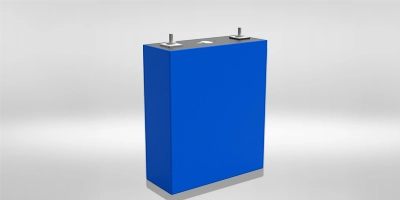

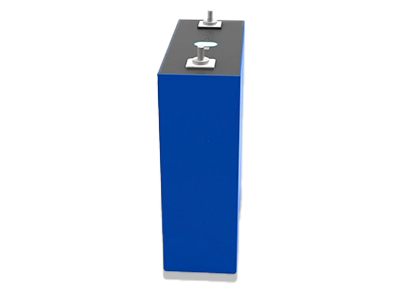

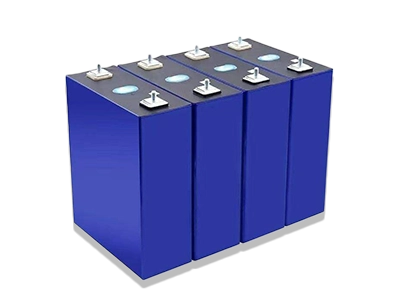

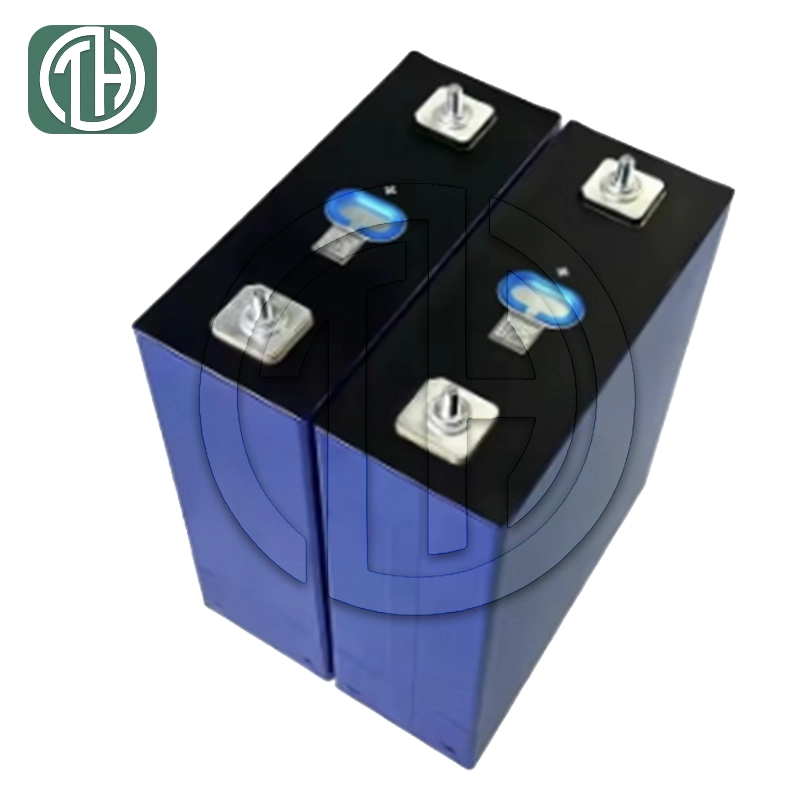

314Ah LiFePO₄ prismatic battery cell designed for energy storage systems, solar and wind storage, UPS, and industrial module/pack integration.
Images are for reference only. Actual product appearance and markings may vary.
Due to its unique properties, our LFP battery cell is widely used in fields requiring ultra-high power and long life:
Delivers the high-capacity storage required by C&I systems for effective peak shaving and energy load shifting.
Used for grid peak shaving and frequency regulation to enhance stability.
Efficiently integrates wind and solar energy to ensure a stable power supply.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
