High-capacity LiFePO₄ prismatic battery cell with stable voltage platform, designed for energy storage and industrial applications.
Delivers up to 6000 cycles with excellent durability, ideal for long-term ESS and UPS operation.
LiFePO₄ chemistry with aluminum housing ensures superior thermal stability and enhanced operational safety.
Excellent cell consistency and low internal resistance support efficient module and pack integration.
| Item | Parameter | Remarks |
|---|---|---|
| Rated Capacity | 72 Ah | Standard Discharge |
| Nominal Voltage | 3.2 V | LiFePO₄ Typical |
| Rated Energy | ≈230 Wh | Nominal Condition |
| Cell Weight | ≈1.38 kg | Typical |
| Mass Energy Density | ≈165 Wh/kg | Typical Value |
| Cell Dimensions | ≈149 × 40 × 110 mm | Prismatic Cell (L×W×H) |
| Internal Resistance | ≤0.50 mΩ | @1 kHz, 25°C |
| Charging Temperature | -10~60°C | / |
| Discharging Temperature | -30~60°C | / |
| Storage Temperature | -40~60°C | / |
| Voltage Range | 2.0~3.65 V | Standard Operating Window |
Note: Specifications are based on typical test conditions and reference data. Actual performance may vary depending on application, system design, and operating parameters. Final specifications are subject to supplier confirmation.

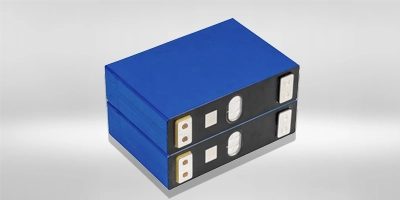

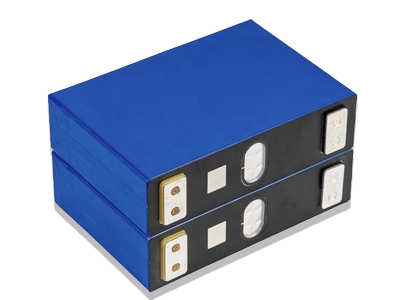

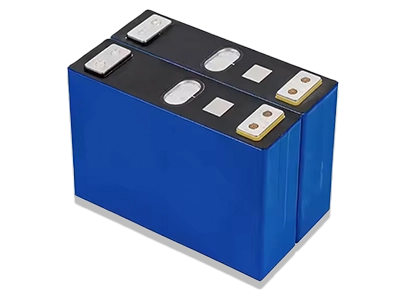

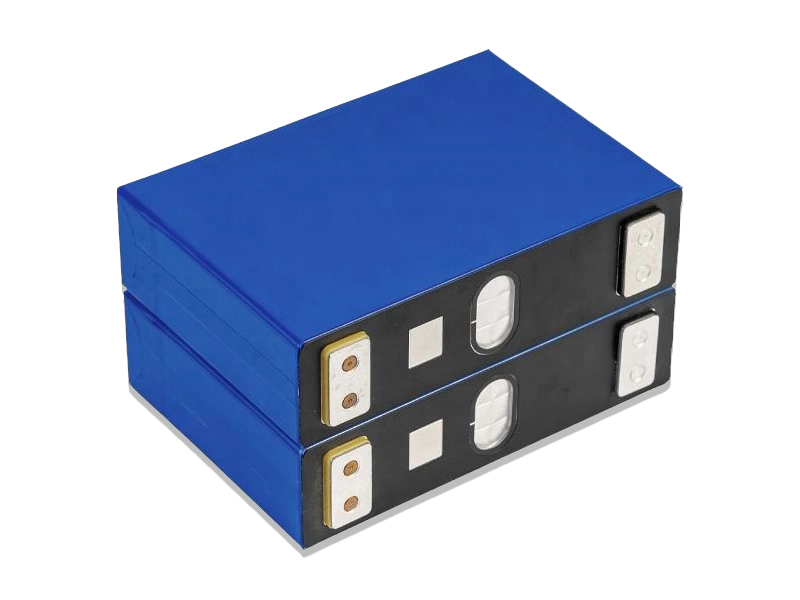

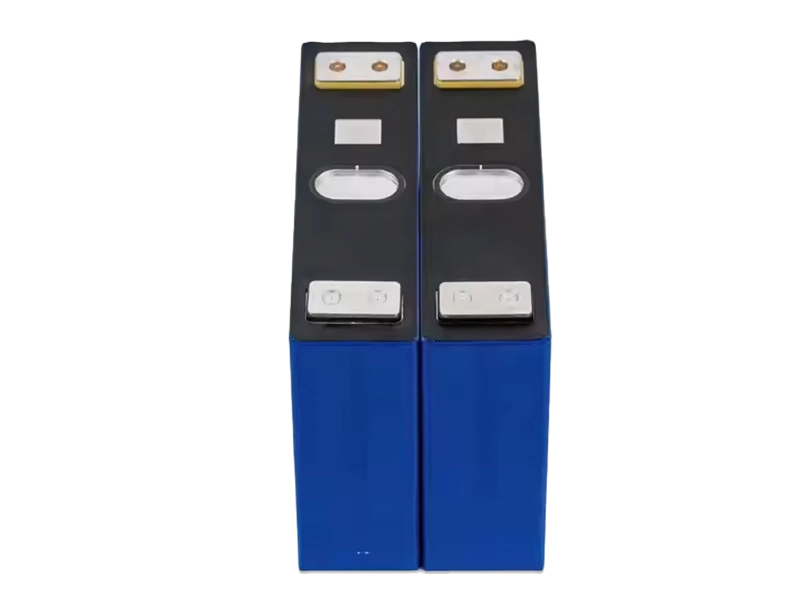

72Ah LiFePO₄ prismatic battery cell designed for energy storage systems, UPS, and industrial module and pack integration.
Images are for reference only. Actual product appearance and markings may vary.
Due to its unique properties, our LFP battery cell is widely used in fields requiring ultra-high power and long life:
Meets the fast charge and discharge needs of buses for rapid energy replenishment.
Used for grid peak shaving and frequency regulation to enhance stability.
Efficiently integrates wind and solar energy to ensure a stable power supply.
Provides efficient energy for automated equipment and mobile robots.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
