The cell delivers 64Ah under standard discharge conditions, making it suitable for compact high-energy automotive battery applications.
Rated energy reaches 238.72Wh under standard discharge conditions, supporting efficient module and pack-level energy design.
The prismatic structure helps improve packaging efficiency and supports practical battery module layout in vehicle battery systems.
With fast charging capability from 30% to 80% SOC in 20 minutes or less, this cell fits demanding mobility battery platforms.

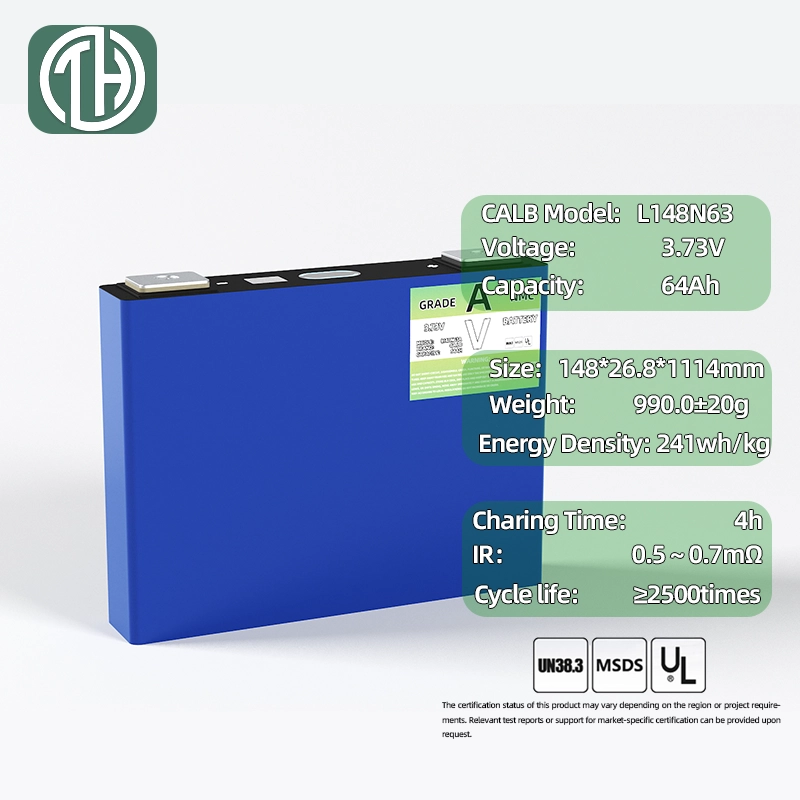

| Item | Parameter | Test Condition / Note |
|---|---|---|
| Product Type | Prismatic Lithium-Ion Battery Cell | Cell-level product |
| Brand | CALB | Manufacturer |
| Model | L148N63A | Product model |
| Chemistry | NMC | Commercial product positioning |
| Rated Capacity | 62.5Ah | 1C discharge |
| Rated Capacity | 64Ah | Standard discharge |
| Rated Voltage | 3.67V | 1C discharge |
| Rated Voltage | 3.73V | Standard discharge |
| Rated Energy | 229.37Wh | 1C discharge |
| Rated Energy | 238.72Wh | Standard discharge |
| Cell Dimensions | 148.8*26.8*114.5mm | Width * Thickness * Height with terminal |
| Cell Dimensions | 148.8*26.8*111.4mm | Width * Thickness * Height without terminal |
| Cell Weight | 0.990±0.02kg | Cell-level value |
| Mass Energy Density | 240Wh/kg | Standard discharge |
| Volume Energy Density | 550Wh/L | Standard discharge |
| Voltage Range | 2.80-4.35V | 0C to 55C condition |
| Charge Temperature | -20C to 55C | Operating condition |
| Discharge Temperature | -30C to 55C | Operating condition |
| Storage Temperature | -40C to 60C | Storage condition |
| Fast Charging Time | <=20 min | 30%-80% SOC |
| Alternating Current Resistance | 0.5-0.7mΩ | 70% SOC, room temperature, 1000Hz |
Please refer to the confirmed technical agreement for the exact delivery specification, including terminal configuration, insulation layout, and project-specific integration requirements.

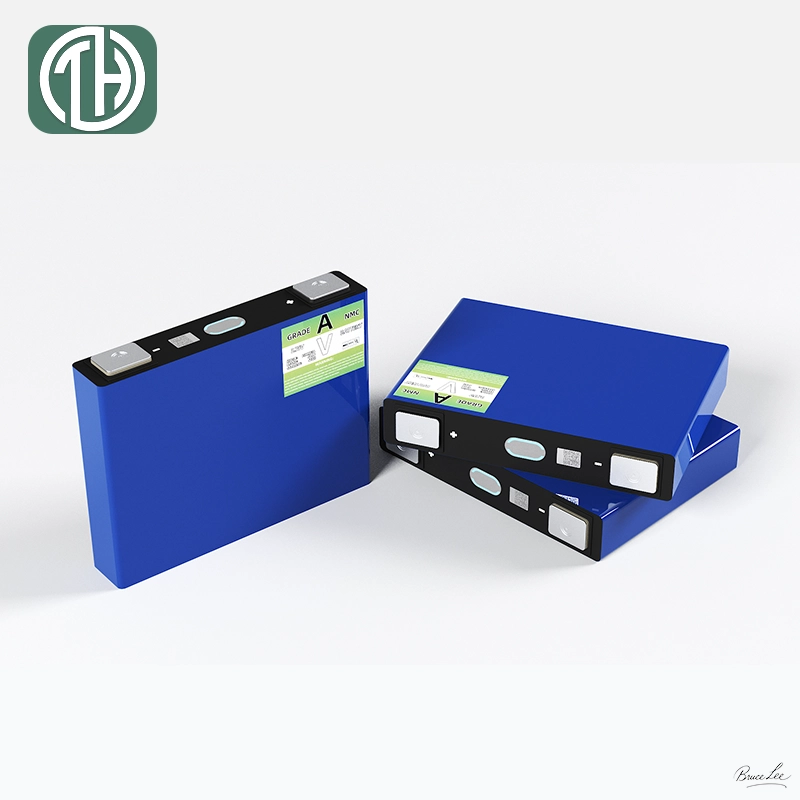

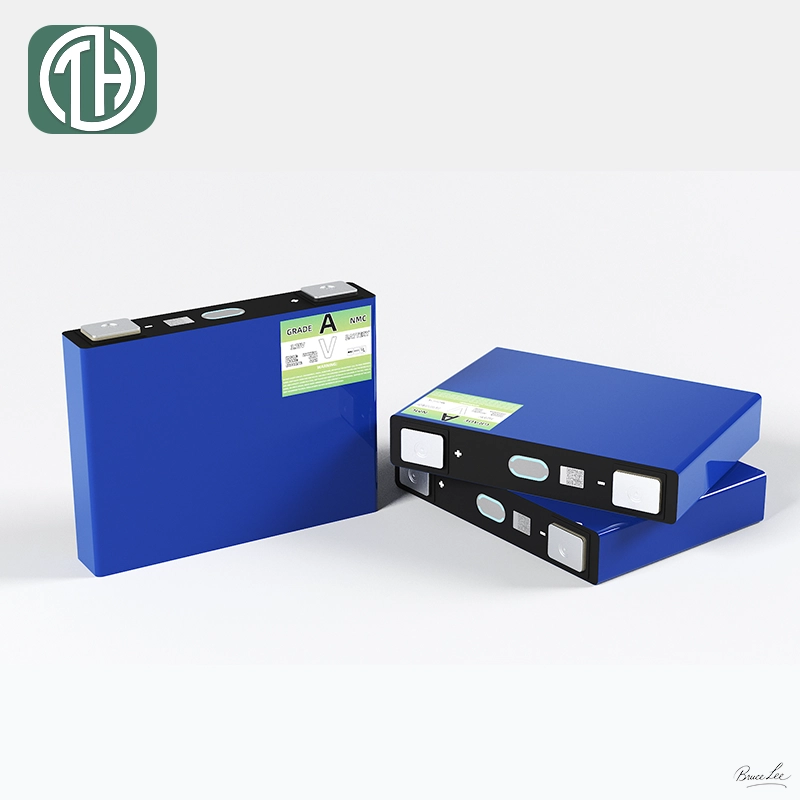

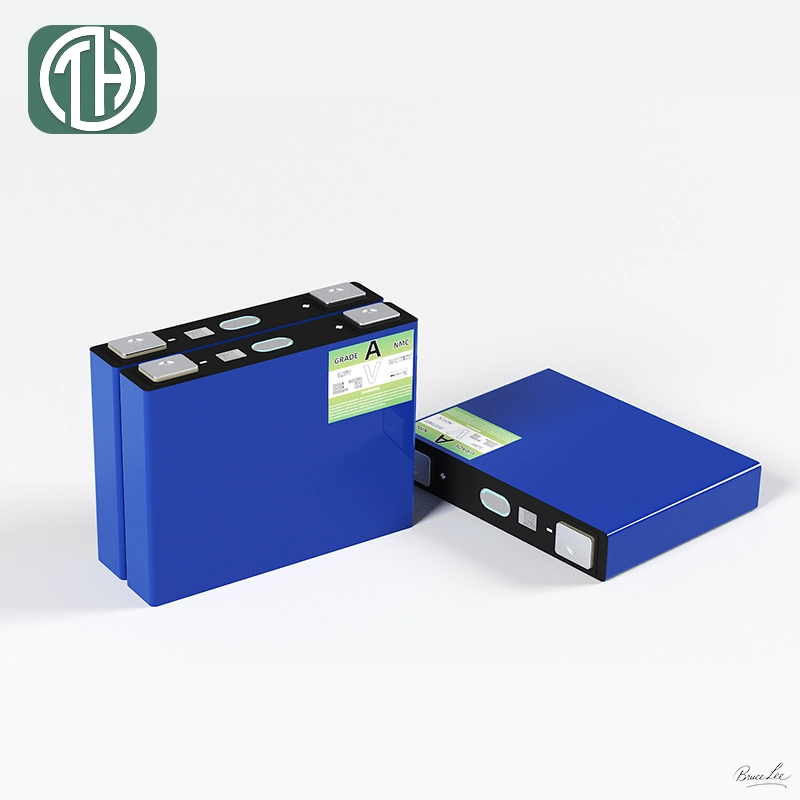

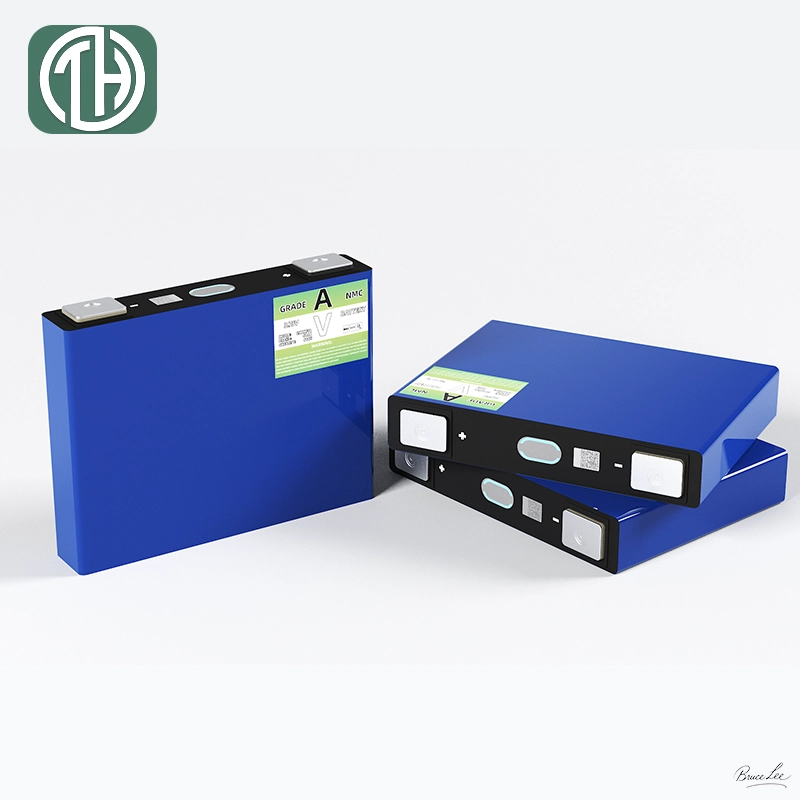

The CALB L148N63A 64Ah NMC battery cell features a compact prismatic structure for efficient module arrangement and vehicle battery integration.

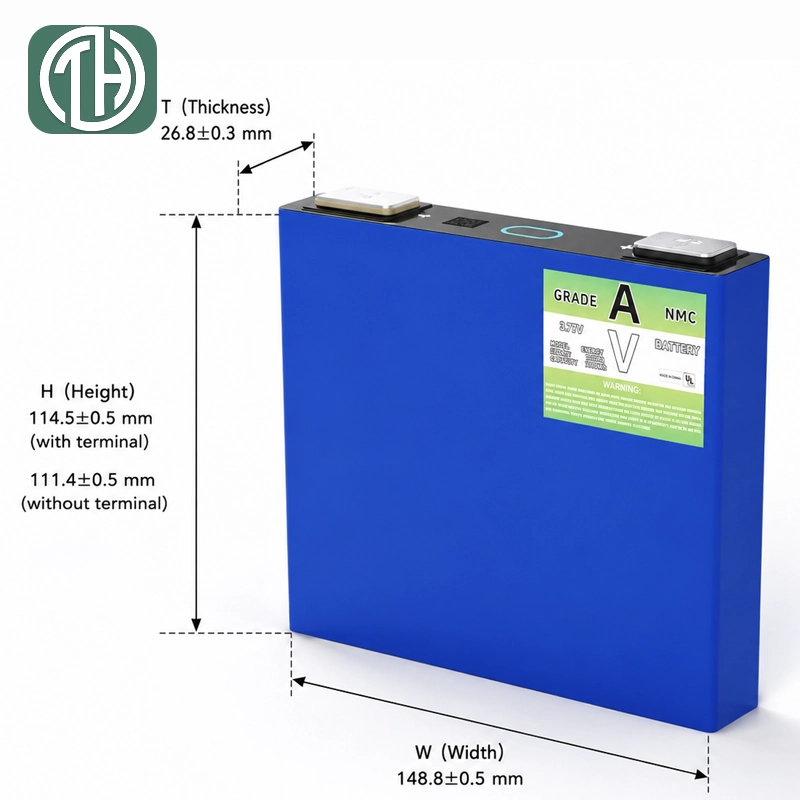

Cell dimensions are 148.8*26.8*114.5mm with terminal and 148.8*26.8*111.4mm without terminal. The label shown on the battery cell is for visual demonstration only. The actual product may only carry essential identification markings.
Due to its unique properties, our NMC battery cell is widely used in fields requiring high energy density and strong power output:
Delivers the high energy density for maximum flight endurance and the high C-rate power for demanding drone payloads.
Our cells meet both BEV demands for maximum range (high energy density) and HEV needs for instant power and regeneration (high C-rate).
Meets the fast charge and discharge needs of buses for rapid energy replenishment.
Powered by superior energy density, our cells deliver greater power and extended range for high-performance electric yachts and hydrofoils.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
