Provides 166Ah capacity and 3.2V nominal voltage, delivering 531Wh of reliable energy for battery systems.
Engineered for over 4,000 cycles, helping reduce replacement frequency and overall operating costs.
LiFePO4 chemistry offers excellent thermal stability and dependable performance in demanding applications.
Suitable for ESS, solar storage, UPS systems, telecom backup, and custom battery pack integration.
| Item | Parameter | Test Condition / Note |
|---|---|---|
| Model | CALB 166Ah | LiFePO₄ Prismatic Cell |

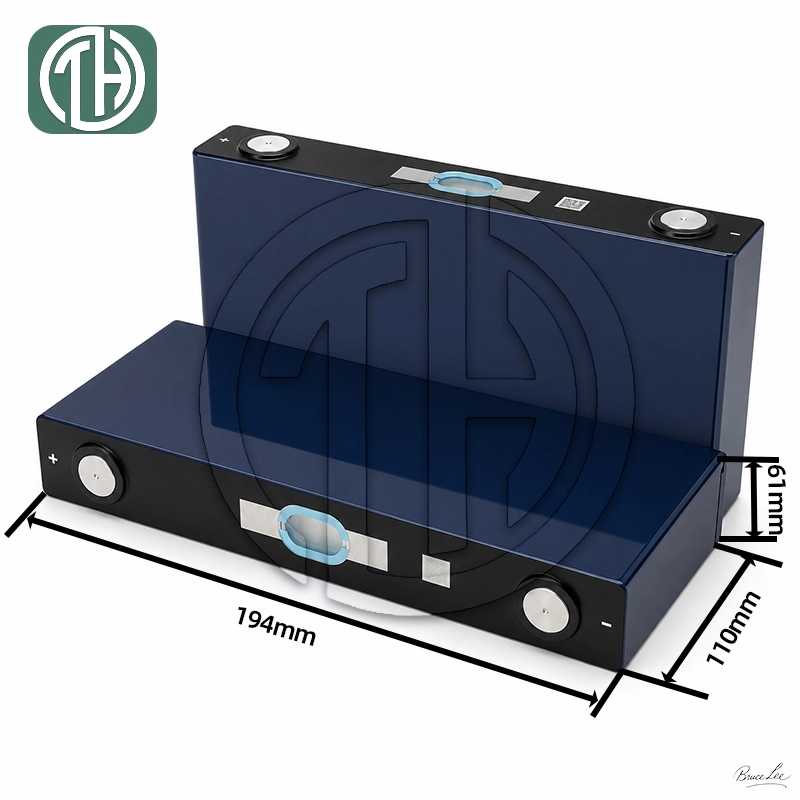

| Dimension (L × T × H) | 194 × 61 × 110 mm | Prismatic Cell Design |
| Nominal Voltage | 3.2V | Standard Discharge @25°C |
| Nominal Capacity | 166Ah | @1C, 25°C |
| Weight | Approx. 2.86kg | Typical Value |
| Energy | 531Wh | Nominal Energy |
| Internal Resistance | ≤0.3mΩ | Typical Value |
| Charging Cut-off Voltage | 3.65V | Standard Charging |
| Discharge Cut-off Voltage | 2.5V | Standard Discharge |
| Standard Charge Current | 166A (1C) | Recommended |
| Standard Discharge Current | 166A (1C) | Continuous |
| Cycle Life | ≥4,000 Cycles | 80% DOD, 25°C |
| Operating Temperature | Charging: 0 ~ 60°C Discharging: -30 ~ 60°C | Typical Operating Range |
| Storage Temperature | -20 ~ 35°C | Recommended Long-Term Storage |
| Terminal Type | M6 Threaded Terminal | Standard Configuration |
Note: The CALB 166Ah LiFePO₄ battery cell combines high energy density, excellent safety, and long cycle life. It is widely used in energy storage systems (ESS), solar storage, UPS systems, telecom backup power, and custom battery pack manufacturing. Grade A cells are available with UN38.3 and MSDS certifications.
Available with welding or nut terminals to suit various installation needs, with an interactive 3D model view.
The label shown on the battery cell is for visual demonstration only. The actual product will usually not have this label, only the essential numbering or identification.
Due to its unique properties, our LFP battery cell is widely used in fields requiring ultra-high power and long life:
Meets the fast charge and discharge needs of buses for rapid energy replenishment.
Used for grid peak shaving and frequency regulation to enhance stability.
Efficiently integrates wind and solar energy to ensure a stable power supply.
Provides efficient energy for automated equipment and mobile robots.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
