The EVE LF150 provides 150Ah nominal capacity and 483Wh nominal energy in a prismatic LiFePO4 format.
Initial AC resistance is 0.40 ± 0.05mΩ at 1kHz for a fresh cell at 19–23% SOC.
The cell reaches 4,000 cycles to 80% SOH under the specified 25°C, 0.5C charge/discharge test.
The specified temperature ranges are −10°C to 65°C for charging and −35°C to 65°C for discharging.

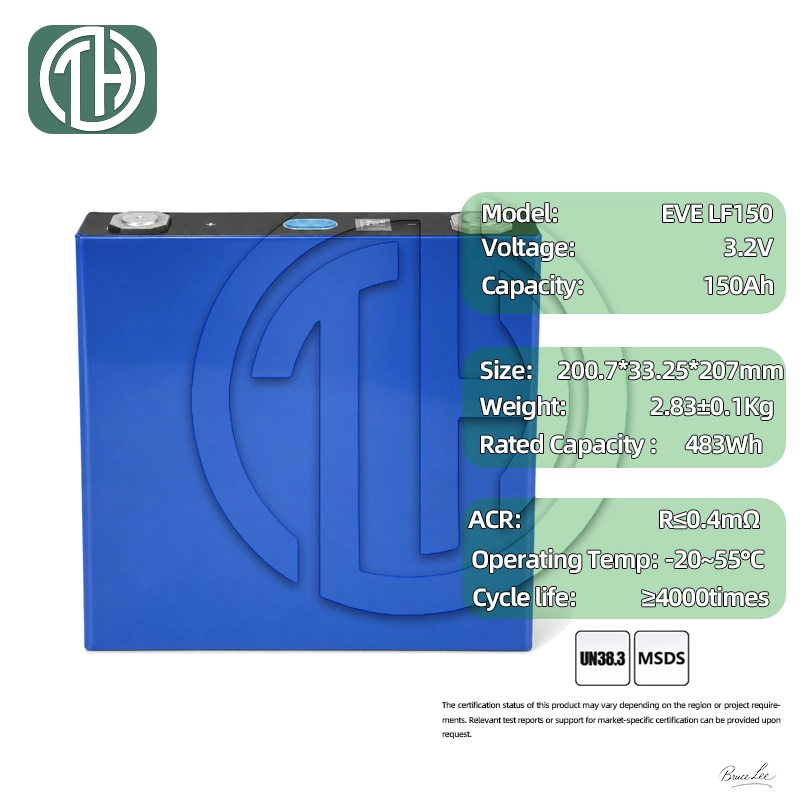

| Item | Specification | Notes |
|---|---|---|
| Product Type | Prismatic LiFePO4 Battery Cell | Aluminum housing |
| Nominal Capacity | 150.0Ah | 0.5C charge/discharge at 25 ± 2°C; fresh cell |
| Nominal Voltage | 3.22V | 0.5C discharge at 25 ± 2°C |
| Nominal Energy | 483.0Wh | Cell-level value |
| Initial AC Internal Resistance | 0.40 ± 0.05mΩ | 1kHz, 19–23% SOC; fresh cell |
| Standard Charge Current | 75.0A (0.5C) | Charge cut-off voltage: 3.65V |
| Standard Discharge Current | 75.0A (0.5C) | At 25 ± 2°C |
| Discharge Cut-off Voltage | 2.5V / 2.0V | 2.5V when cell temperature is above 0°C; 2.0V at or below 0°C |
| Charge Temperature | −10°C to 65°C | Cell-temperature operating limits; allowable current varies by temperature and SOC |
| Discharge Temperature | −35°C to 65°C | Cell-temperature operating limits; allowable current varies by temperature and SOC |
| Cycle Life | 4,000 cycles to 80% SOH | 25 ± 2°C, 0.5C charge / 0.5C discharge under specified test conditions |
| Dimensions (H × W × T) | 207.00 ± 0.50 × 200.70 ± 0.50 × 33.25 ± 0.50mm | Including terminals and insulation film; thickness measured at delivery SOC under 300 ± 20kgf compression |
| Body Height | 204.30 ± 0.50mm | Excluding terminals |
| Weight | 2,830 ± 84g | Cell-level value |
Values are based on the EVE LF150 cell specification. Charge and discharge current limits depend on cell temperature and SOC; final pack design should follow the confirmed specification and BMS requirements.

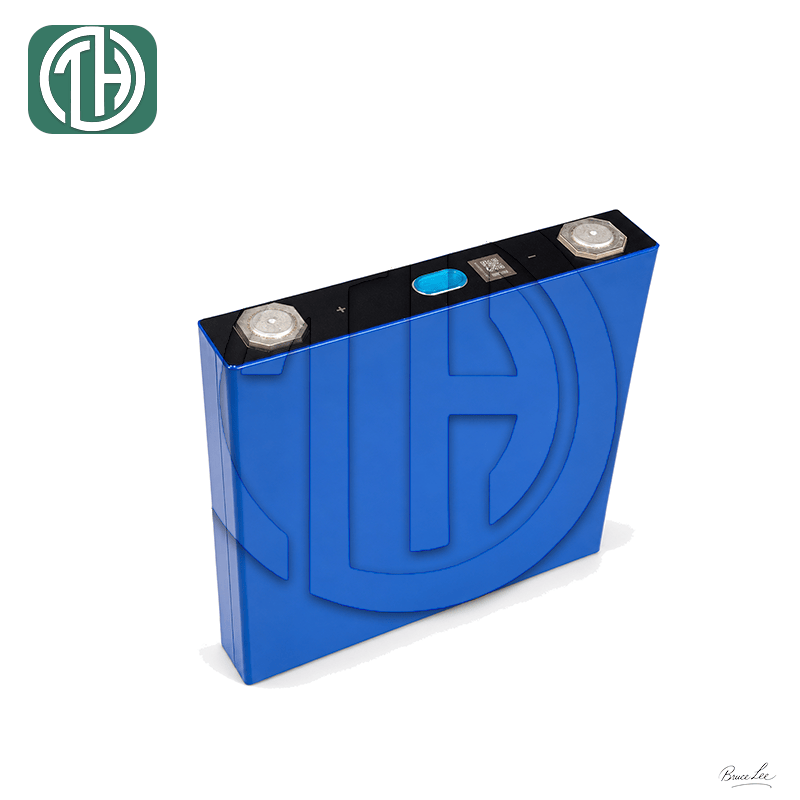

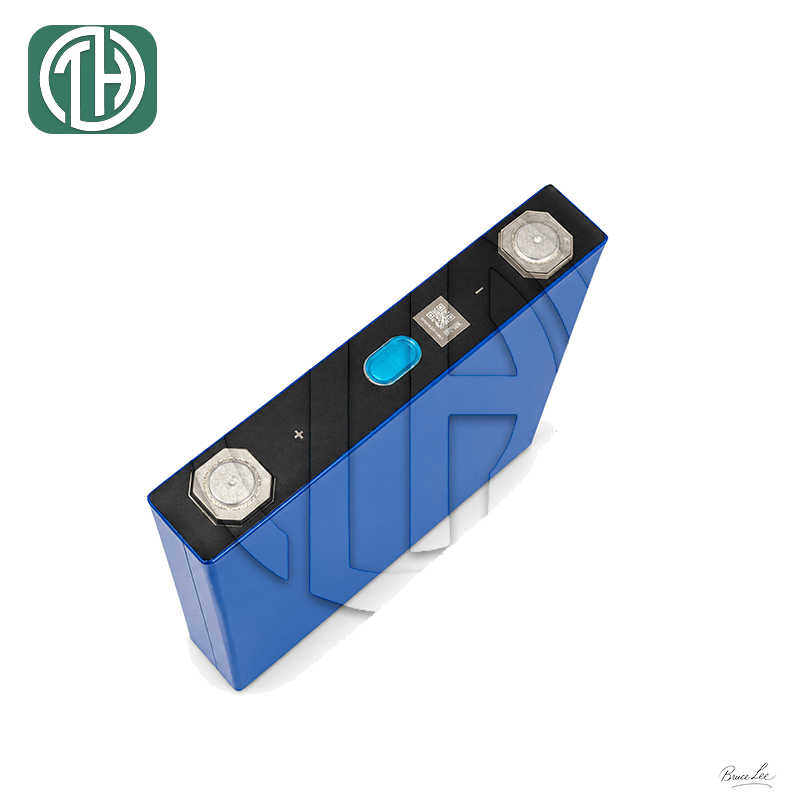

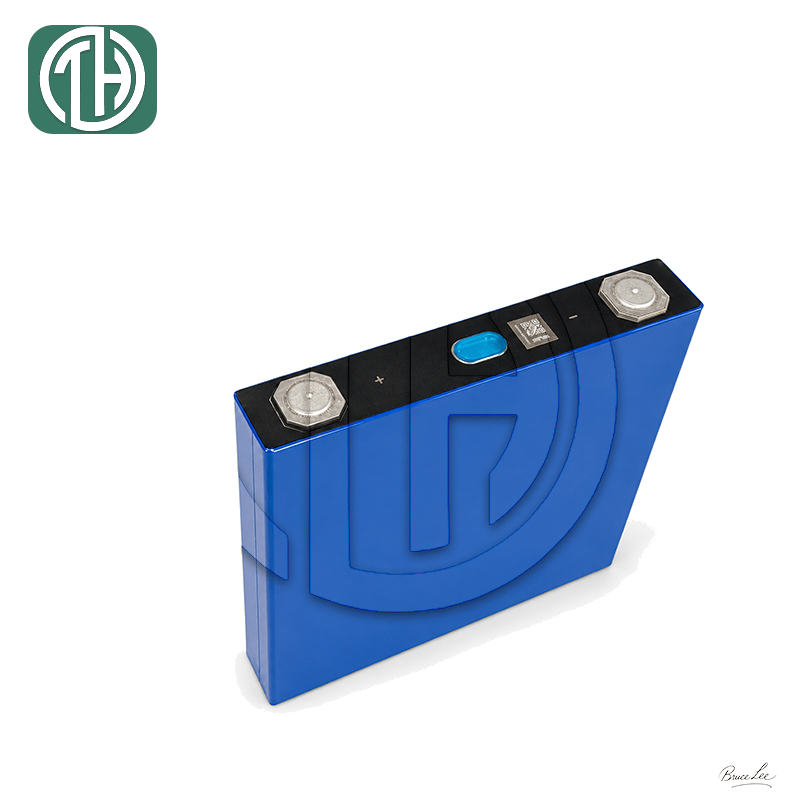

The EVE LF150 is a 150Ah prismatic LiFePO4 cell with an aluminum housing. The dimensions below include the insulation film.

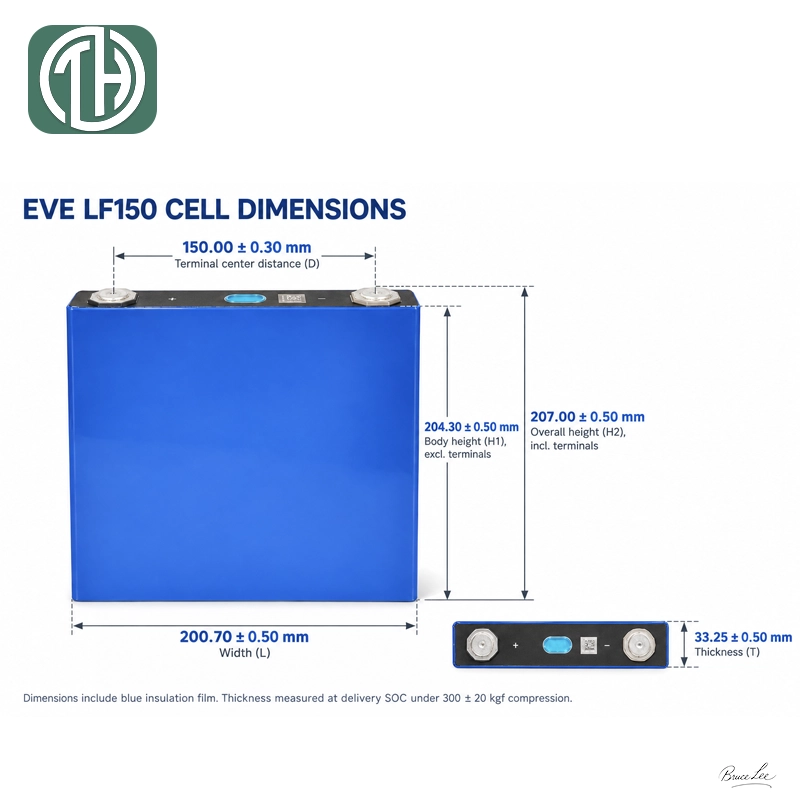

Cell width: 200.70 ± 0.50mm; thickness: 33.25 ± 0.50mm; overall height including terminals: 207.00 ± 0.50mm. Body height excluding terminals: 204.30 ± 0.50mm. The specified thickness is measured at delivery SOC under 300 ± 20kgf compression. Product markings may vary by batch.
Due to its unique properties, our LFP battery cell is widely used in fields requiring ultra-high power and long life:
Meets the fast charge and discharge needs of buses for rapid energy replenishment.
Used for grid peak shaving and frequency regulation to enhance stability.
Efficiently integrates wind and solar energy to ensure a stable power supply.
Provides efficient energy for automated equipment and mobile robots.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
