The IFP42100140A provides ≥67Ah nominal capacity at a 1C discharge rate, delivering reliable power output for EV and industrial applications.
Its LiFePO4 chemistry ensures high thermal stability and safety, operating at a standard 3.2V nominal voltage for long-term reliability.
Featuring compact dimensions (43.2 × 100.0 × 144.8 mm), the prismatic structure allows efficient module arrangement and space optimization.
Designed primarily for electric vehicles (EV), this cell is also well-suited for energy storage systems and custom battery pack assembly.

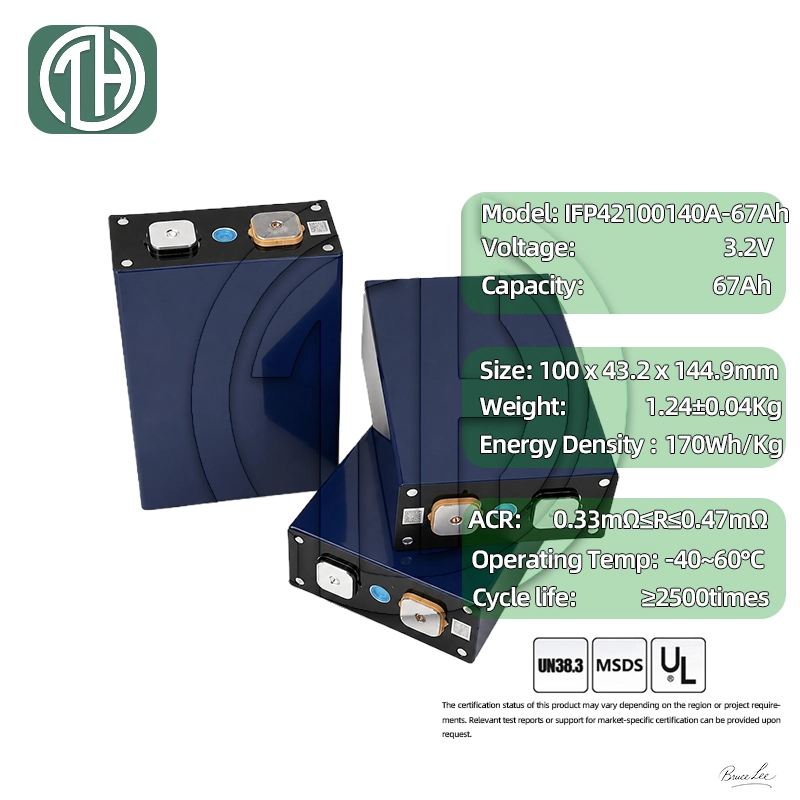

| Item | Parameter | Test Condition / Note |
|---|---|---|
| Product Type | Prismatic Lithium-Ion Battery Cell | Cell-level product |
| Brand | Gotion High-Tech | Manufacturer |
| Model | IFP42100140A | Product model |
| Chemistry | LiFePO4 (LFP) | Commercial product positioning |
| Rated Capacity | ≥67Ah | 1C discharge |
| Nominal Capacity | ≥68Ah | 0.33C discharge |
| Nominal Voltage | 3.2V | 0.33C discharge |
| Nominal Voltage | 3.1V | 1C discharge |
| Mass Energy Density | ≥175Wh/kg | 0.33C/0.33C |
| Volume Energy Density | ≥350Wh/L | 0.33C/0.33C |
| Cell Dimensions | 100.0 * 43.2 * 144.8 mm | Width * Thickness * Height with terminal (Thickness includes film, 5% SOC, 10kgf) |
| Cell Weight | 1250g ± 37g | Excluding outer film |
| Voltage Range | 2.0V - 3.65V | >0°C |
| Voltage Range | 1.8V - 3.65V | ≤0°C (Continuous charging not allowed) |
| Standard Charge Current | 33.5A (0.5C) | Constant current to 3.65V, cutoff at 3.35A |
| Charge Temperature | 0°C to 60°C | Operating condition |
| Discharge Temperature | -30°C to 60°C | Operating condition (Max cell temp ≤ 60°C) |
| AC Resistance | 0.3mΩ ≤ R < 0.5mΩ | 25°C ± 2°C |
| DC Resistance | 1mΩ < R < 2mΩ | 50% SOC, 25°C ± 2°C |
| Cycle Life | 2000 cycles | 25°C, 1C/1C, 80% capacity retention |
Please refer to the confirmed technical agreement for the exact delivery specification, including terminal configuration, insulation layout, and project-specific integration requirements.

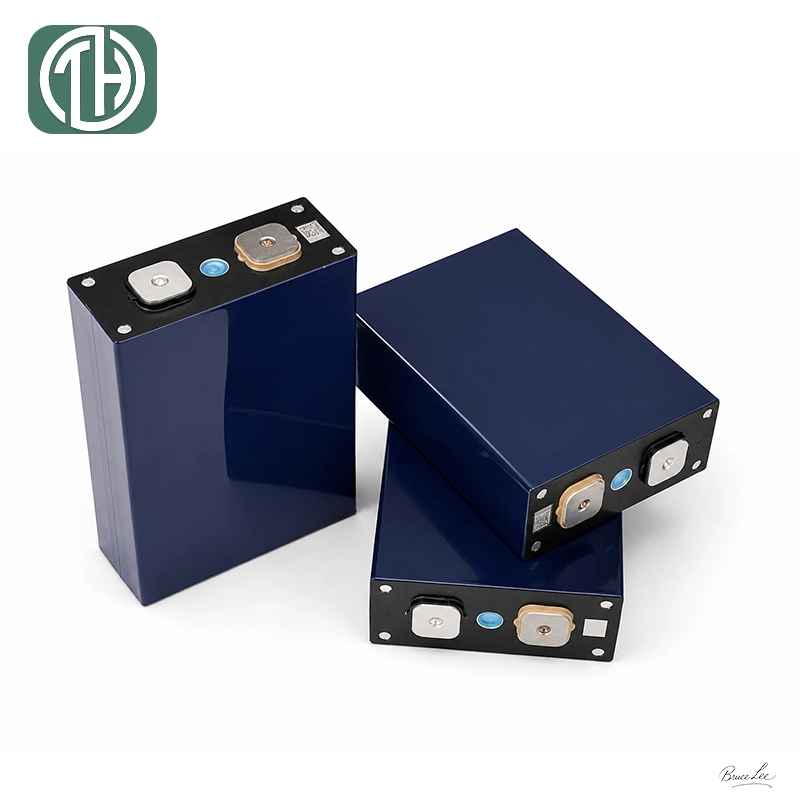

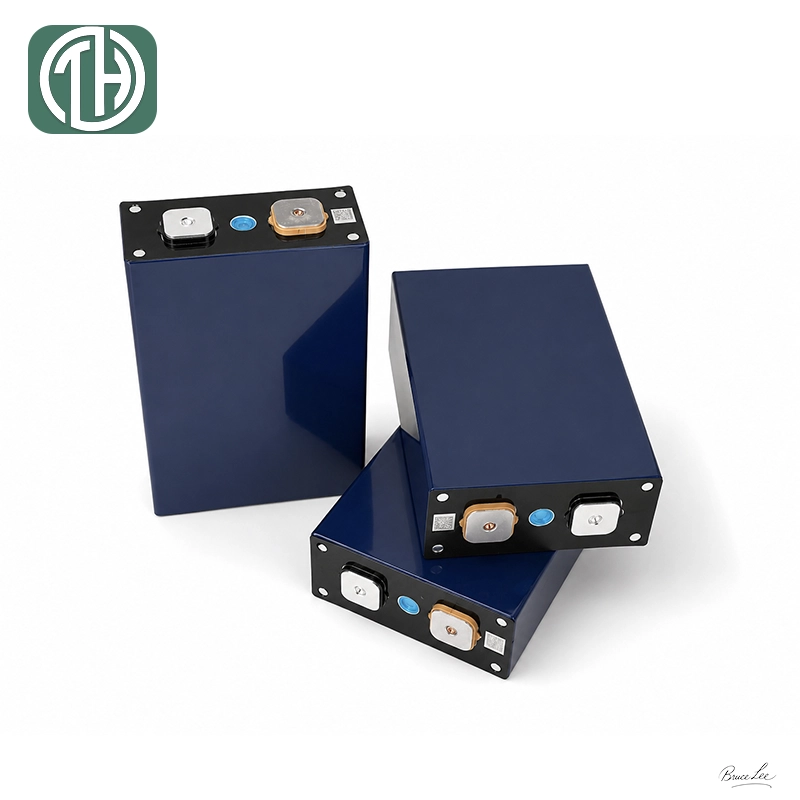

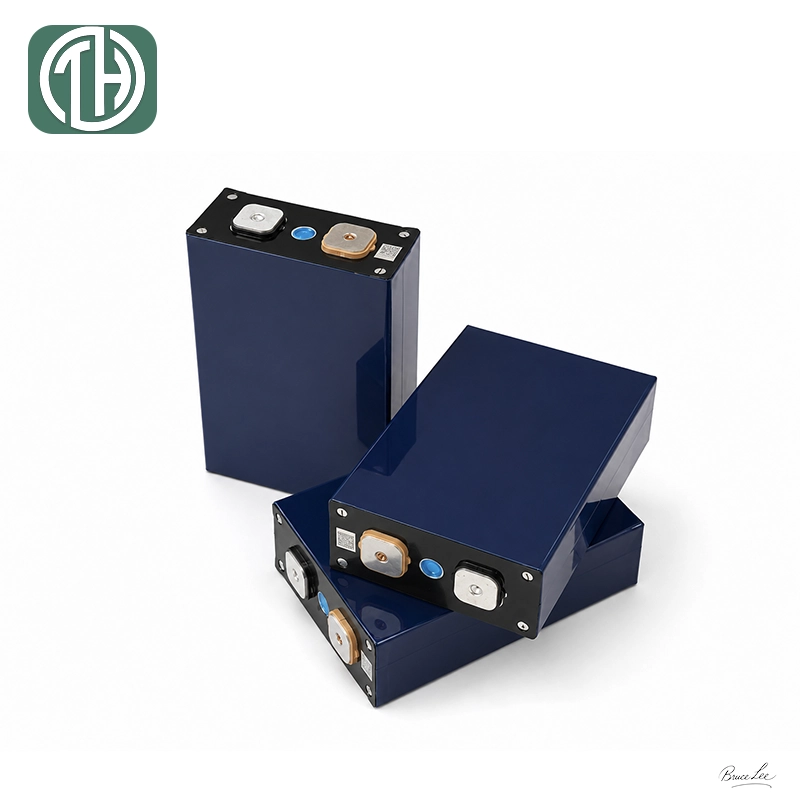

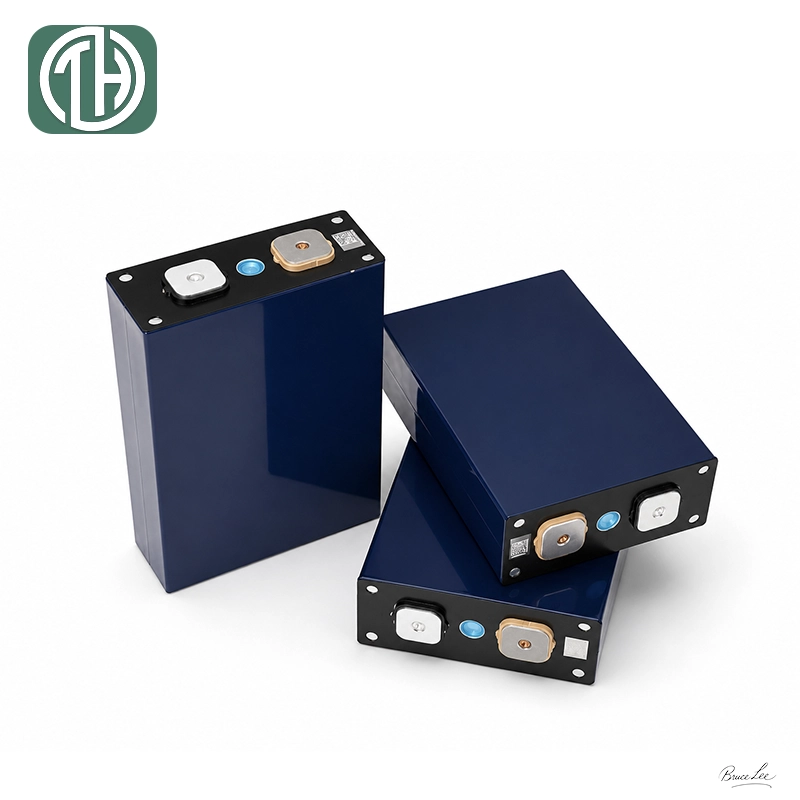

The Gotion High-Tech IFP42100140A 67Ah LiFePO4 battery cell features a compact prismatic structure for efficient module arrangement and vehicle battery integration.
Cell dimensions are 100.0*43.2*144.8mm with terminal. Thickness includes outer film (at 5% SOC, 10kgf). The label shown on the battery cell is for visual demonstration only. The actual product may only carry essential identification markings.
Due to its high safety, stable 3.2V platform, and long cycle life, our Gotion High-Tech 67Ah LiFePO4 battery cell is widely used in electric mobility and energy storage systems:
Designed as an automotive-grade LFP cell, it provides high safety, structural reliability, and long cycle life for light passenger and commercial electric vehicles.
Supports multi-step fast charging strategies and wide temperature operation, suitable for city transit and heavy-duty transportation packs.
Ideal for commercial, industrial, and residential battery storage packs, benefiting from high volumetric energy density (≥350Wh/L) and stable continuous discharge.
With precise prismatic dimensions and robust safety capabilities, it powers specialized industrial machinery, AGVs, and electric marine vessels.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
