Supports high discharge rates for heavy-load and high-thrust UAV applications.
Reliable discharge performance from -40°C to 55°C in harsh environments.
Pouch cell structure enables high energy density and reduced system weight.
Excellent cell consistency for safe series and parallel configurations.

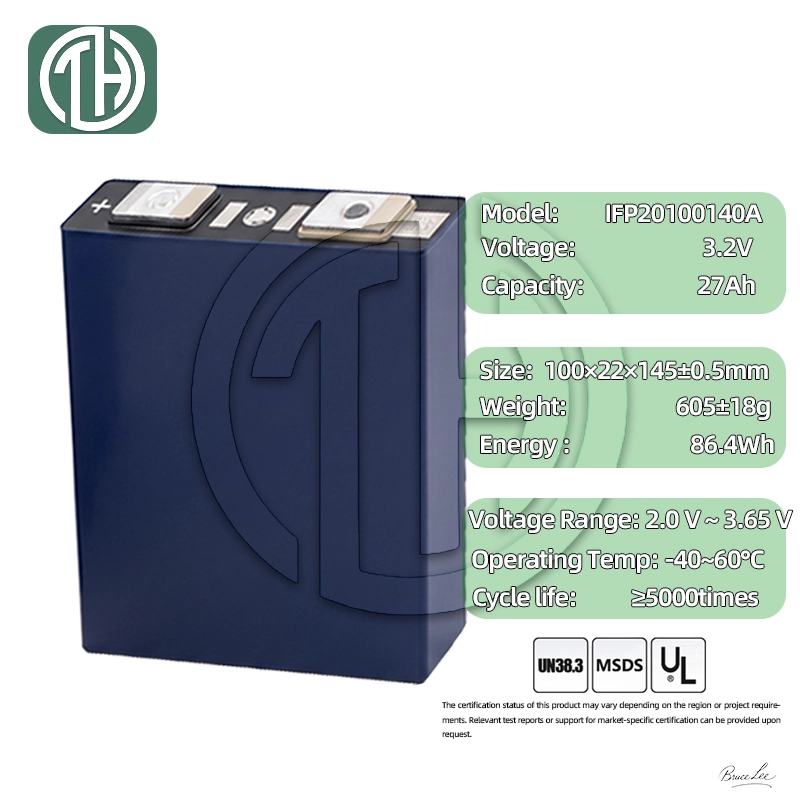

| Item | Parameter | Unit |
|---|---|---|
| Manufacturer | Gotion High-Tech | – |
| Model | IFP20100140A | – |
| Cell Type | Li-ion LFP Prismatic Cell | – |
| Nominal Capacity | 27 | Ah |
| Nominal Voltage | 3.2 | V |
| Nominal Energy | 86.4 | Wh |
| Gravimetric Energy Density | ≥140 | Wh/kg |
| Charge Cut-off Voltage | 3.65 | V |
| Discharge Cut-off Voltage | 2.00 | V |
| AC Internal Resistance (1kHz) | 0.9 ± 0.3 | mΩ |
| DC Internal Resistance | ≤3.0 | mΩ |
| Max Continuous Discharge | 4C (108A) | – |
| Peak Discharge | 6C (162A) / 10s | – |
| Optimal Operation Temperature | 10 to 35 | ℃ |
| Storage Temperature | -40 to 60 | ℃ |
| Dimensions (T × W × H) | (21.3±0.9) × (100.5±0.5) × (144.8±0.5) | mm |
| Weight | 605 ± 18 | g |
| Cell Form Factor | Prismatic (Aluminum Case) | – |
| Certifications | UN38.3 / MSDS / RoHS / CE / TUV / UL | – |

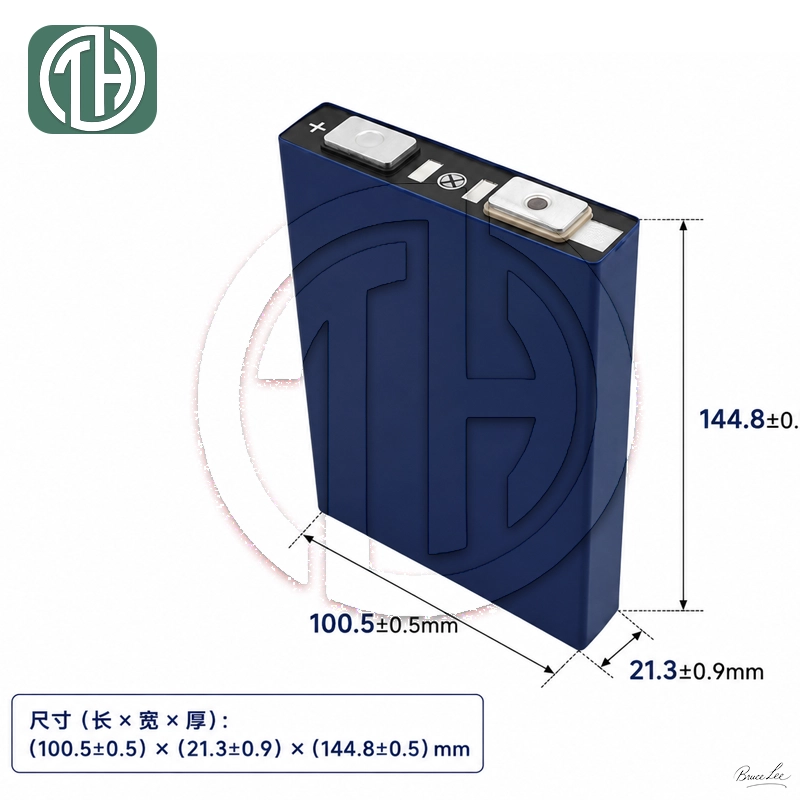

Shows the physical dimensions and structural design of the Gotion IFP20100140A 27Ah LFP High-Power Slim Cell.
With a reliable energy density of ≥140 Wh/kg, a strong 4C continuous discharge, and a powerful 10C (270A) pulse capability, the IFP20100140A cell delivers the perfect balance of exceptional safety, long cycle life, and high-power performance for modern electric mobility and industrial applications.
Provides robust 4C continuous power output for e-motorcycles, e-scooters, and golf carts.
Ensures high stability and long cycle life for heavy-duty material handling operations.
10C pulse power redundancy enables instantaneous peak performance for professional equipment.
Slim profile optimizes space utilization in residential ESS and portable power stations.
Ultra-low internal resistance prevents overheating, allowing agile movement in enclosed spaces.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
Certification status varies by region, application, and project scope. Products are not supplied as standard with all certifications. Relevant test reports, compliance support, or certification assistance can be provided upon request.
