Provides stable capacity support for EV battery modules, ESS systems, and custom lithium battery packs.
Uses LFP chemistry for strong safety performance, long cycle life, and reliable system integration value.
Prismatic structure with controlled dimensions helps improve module arrangement and pack layout efficiency.
Suitable for module development, ESS integration, and custom battery pack projects with engineering support.
| Item | Parameter | Test Condition / Note |
|---|---|---|
| Model | IFP53148115-104Ah | GOTION product model |
| Battery Type | Li-ion Prismatic Cell | Prismatic battery cell |
| Chemistry | LiFePO4 | Confirmed by datasheet |
| Nominal Capacity | 104Ah | Datasheet value |
| Nominal Voltage | 3.2V | Datasheet value |
| Voltage Range | 2.0V-3.65V | T > 0C |
| Low Temperature Voltage Range | 1.8V-3.65V | T <= 0C, continuous charging forbidden |
| Weight | 1909g ± 50g | Datasheet value |
| Weight Energy Density | 175Wh/kg | Datasheet value |
| Volume Energy Density | 370Wh/L | Datasheet value |
| AC Resistance | 0.2mOhm-0.5mOhm | Datasheet value |
| DC Resistance | <1.2mOhm | Datasheet value |
| Regular Charging | 52A / 3.65V / 5.2A cutoff | Standard charging condition |
| Optimum Working Temperature | 10C-35C | Recommended operating range |
| Charge Temperature | 0C-55C | Working temperature |
| Discharge Temperature | -30C-60C | Working temperature |
| Dimensions | 52.3 ±0.5 mm x 148.6 ±0.5 mm x 115.83 ±0.5 mm | Thickness x Width x Height |
| Cycle Life | 3000 cycles | 80% capacity retention |
| Calendar Life | 10 years | 80% capacity retention |
Technical values are based on the supplied GOTION 104Ah LiFePO4 battery cell datasheet.
The GOTION IFP53148115-104Ah battery cell uses a compact prismatic structure suitable for battery module design and custom pack integration.

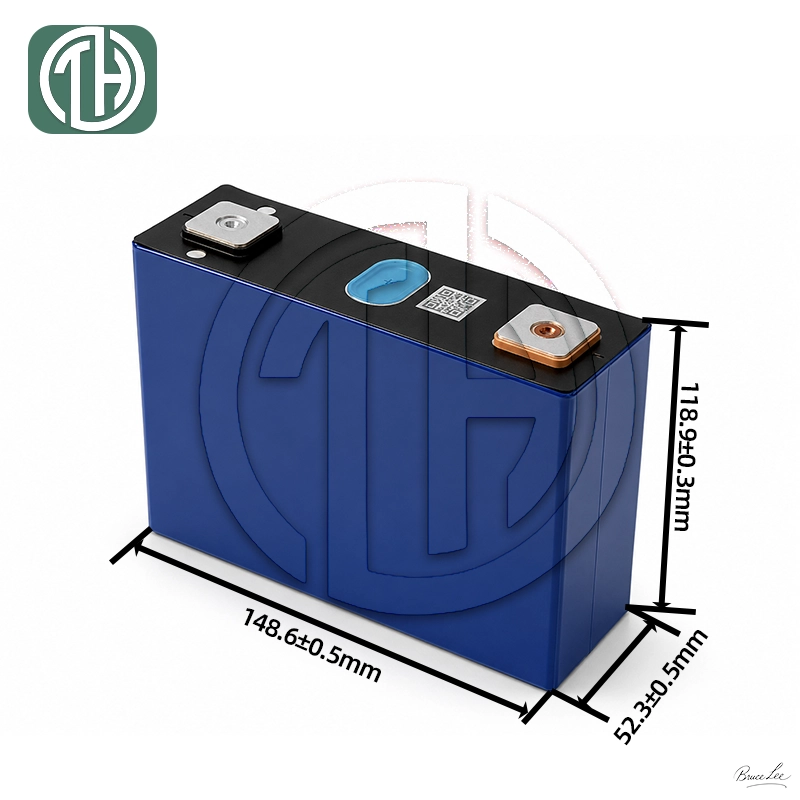

Dimensions: 52.3 ±0.5 mm x 148.6 ±0.5 mm x 115.83 ±0.5 mm. Replace the images below with confirmed dimension drawings or product renderings.
Due to its unique properties, our LFP battery cell is widely used in fields requiring ultra-high power and long life:
Meets the fast charge and discharge needs of buses for rapid energy replenishment.
Used for grid peak shaving and frequency regulation to enhance stability.
Efficiently integrates wind and solar energy to ensure a stable power supply.
Provides efficient energy for automated equipment and mobile robots.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
