LP33200173-125Ah delivers 125Ah capacity and 3.2V nominal voltage, providing stable and efficient energy for ESS and power applications.
Designed for thousands of charge and discharge cycles, helping reduce maintenance costs and extend battery system lifespan.
Utilizes LiFePO4 chemistry with excellent thermal stability, ensuring safe and reliable operation in demanding environments.
A practical alternative for discontinued or hard-to-source 125Ah battery cells used in ESS, EV, telecom, and industrial applications.
| Item | Parameter | Test Condition / Note |
|---|---|---|
| Model | LP33200173-125Ah | Lishen LiFePO₄ Prismatic Cell |
| Dimension (L × T × H) | 200 × 33.2 × 173 mm | Prismatic Cell Design |
| Nominal Voltage | 3.2V | Standard Discharge @25°C |
| Nominal Capacity | 125Ah | @1C, 25°C |
| Weight | Approx. 2.45kg | Typical Value |
| Energy | 400Wh | Nominal Energy |
| Internal Resistance | ≤0.5mΩ | Typical Value |
| Charging Cut-off Voltage | 3.65V | Standard Charging |
| Discharge Cut-off Voltage | 2.5V | Standard Discharge |
| Standard Charge Current | 125A (1C) | Recommended |
| Standard Discharge Current | 125A (1C) | Continuous |
| Cycle Life | ≥3,000 Cycles | 80% DOD, 25°C |
| Operating Temperature | Charging: 0 ~ 60°C Discharging: -30 ~ 60°C | Typical Operating Range |
| Storage Temperature | -20 ~ 35°C | Recommended Long-Term Storage |
| Terminal Type | M6 Threaded Terminal | Standard Configuration |
Note: The Lishen LP33200173-125Ah LiFePO₄ battery cell offers excellent safety, long cycle life, and stable performance. It is widely used in energy storage systems, electric vehicles, telecom backup power, and industrial battery applications. The cell is also suitable as a replacement for many discontinued or hard-to-source 125Ah battery platforms.

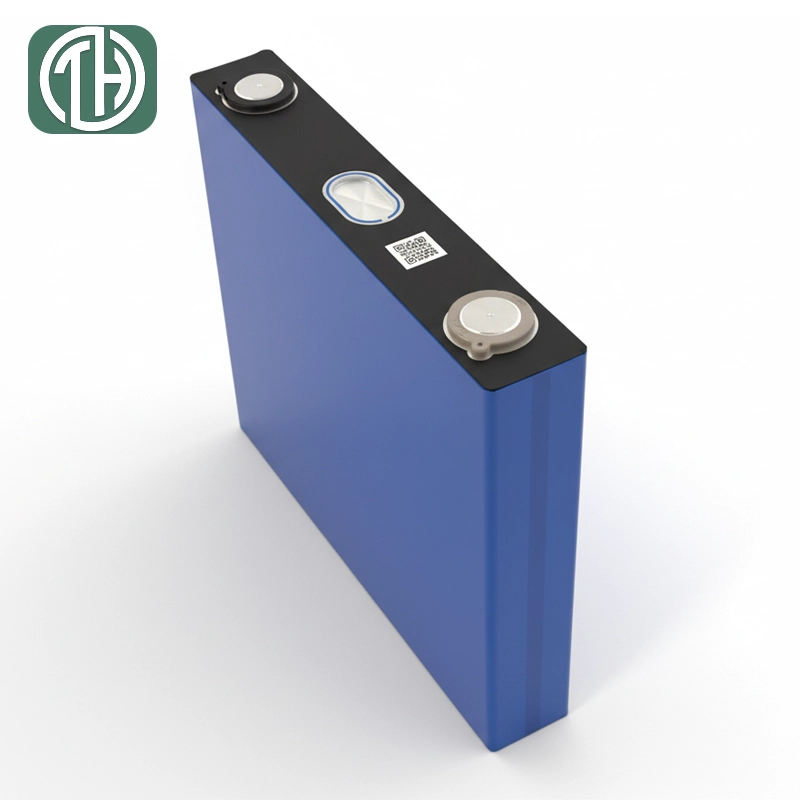

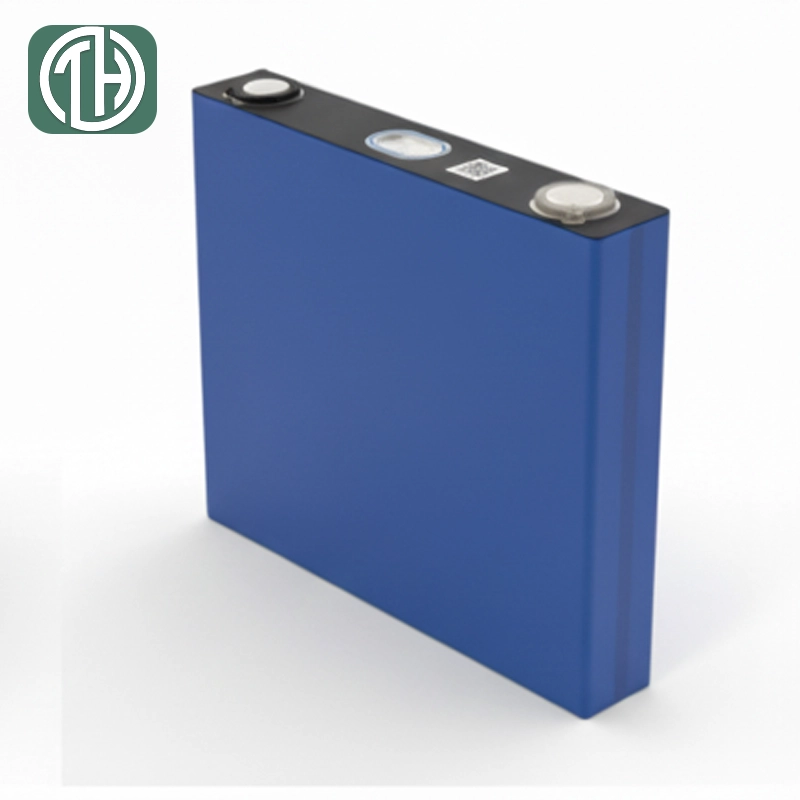

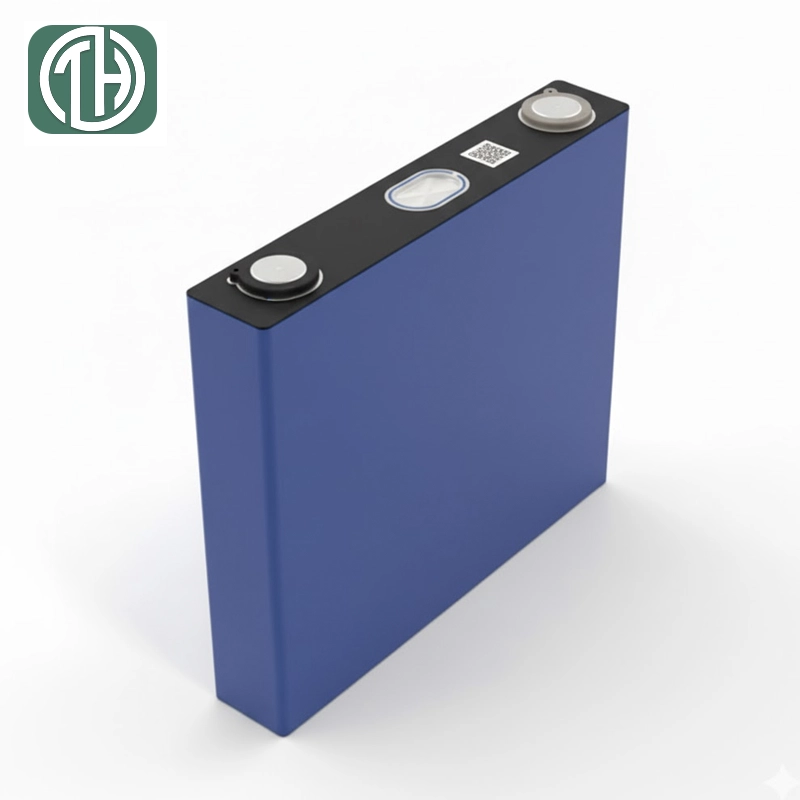

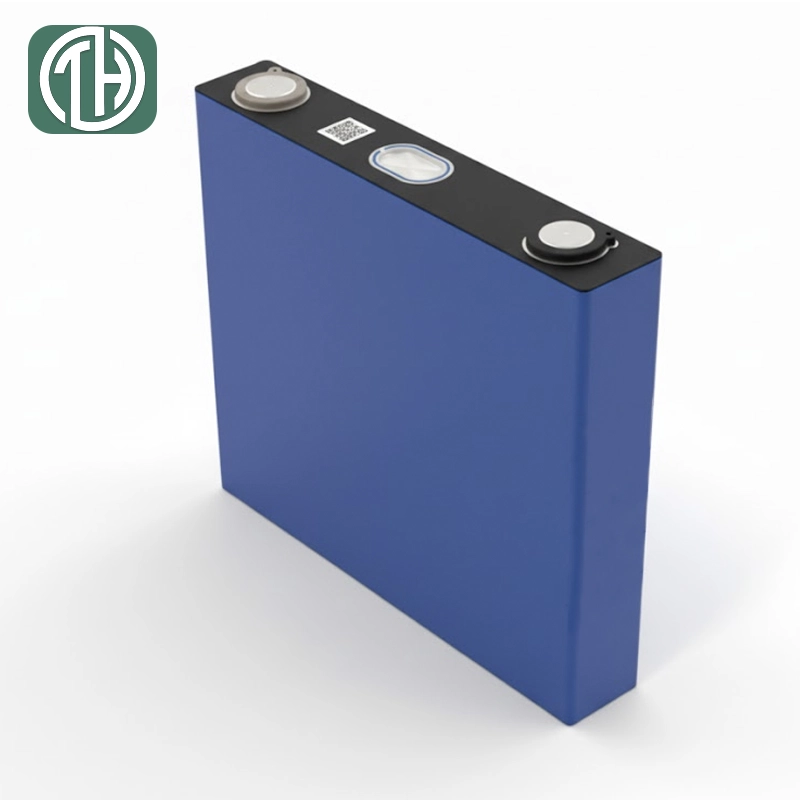

The Lishen LP33200173-125Ah LiFePO4 battery cell features a compact prismatic design with dimensions of 200 × 33.2 × 173 mm, making it suitable for ESS, EV, telecom, and industrial battery applications.
The label shown on the battery cell is for visual demonstration only. The actual product may vary and typically includes only essential identification markings.
Due to its unique properties, our LFP battery cell is widely used in fields requiring ultra-high power and long life:
Meets the fast charge and discharge needs of buses for rapid energy replenishment.
Used for grid peak shaving and frequency regulation to enhance stability.
Efficiently integrates wind and solar energy to ensure a stable power supply.
Provides efficient energy for automated equipment and mobile robots.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
