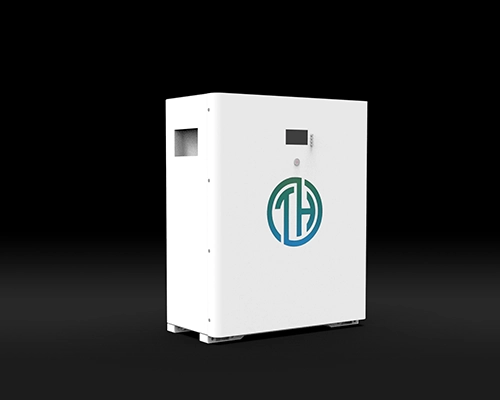

Modern and compact wall-mounted battery, easy to install and suitable for various residential environments.
Advanced lithium iron phosphate chemistry ensures long cycle life, excellent thermal stability, and high energy density.
Provides consistent power output for residential solar storage, backup power, and daily energy management; supports multi-unit expansion for larger systems.
Integrated smart BMS offers overcharge, over-discharge, and temperature protection, ensuring safe and reliable household operation.
| Item | Parameter | Unit |
|---|---|---|
| Battery Configuration | 16S1P LiFePO₄ Battery Pack | – |
| Nominal Capacity | 100 | Ah |
| Nominal Voltage | 51.2 | V |
| Nominal Energy | 5120 | Wh |
| Operating Voltage Range | 40.0 – 58.4 | V |
| Charging Cut-off Voltage | 58.4 | V |
| Discharging Cut-off Voltage | 40.0 | V |
| Max Continuous Charge / Discharge Current | 100 | A |
| Cycle Life | ≥6000 (25℃, 80% SOH) | Cycles |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) | – |

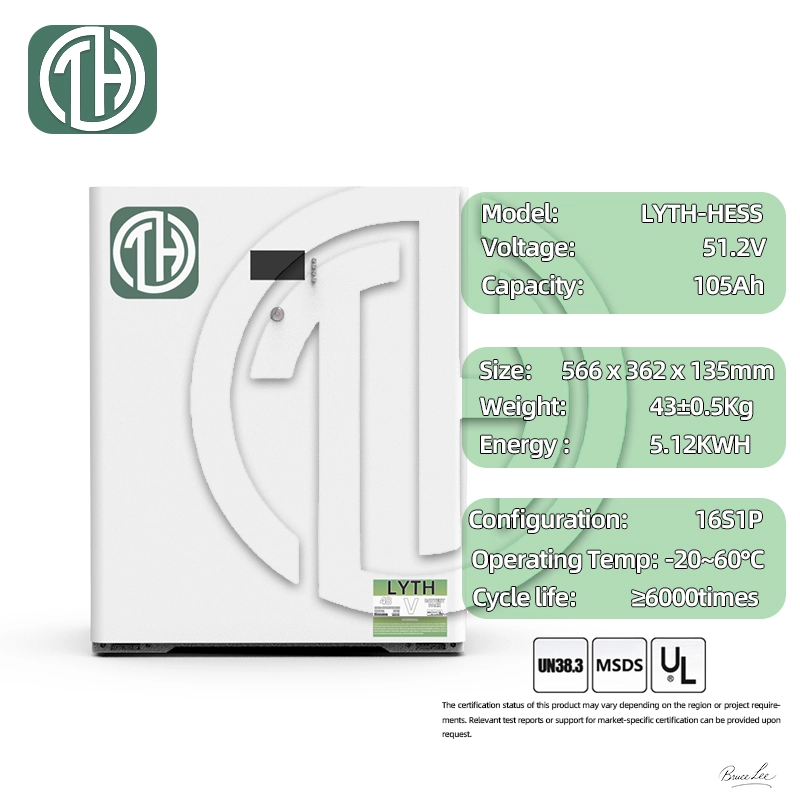

Physical dimensions and structural design of the wall-mounted 5.12kWh home energy storage battery.
The images are for reference only. The actual product appearance may vary slightly depending on production batches and configuration.

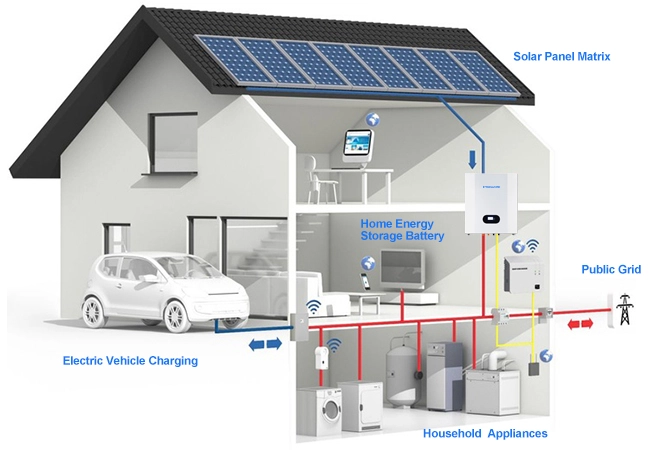

Designed for low-voltage energy storage, this wall-mounted battery is widely used in residential and light commercial energy systems:

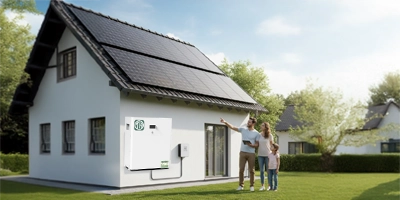

Stores excess solar energy during the day and supplies reliable power for household use at night.
Provides stable backup electricity during grid outages, ensuring uninterrupted daily life.
Ideal for off-grid or hybrid solar systems in remote areas with unstable or unavailable grid power.
Suitable for shops, offices, and small businesses to manage energy usage and reduce electricity costs.
Works with inverters and EMS to optimize energy consumption and improve self-consumption rates.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
