Built from modular 5kWh battery units, enabling flexible cabinet-based configuration and easy expansion to achieve 60kWh or higher system capacity for commercial and industrial applications.
Supports connection of multiple modules in series with a dedicated high-voltage control box, allowing higher system voltage and power output for large-scale energy storage.
Long-life LiFePO₄ cells provide excellent thermal stability, long cycle life, and enhanced safety for industrial energy storage systems.
Each module features a smart BMS with multi-level protection against overcharge, over-discharge, overcurrent, short circuit, and temperature anomalies, ensuring safe and reliable operation.
| Item | Parameter | Unit |
|---|---|---|
| System Configuration | 12 × 5kWh stacked LiFePO₄ modules | – |
| Nominal Capacity | 100 | Ah per module |
| Nominal System Voltage | 614.4 | V |
| Nominal Energy | 60 | kWh |
| Operating Voltage Range | 537 – 680 | V |
| Charging Cut-off Voltage | 700 | V |
| Discharging Cut-off Voltage | 480 | V |
| Standard / Max Charge Current | 50 / 100 | A |
| Max Continuous Discharge Current | 100 | A |
| Cycle Life | ≥6000 (25℃, 80% DOD) | Cycles |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) | – |
| Communication Interface | CAN | – |
| Cooling Method | Natural + Forced Air | – |

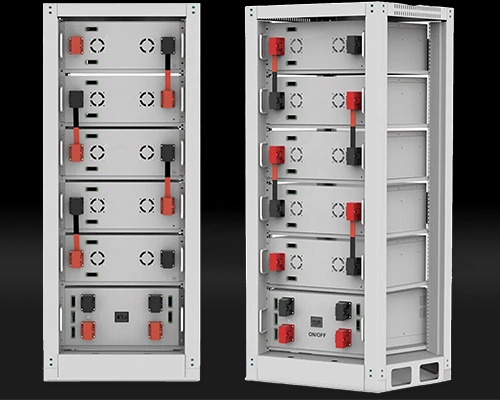

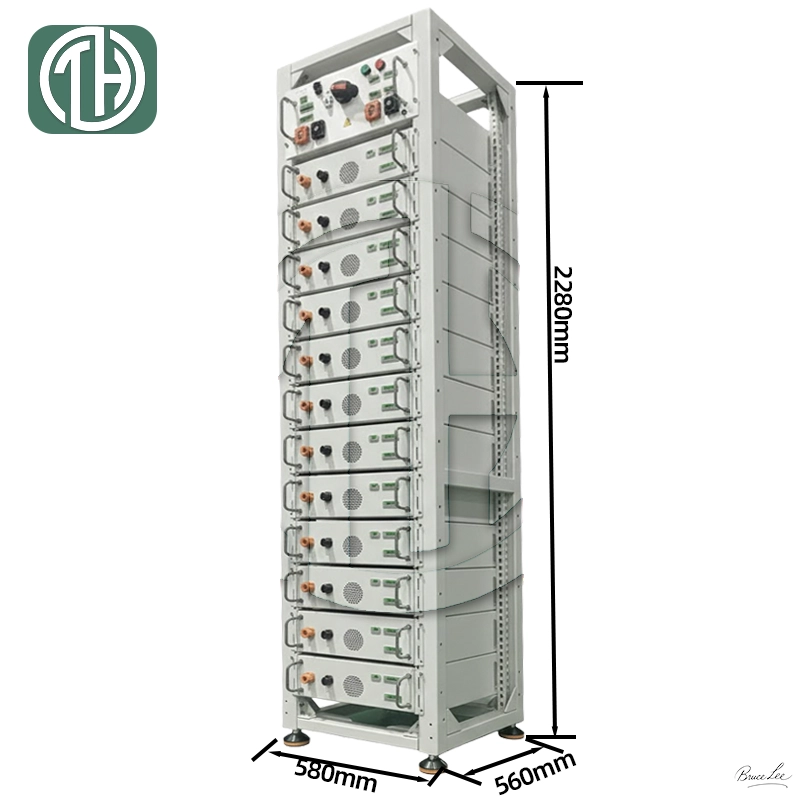

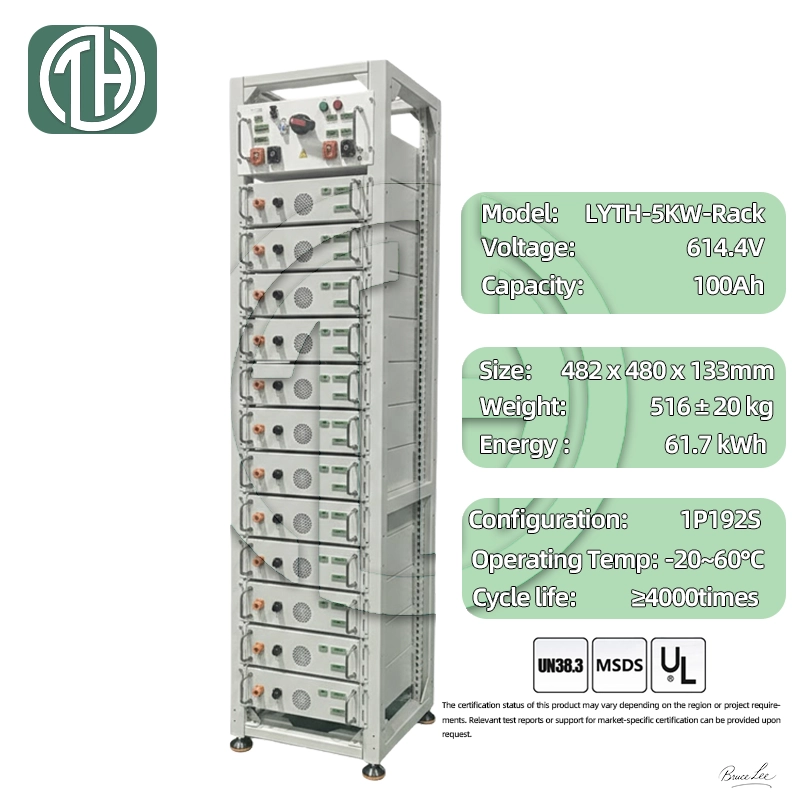

Physical dimensions and structural design of the 60kWh LiFePO₄ commercial energy storage system, built from 12 modular 5kWh stacked battery units for cabinet-based industrial applications.
Images are for reference only. Actual product appearance and dimensions may vary depending on production batches, system configuration, or customization.
Designed for commercial and industrial energy storage, this 60kWh LiFePO₄ system built from modular 5kWh stacked units is ideal for high-demand, scalable power solutions:

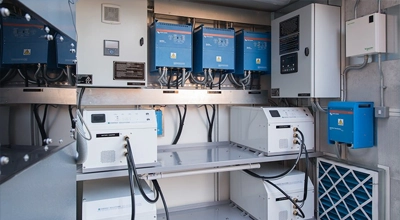

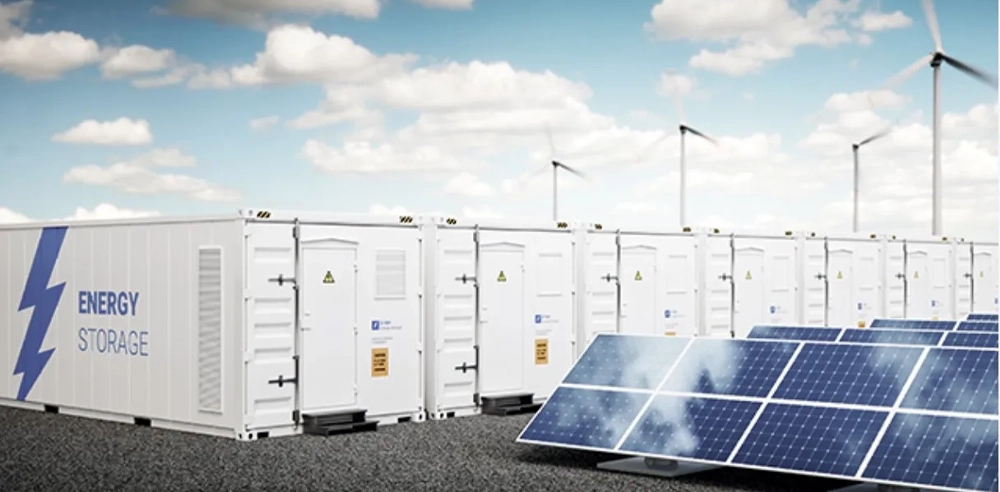

Reliable energy for off-grid or hybrid solar installations, supporting modular stacking for scalable capacity.

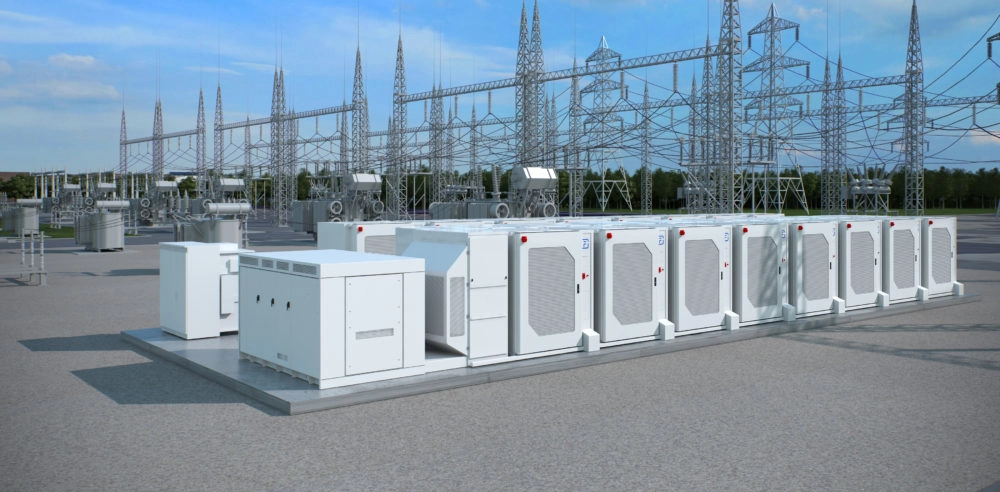

High-performance energy storage for factories, warehouses, and office buildings, with expandable modules for flexible system sizing.
Stable backup power for telecom stations, data centers, and critical facilities, supporting parallel module connection for extended runtime.
Provides uninterruptible power for servers and sensitive electronics, with modular design enabling scalable industrial energy capacity.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
