1P6S configuration with 117Ah ensures long-lasting energy for EVs and ESS applications.
High-quality NMC cells maintain consistent voltage and discharge performance under load.
Supports up to 2C continuous discharge and fast charging to minimize downtime.
Equipped with protective circuits and thermal management to prevent overheat and short circuits.

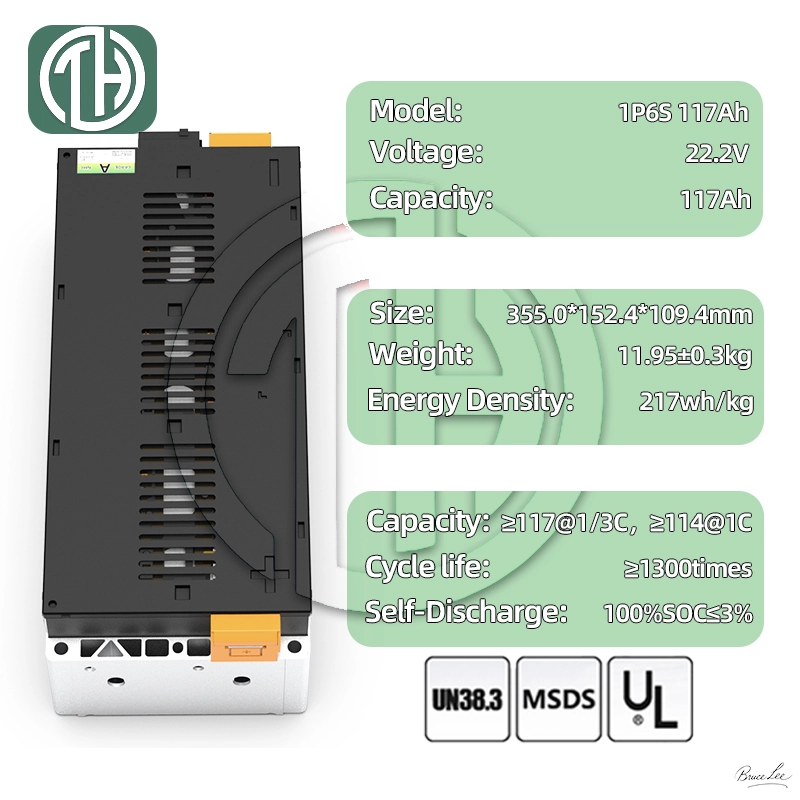

| Item | Parameter | Unit |
|---|---|---|
| Nominal Capacity | ≥117@1/3C，≥114@1C | Ah |
| Nominal Voltage | 22.5@1/3C，22.2@1C | V |
| Nominal Energy | ≥2632（1/3C），≥2530（1C） | Wh |
| Usable Energy | ≥2368（1/3C），≥2277（1C）90%DOD | Wh |
| Charging cut-off voltage | 26.4(4.4V） | V |
| Discharging cut-off voltage | 16.8(2.8V） | V |
| Max Continuous discharge current | 228A@25℃ | A |
| Instantaneous Discharge Current (3s) | 600A | 15C |
| Self-Discharge | 25℃ 100%SOC≤3% | %/month |
| 25℃ Standard Cycle | ≥1300（25℃，5~95%DOD，0.5C/1C，SOH80%） | Cycles |

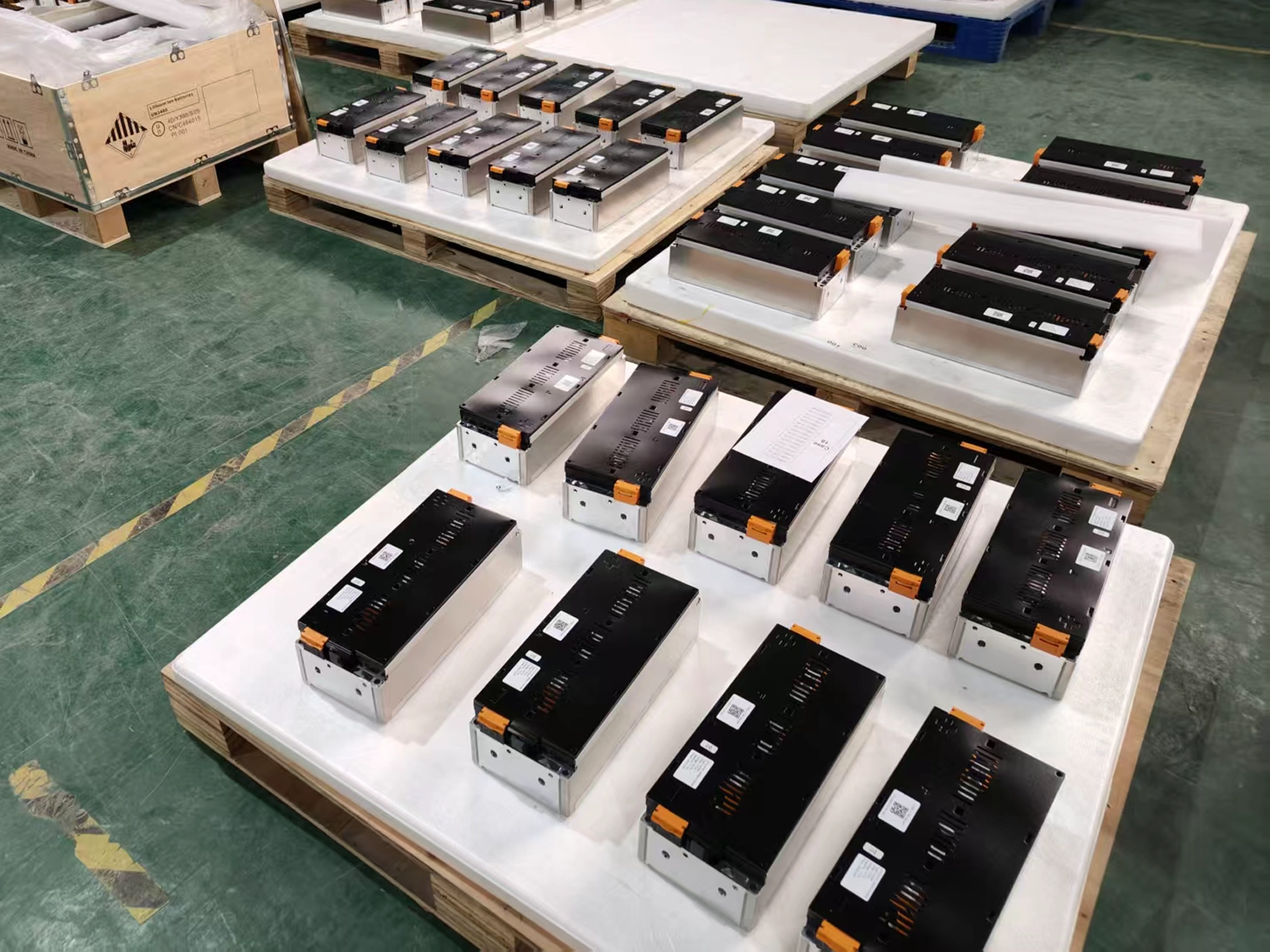

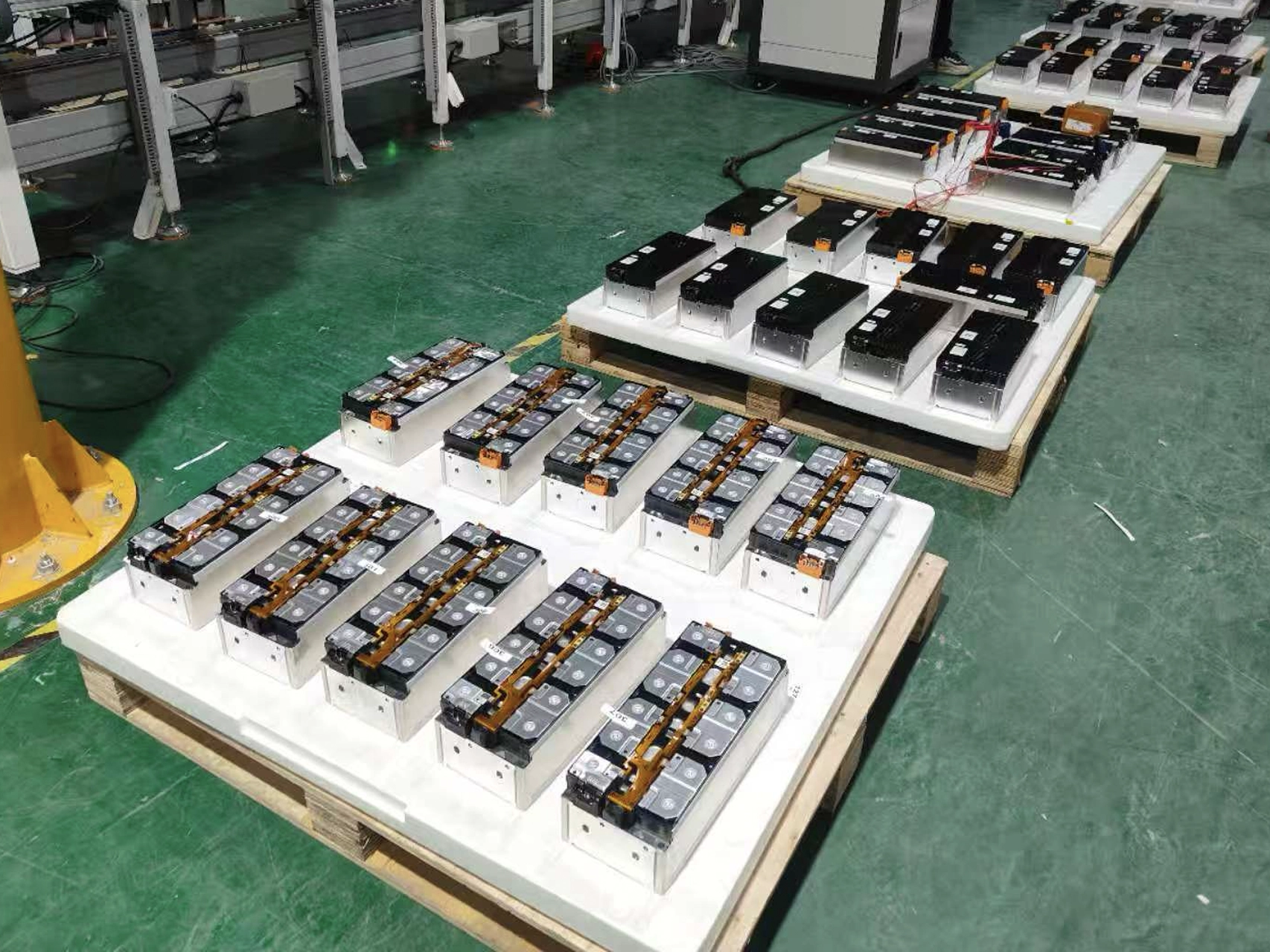

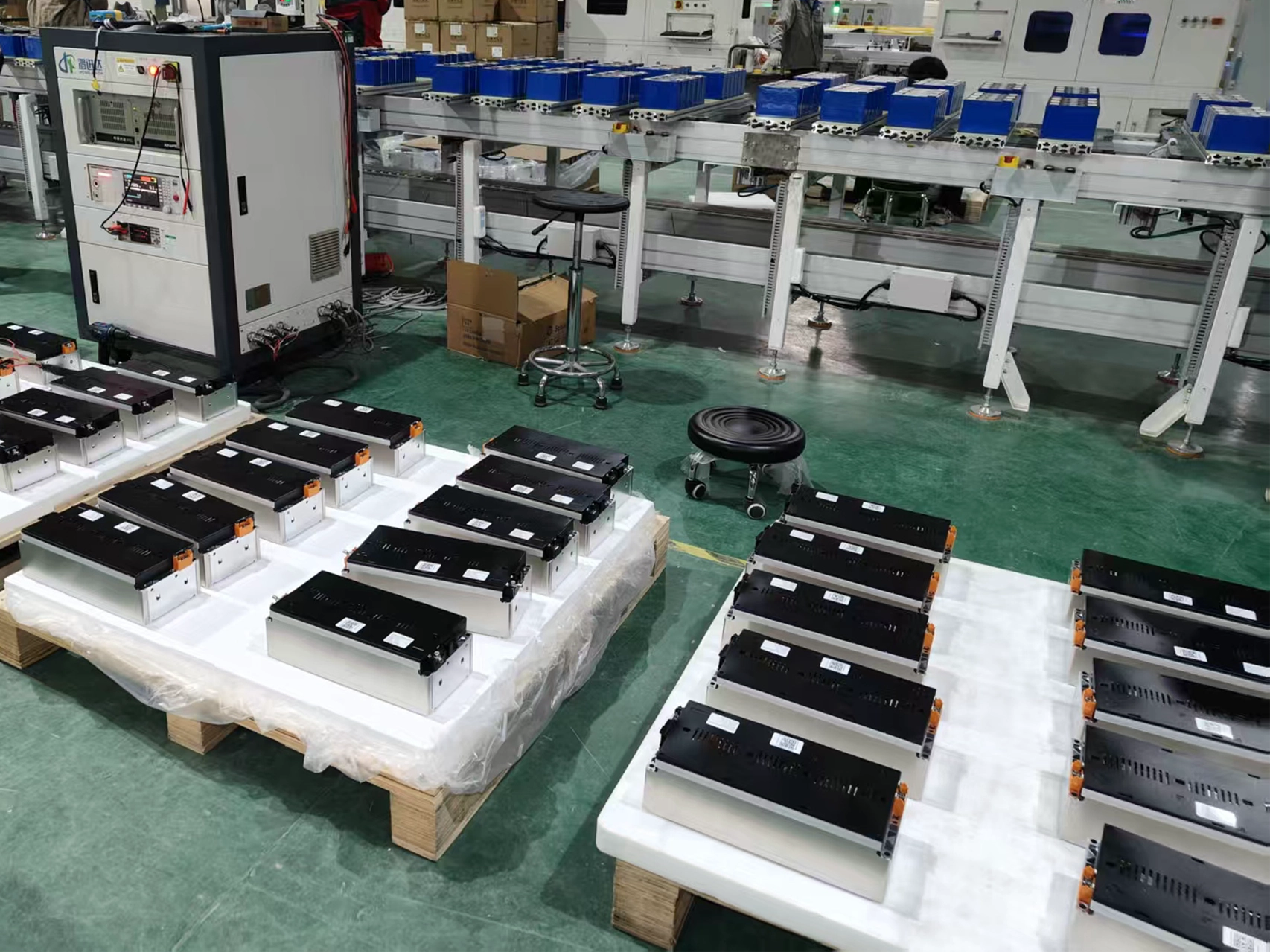

Authentic images from our factory, products, and projects — demonstrating our real capabilities, quality standards, and commitment to reliable energy solutions.
Note: The actual products are captured in our factory. Color may slightly vary due to lighting, but specifications remain consistent.

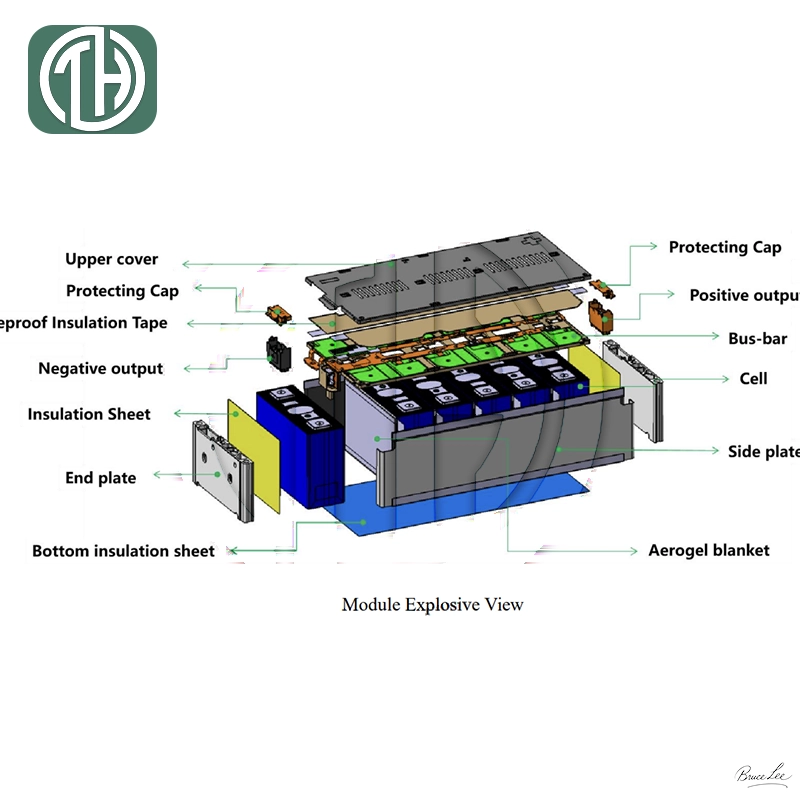

Shows the physical dimensions and structural design of the 1P6S 117Ah NMC battery module.
Due to its unique properties, our 117Ah NMC battery cell is widely used in fields requiring ultra-high power and long life:
Our battery cells are used in electric vehicles to provide reliable, high-performance power for efficient transportation.
Provides robust power for electric motorcycles, enhancing speed and range for urban commuting and adventure.
Powers electric forklifts, ensuring high efficiency and long operating hours for logistics and warehouse operations.
Designed for electric boats, offering silent and powerful propulsion for marine applications.
Optimized for golf carts, providing long-lasting, dependable power for an enjoyable ride.
Powers construction vehicles, delivering reliable and durable energy for heavy-duty work environments.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
