Provides up to 177Ah nominal capacity at 1/3C, suitable for power battery systems that require stable cell-level energy support.
Uses NCM523 cathode material to balance energy density, discharge capability, and integration value for EV battery projects.
Supports 348A continuous discharge and 500A pulse discharge at 30 seconds for demanding power application scenarios.
Compact prismatic dimensions and controlled weight help improve module arrangement, pack layout, and engineering coordination.

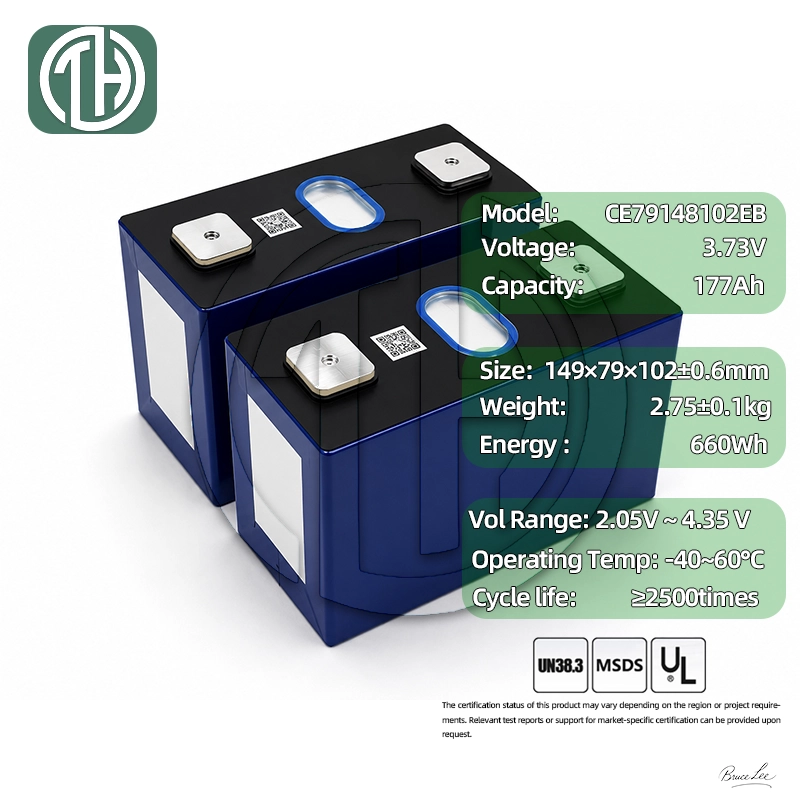

| Item | Parameter | Test Condition / Note |
|---|---|---|
| Model | CE79148102EB-177Ah | REPT product model |
| Battery Type | Li-ion Prismatic Cell | Power battery cell |
| Cathode Material | NCM523 | Confirmed by datasheet |
| Nominal Capacity | >=177Ah | 1/3C, room temperature |
| Nominal Capacity | >=174Ah | 1C, room temperature |
| Nominal Voltage | 3.73V | 1/3C |
| Nominal Voltage | 3.66V | 1C |
| Operating Voltage Range | 2.8V-4.35V | Temperature above -5C |
| Max Continuous Discharge Current | 348A | Datasheet value |
| Max Pulse Discharge Current | 500A | 30s pulse discharge |
| Max Continuous Charge Current | 210A | Datasheet value |
| Max Pulse Charge Current | 348A | 10s pulse charge |
| Dimensions | 79.22 ±0.3 mm x 149.10 ±0.6 mm x 102.77 ±0.6 mm | Thickness x Width x Length |
| Weight | 2.75 ±0.1 kg | Datasheet value |
| Energy Density | 240Wh/kg | 1/3C |
| Volume Energy Density | 550Wh/L | 1/3C |
| Internal Resistance | <=0.6 mOhm | 1KHz |
| Charge Temperature | -20C to 55C | Working temperature |
| Discharge Temperature | -30C to 55C | Working temperature |
| Storage Temperature | -30C to 55C | Storage condition |
| Recommended SOC Range | 2%-97% | Datasheet recommendation |
The values above are based on the supplied REPT datasheet. Capacity and nominal voltage are listed separately for 1/3C and 1C conditions where applicable.

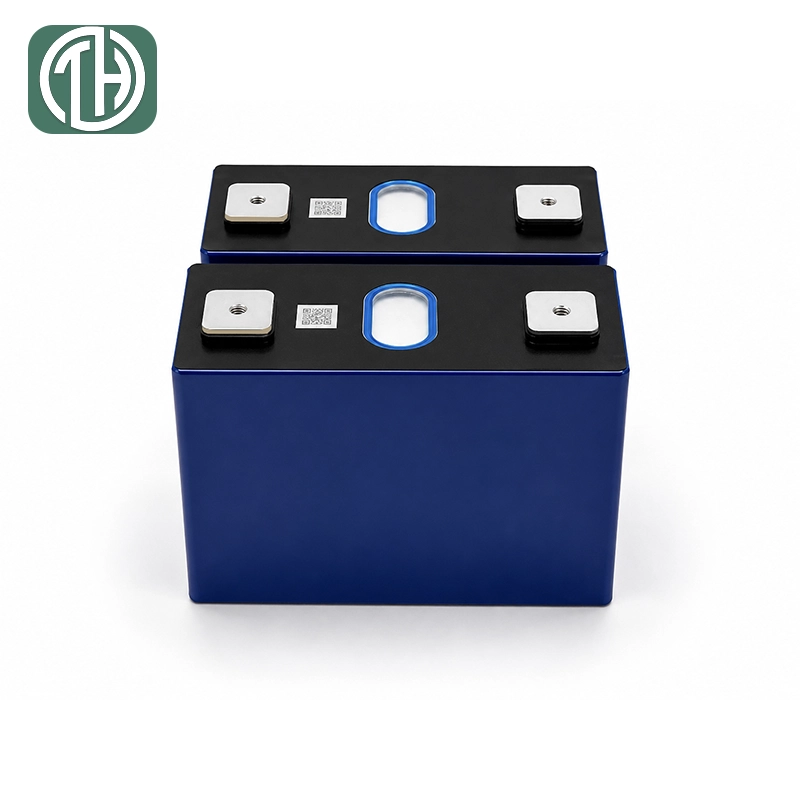

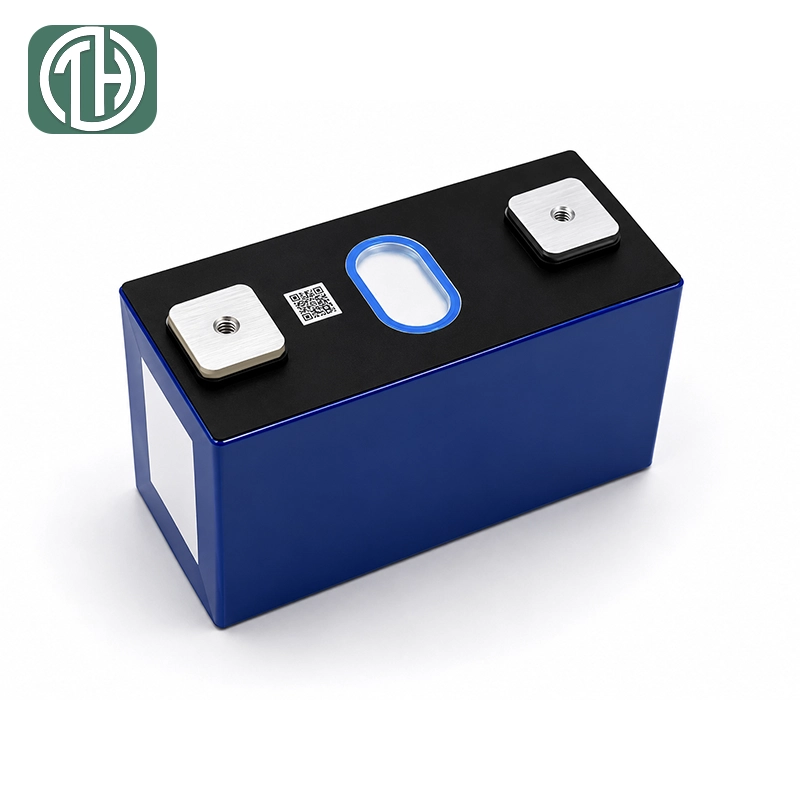

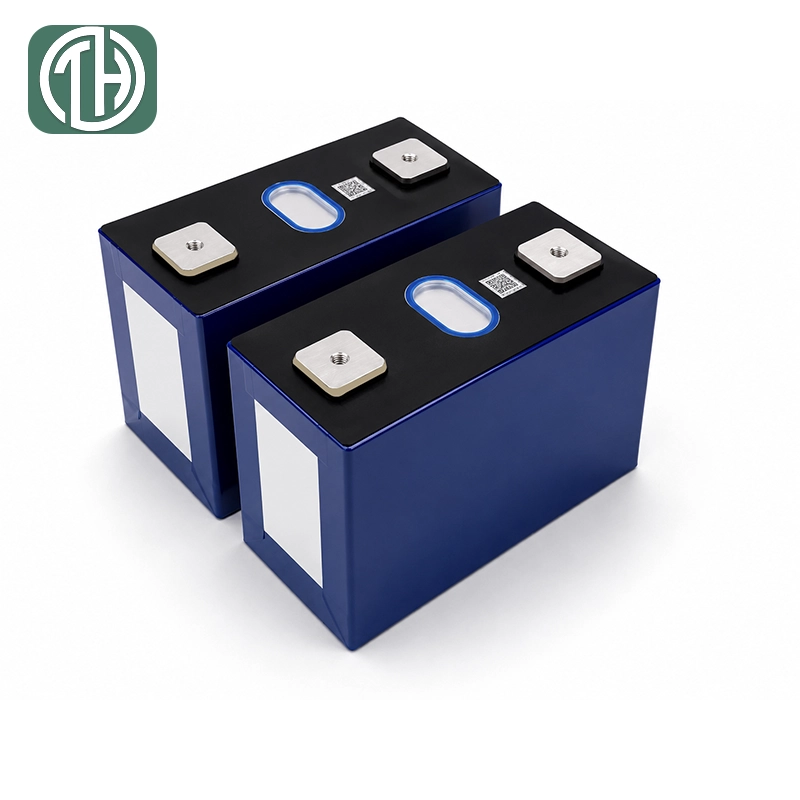

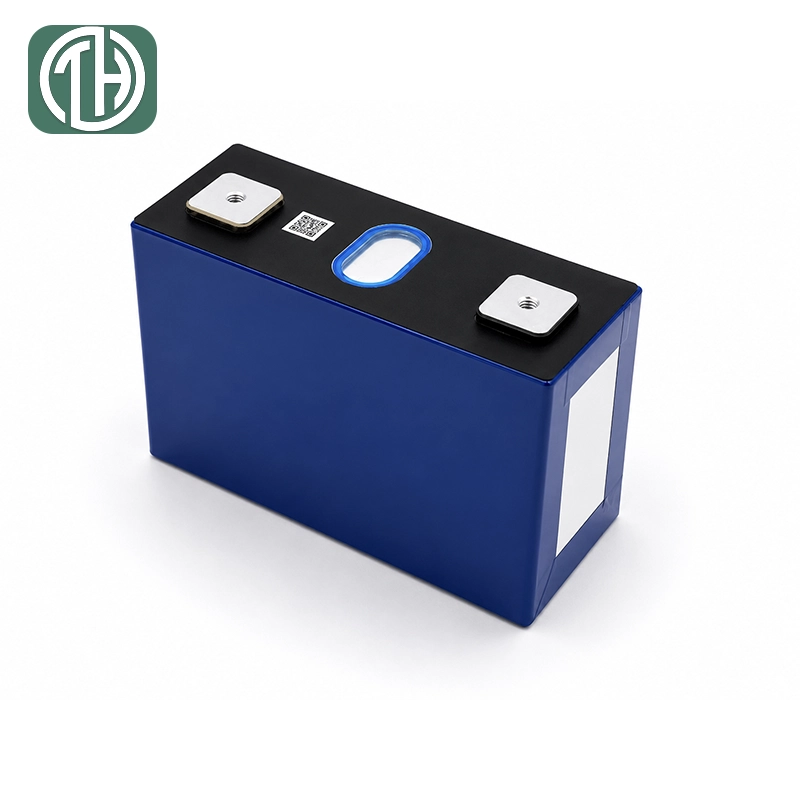

The REPT CE79148102EB battery cell uses a compact prismatic structure suitable for module arrangement and custom battery pack integration.

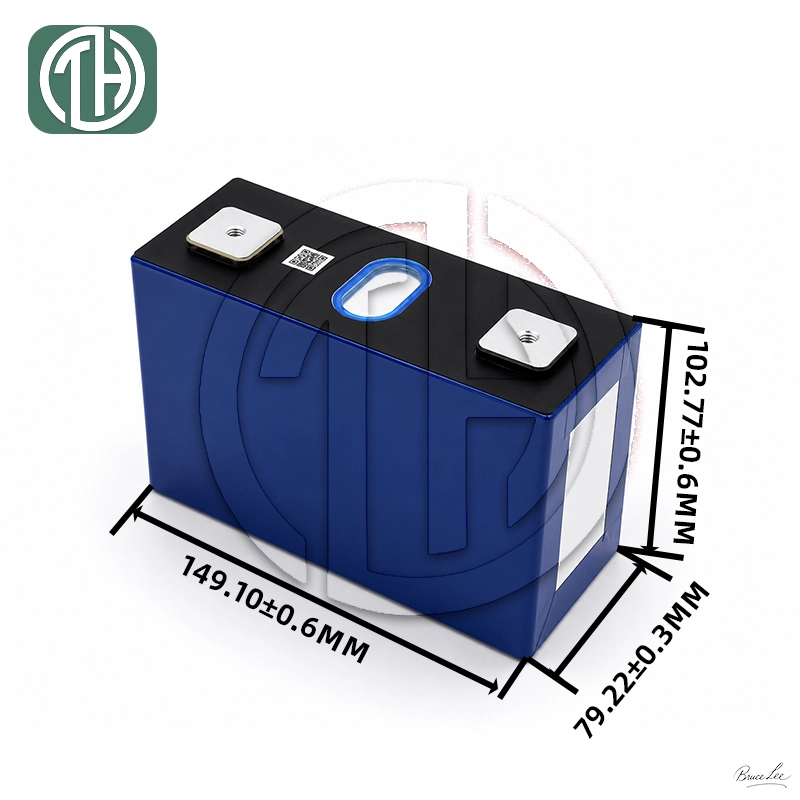

Dimensions: 79.22 ±0.3 mm x 149.10 ±0.6 mm x 102.77 ±0.6 mm. Please replace the images below with confirmed dimension drawings or product renderings.

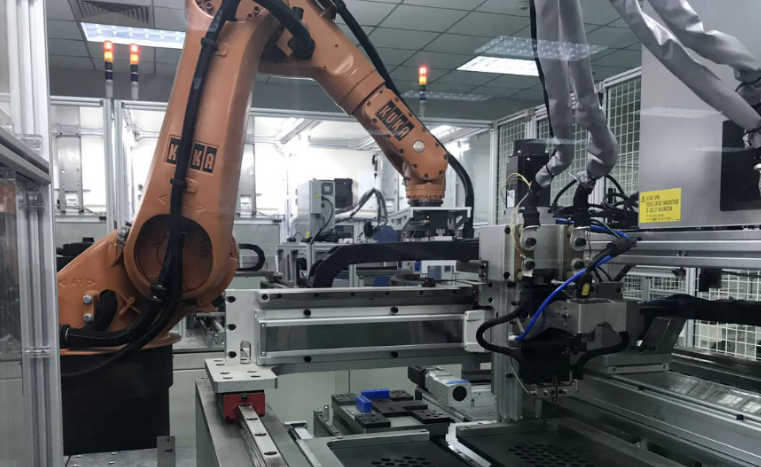

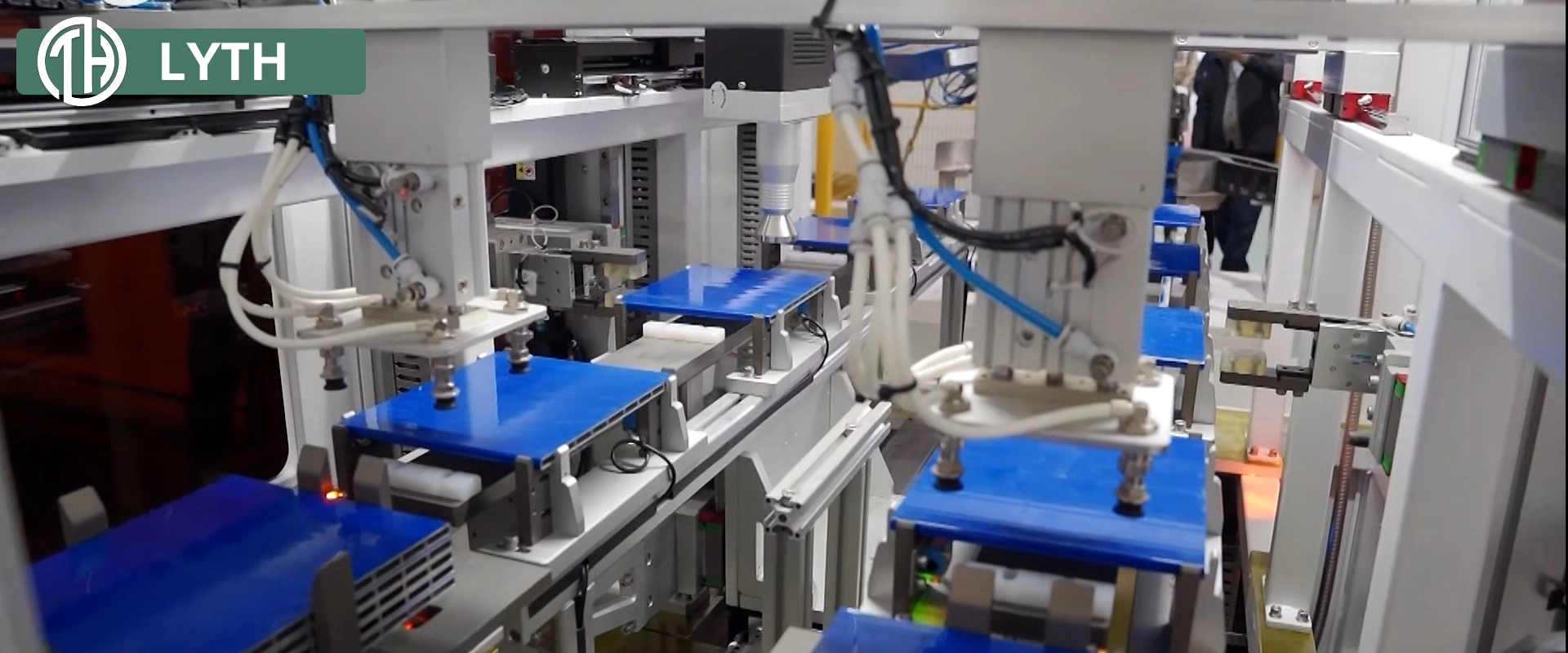

This prismatic battery cell is suitable for EV battery modules, custom lithium battery packs, mobility electrification systems, and other battery integration projects that require consistent cell performance and practical engineering compatibility.
Suitable for module-level battery system development where stable electrical performance and compact structure are required.
Supports custom pack projects that require branded battery cells for controlled layout, current output, and pack integration.
Can be used in mobility electrification systems that require reliable energy support and practical engineering compatibility.
Well suited for sample evaluation, prototype development, and project-based lithium battery integration programs.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
