High-capacity LiFePO₄ prismatic battery cell with stable voltage output, designed for energy storage systems and industrial applications.
Designed for long service life with ≥3500 cycles, suitable for ESS and long-term energy storage operation.
LiFePO₄ chemistry combined with robust aluminum housing provides excellent thermal stability and enhanced safety.
Consistent cell performance and low internal resistance enable efficient module and pack integration.

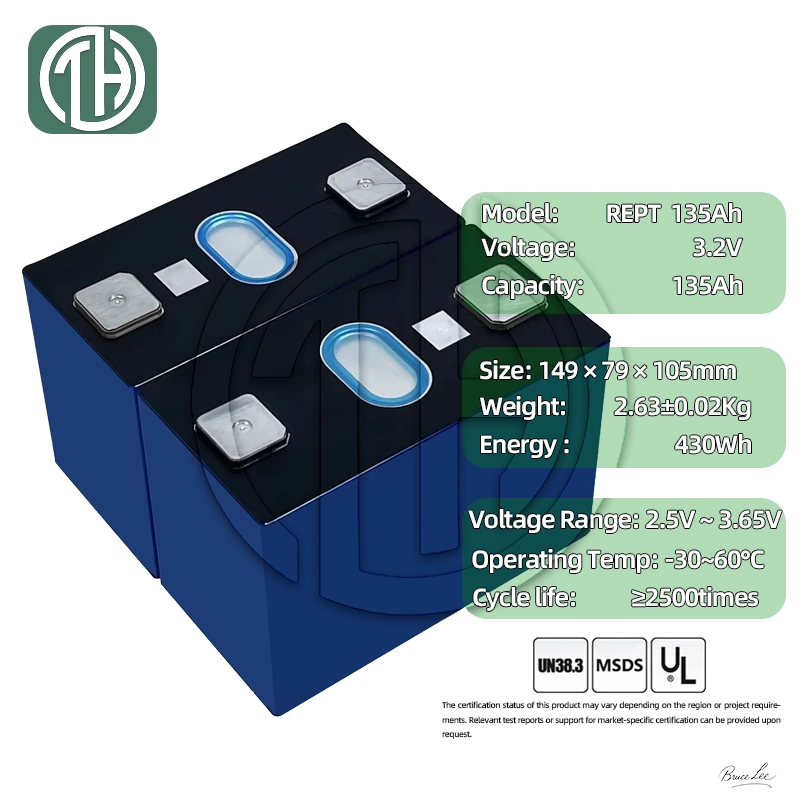

| Item | Parameter | Remarks |
|---|---|---|
| Rated Capacity | 135 Ah | Standard Discharge |
| Nominal Voltage | 3.2 V | LiFePO₄ Typical |
| Rated Energy | ≈432 Wh | Nominal Condition |
| Cell Weight | ≈2.58 kg | Typical |
| Mass Energy Density | ≈167 Wh/kg | Typical Value |

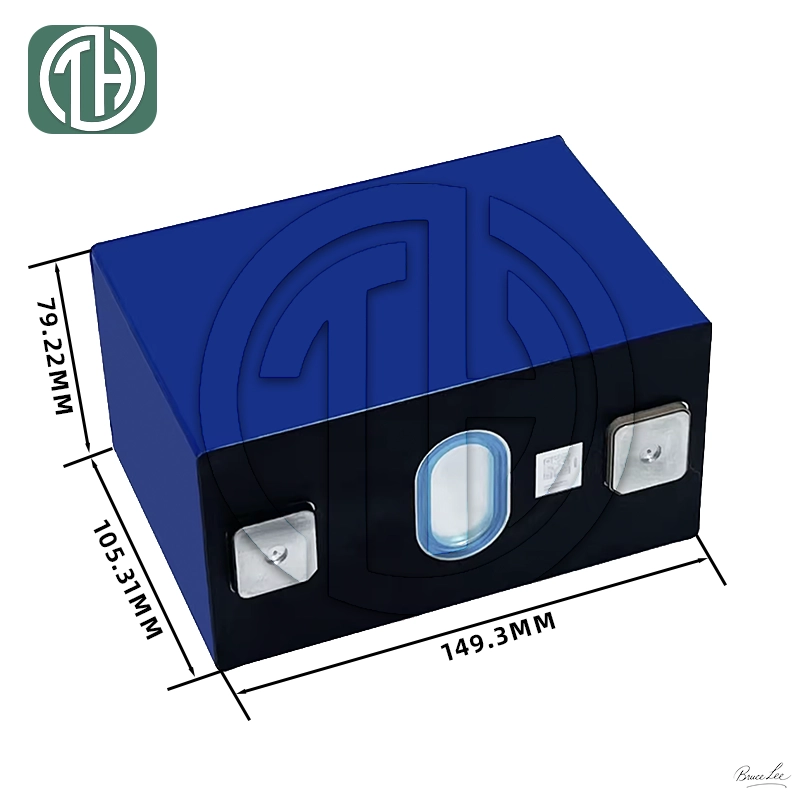

| Cell Dimensions | ≈148.6 × 79.3 × 105.3 mm | Prismatic Cell (L×W×H) |
| Internal Resistance | ≤0.50 mΩ | @1 kHz, 25°C |
| Charging Temperature | 0~55°C | Recommended |
| Discharging Temperature | -30~55°C | / |
| Storage Temperature | -20~55°C | / |
| Voltage Range | 2.0~3.65 V | Standard Operating Window |
Note: Specifications are based on typical test conditions and reference data. Actual performance may vary depending on application, system design, and operating parameters. Final specifications are subject to supplier confirmation.

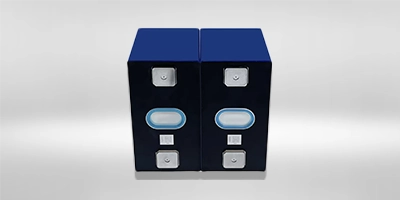

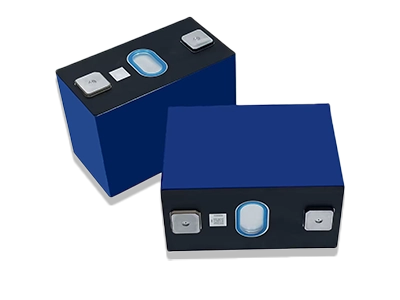

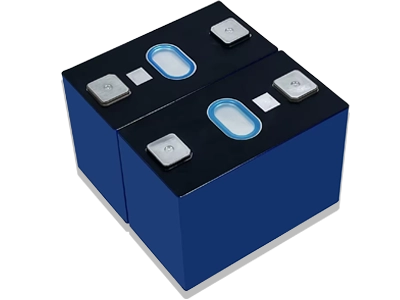

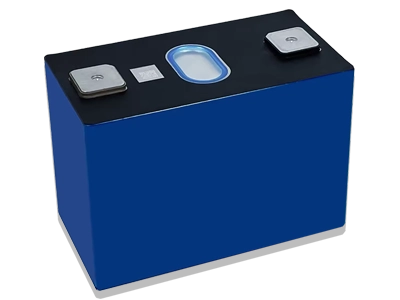

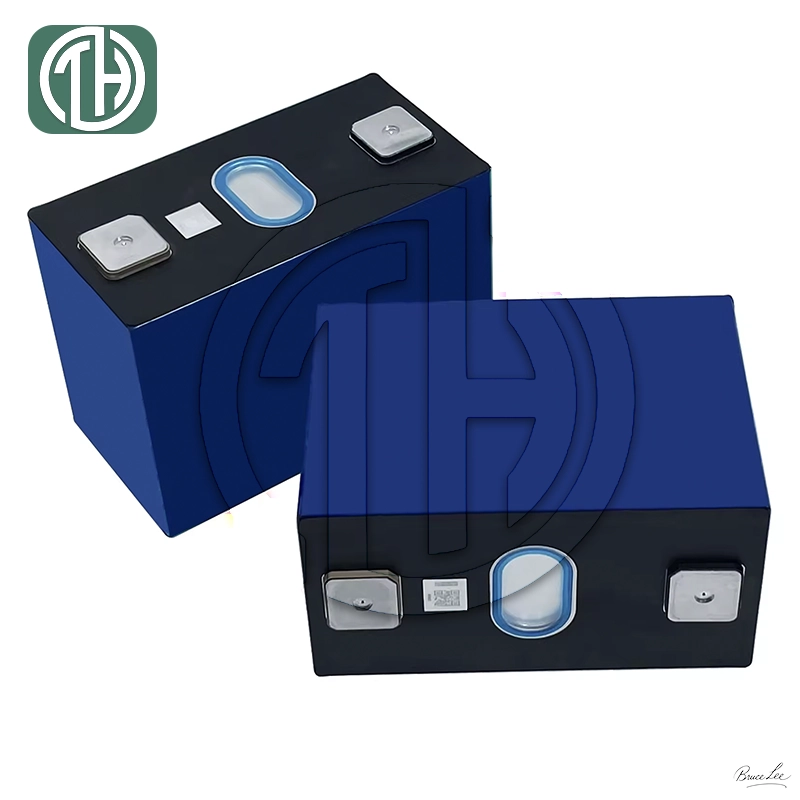

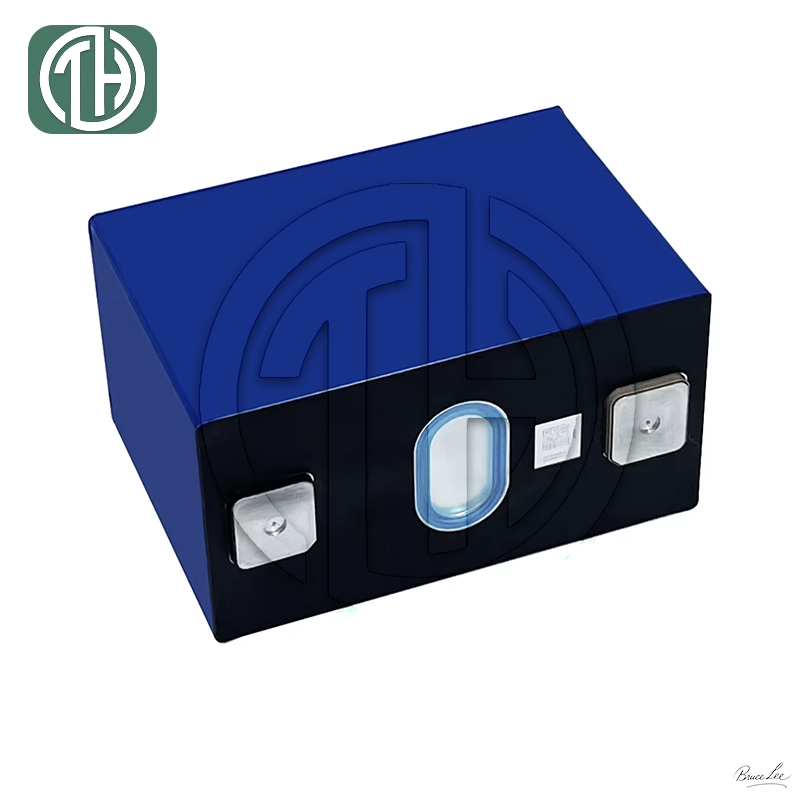

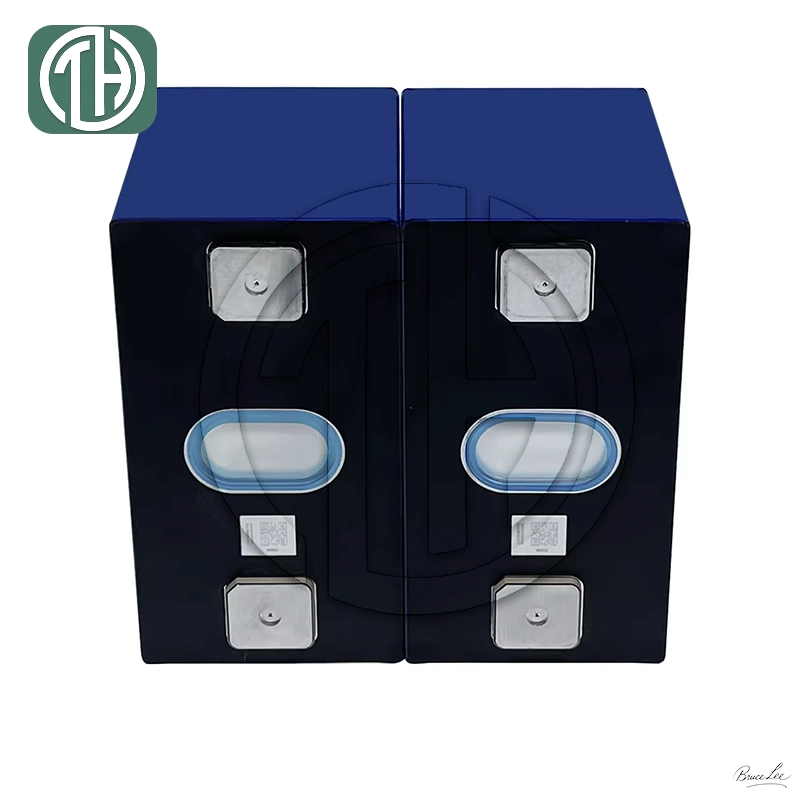

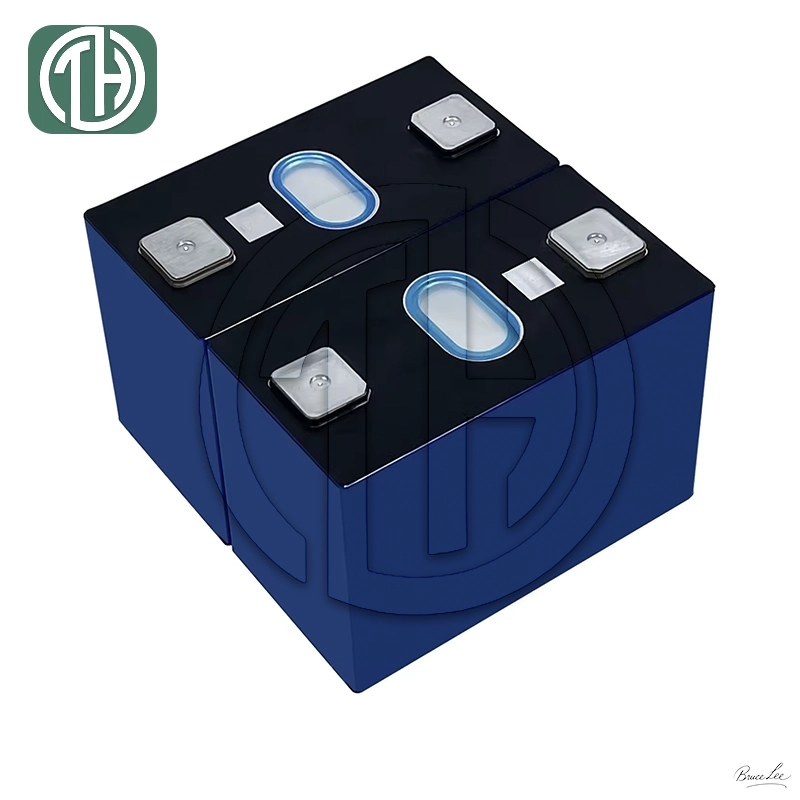

135Ah LiFePO₄ prismatic battery cell designed for energy storage systems, solar storage, UPS, and industrial module and pack integration.
Images are for reference only. Actual product appearance and markings may vary.
Due to its unique properties, our LFP battery cell is widely used in fields requiring ultra-high power and long life:
Meets the fast charge and discharge needs of buses for rapid energy replenishment.
Used for grid peak shaving and frequency regulation to enhance stability.
Efficiently integrates wind and solar energy to ensure a stable power supply.
Provides efficient energy for automated equipment and mobile robots.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
