High-capacity NMC prismatic cell with elevated energy density, designed for EV and automotive systems.
Delivers strong and stable power output for dynamic automotive load conditions.
Robust NMC cell design ensures safe and reliable operation under vehicle conditions.
Low internal resistance and uniform cells enable smooth module and pack assembly.
| Item | Parameter | Remarks |
|---|---|---|
| Rated Capacity | 156 Ah | Standard Discharge |
| Nominal Voltage | 3.67 V | NMC Typical |
| Rated Energy | ≈572 Wh | Nominal Condition |
| Cell Weight | ≈2.29 kg | Typical |
| Mass Energy Density | ≈250 Wh/kg | Typical Value |

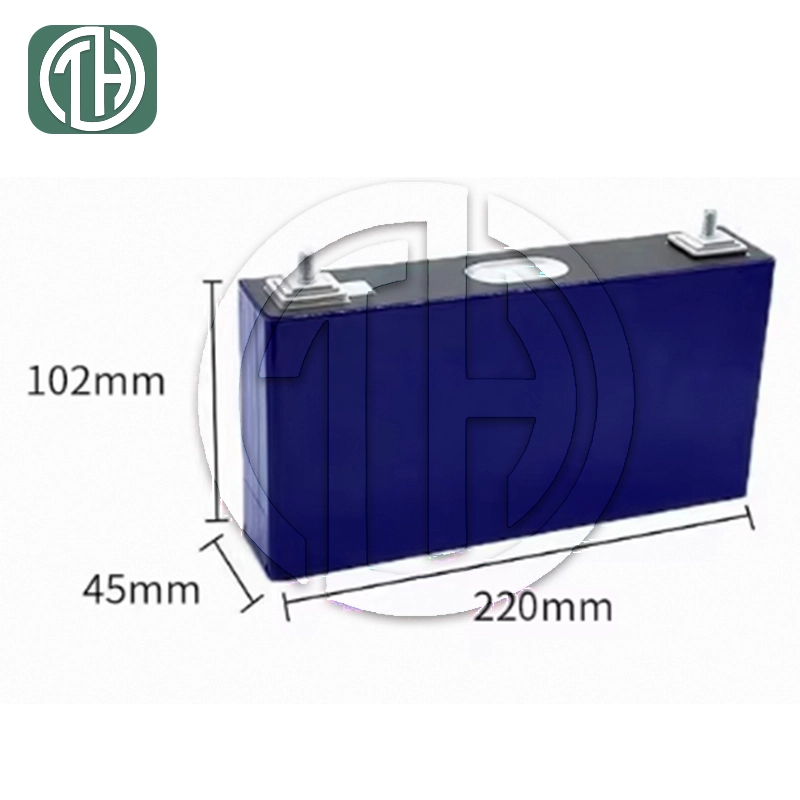

| Cell Dimensions | 220.8 × 101.5 × 44.6 mm | Prismatic Cell (L×W×H) |
| Internal Resistance | ≤ 0.6 mΩ | AC, 1 kHz |
| Charging Temperature | -20~55°C | / |
| Discharging Temperature | -30~55°C | / |
| Storage Temperature | -20~45°C | / |
| Voltage Range | 2.75~4.2 V | Standard Operating Window |
Note: Specifications are based on public reference data and typical test conditions. Actual performance may vary depending on application. Refer to supplier-confirmed documentation for module or pack design.

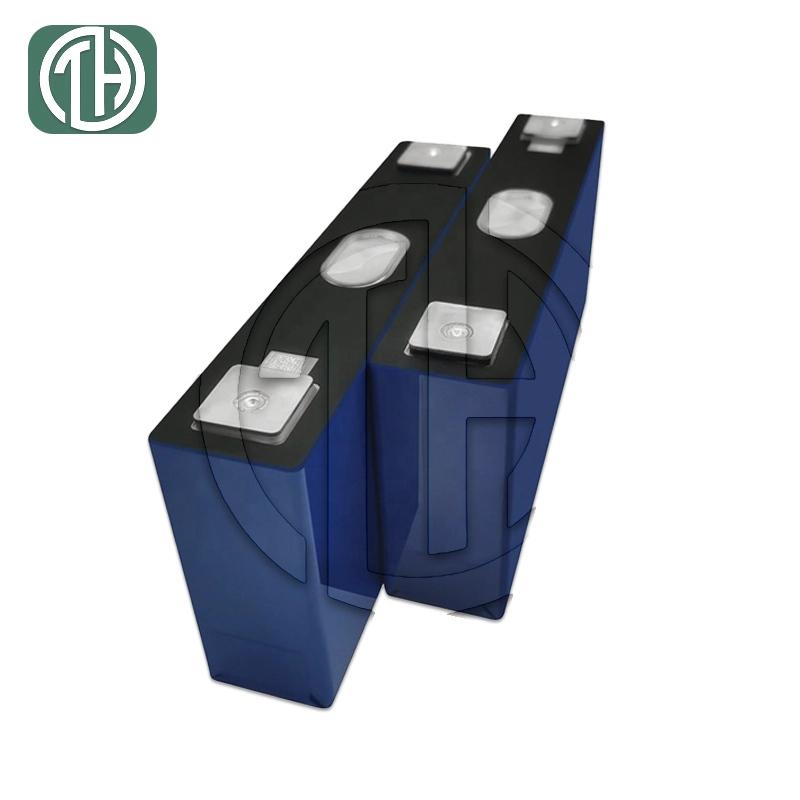

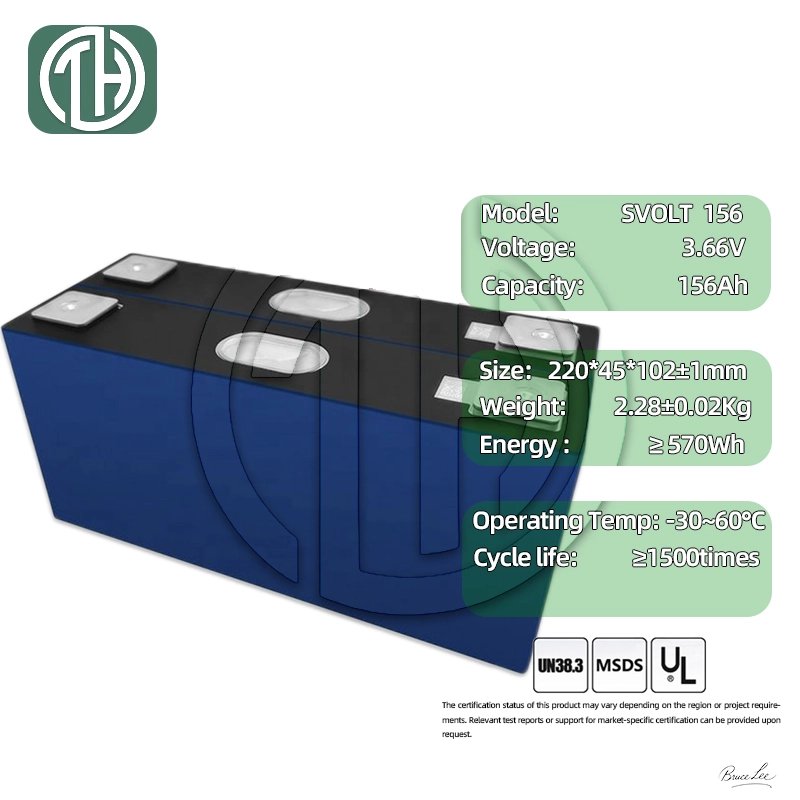

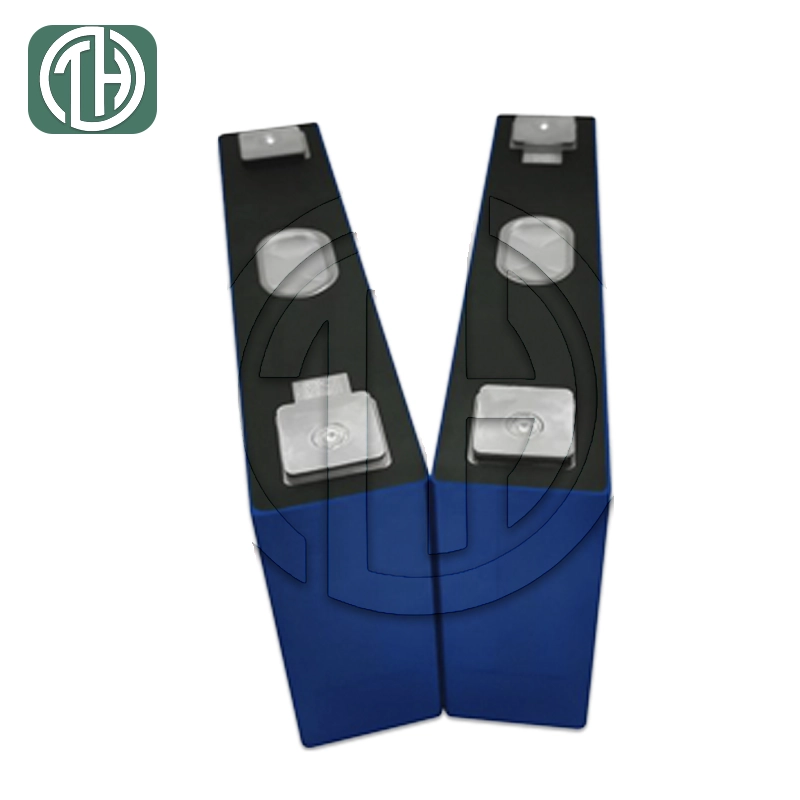

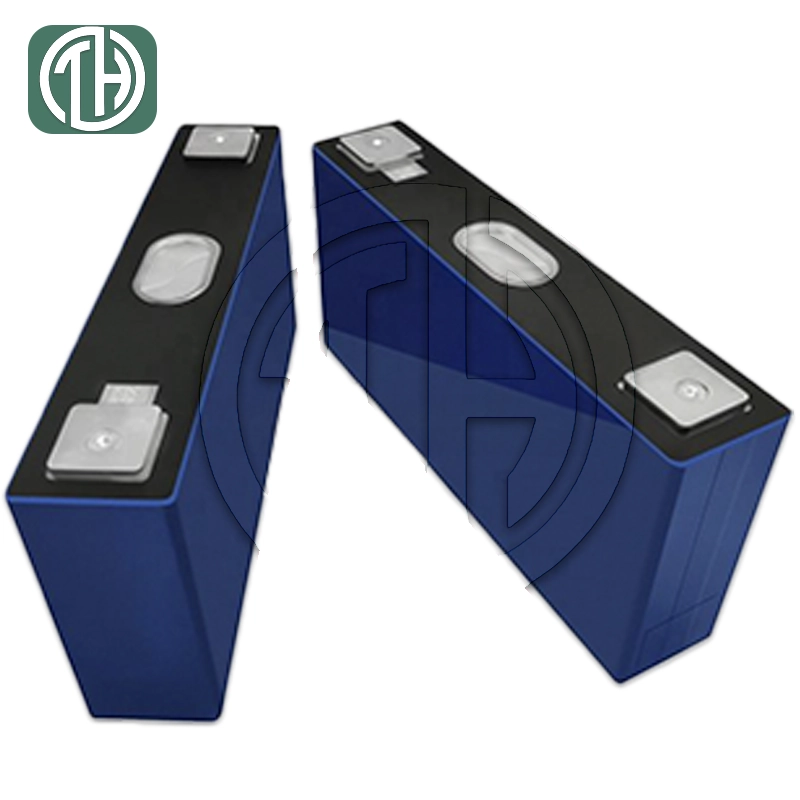

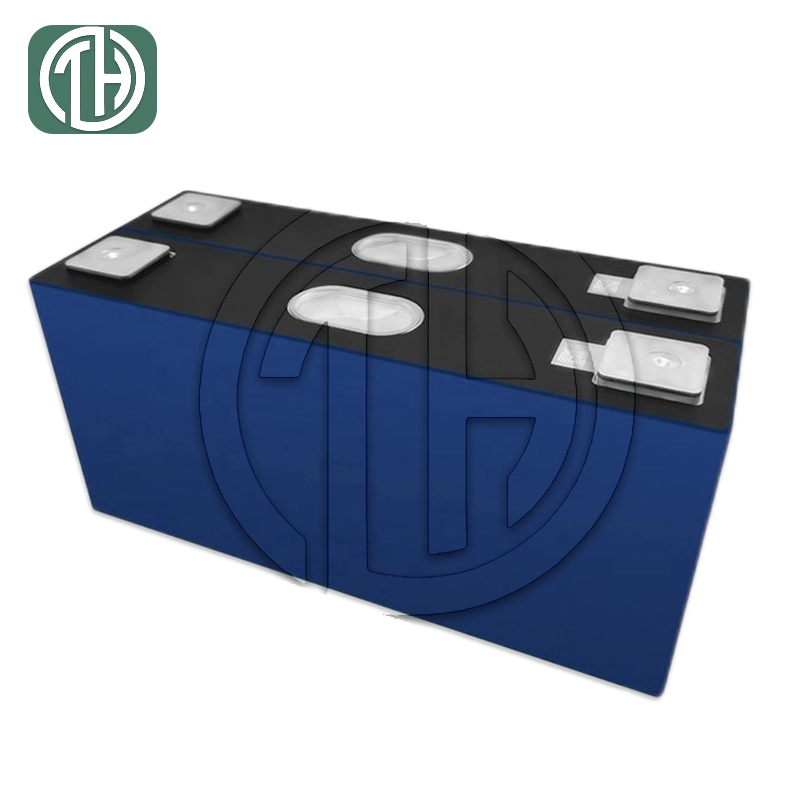

156Ah NMC prismatic lithium battery cell for EV and automotive module/pack integration.
Images are for reference only. Actual product markings may vary.
Due to its unique properties, our NMC battery cell is widely used in fields requiring high energy density and strong power output:
Delivers the high energy density for maximum flight endurance and the high C-rate power for demanding drone payloads.
Our cells meet both BEV demands for maximum range (high energy density) and HEV needs for instant power and regeneration (high C-rate).
Meets the fast charge and discharge needs of buses for rapid energy replenishment.
Powered by superior energy density, our cells deliver greater power and extended range for high-performance electric yachts and hydrofoils.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
