Compact NMC prismatic battery cell with high energy density, designed for PHEV and automotive systems.
Delivers strong and stable power output to meet dynamic load requirements in hybrid vehicles.
NMC chemistry with robust cell design supports reliable and safe operation under vehicle conditions.
Good cell consistency and low resistance enable efficient module and pack assembly.

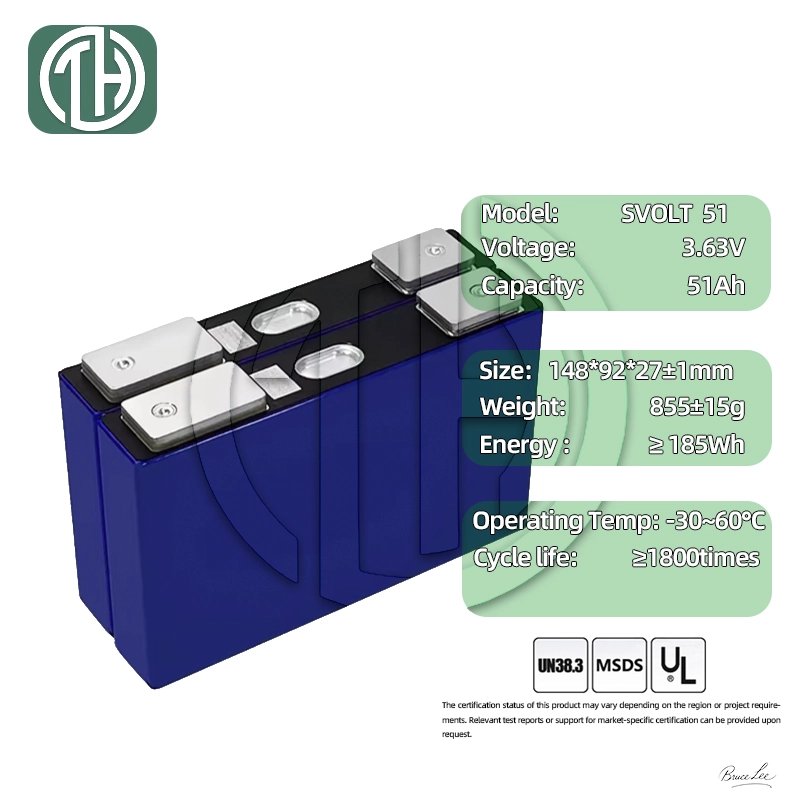

| Item | Parameter | Remarks |
|---|---|---|
| Rated Capacity | 51 Ah | Standard Discharge |
| Nominal Voltage | 3.6–3.7 V | NMC Typical |
| Rated Energy | ≈185 Wh | Nominal Condition |
| Cell Weight | ≈0.85 kg | Typical |
| Mass Energy Density | ≥210 Wh/kg | Typical Value |

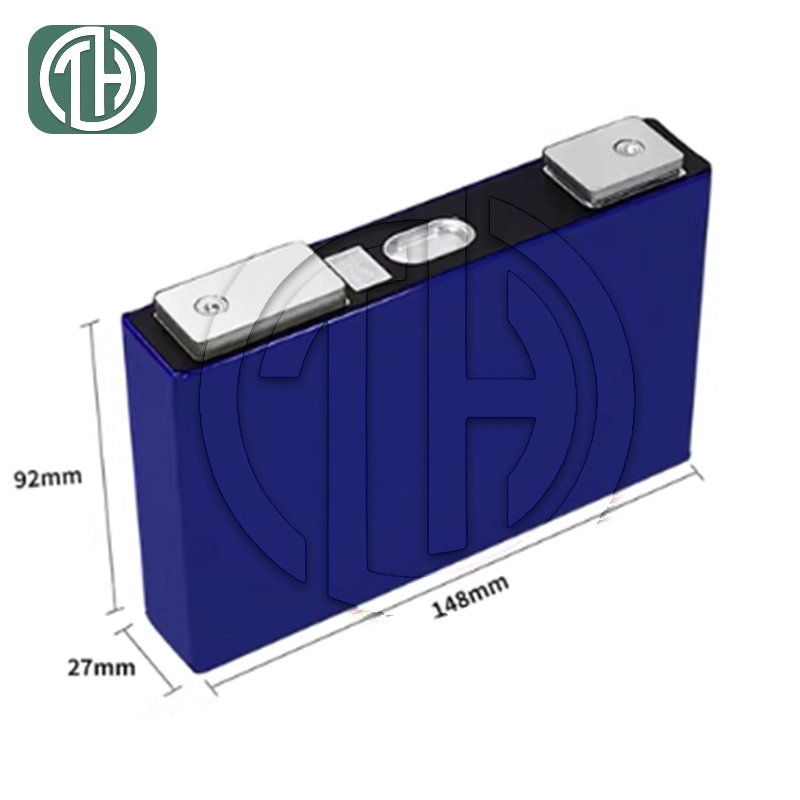

| Cell Dimensions | ≈148 × 27 × 91 mm | Prismatic Cell (L×W×H) |
| Internal Resistance | Low | Typical Automotive Cell |
| Charging Temperature | -20~55°C | / |
| Discharging Temperature | -30~55°C | / |
| Storage Temperature | -20~45°C | / |
| Voltage Range | 2.8~4.2 V | Standard Operating Window |
Note: Specifications are based on public reference data and typical test conditions. Actual performance may vary depending on application and operating parameters. Please refer to supplier-confirmed documentation for module or pack design.

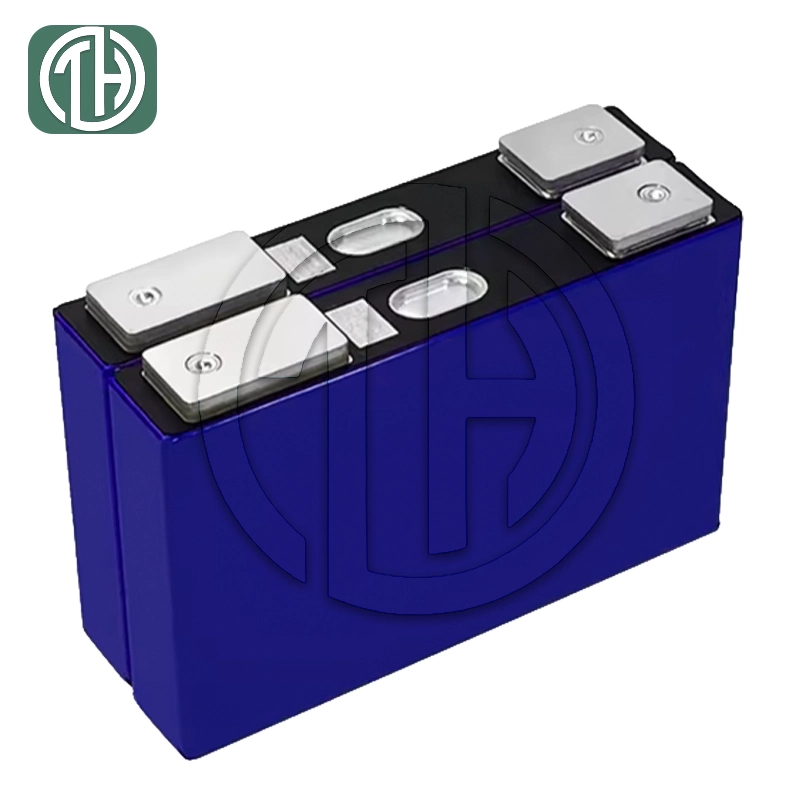

51Ah NMC prismatic lithium battery cell designed for PHEV and automotive module and pack integration.
Images are for reference only. Actual product markings may vary.
Due to its unique properties, our NMC battery cell is widely used in fields requiring high energy density and strong power output:
Delivers the high energy density for maximum flight endurance and the high C-rate power for demanding drone payloads.
Our cells meet both BEV demands for maximum range (high energy density) and HEV needs for instant power and regeneration (high C-rate).
Meets the fast charge and discharge needs of buses for rapid energy replenishment.
Powered by superior energy density, our cells deliver greater power and extended range for high-performance electric yachts and hydrofoils.
Our products undergo strict testing and comply with multiple international standards to ensure quality and safety.
*Certification status may vary depending on region or project requirements. Relevant test reports or assistance for market-specific certification can be provided upon request.
