Battery modules are intermediate components made by assembling multiple individual cells in a specific arrangement. They form the core link between single battery cells and the complete battery system. A module not only provides mechanical support and electrical connections but also integrates thermal management and monitoring functions, making it a critical part of any battery system.
The design of a battery module is primarily influenced by two factors: the type of battery cell used and the physical dimensions of the module.
1. Cell Type Determines Performance Direction
Different cell chemistries offer different trade-offs in terms of energy density, safety, lifespan, cost, and application suitability.
● NMC (Nickel Manganese Cobalt) Cells
NMC cells provide high energy density and good power output, making them suitable for applications that require lightweight and compact energy sources, such as passenger electric vehicles and power tools. However, they require careful thermal management due to lower thermal stability.
● LFP (Lithium Iron Phosphate) Cells
LFP cells are known for excellent thermal stability, long cycle life, and high safety. Although their energy density is lower than NMC, they are widely used in electric buses, commercial vehicles, and energy storage systems.
● Sodium-Ion Cells
A newer technology, sodium-ion batteries use more abundant and cost-effective sodium instead of lithium. They offer good low-temperature performance and are emerging as a promising option for stationary energy storage systems. Commercialization is still in early stages.
● LTO (Lithium Titanate Oxide) Cells
LTO cells stand out for their extremely long cycle life (up to tens of thousands of cycles) and fast charge-discharge capability. However, they have lower energy density and higher cost. Commonly used in urban buses, rail transport, and other high-frequency charge/discharge scenarios.
2. Module Size Affects Integration Strategy
Besides cell chemistry, the physical size and structure of the module significantly affect system integration, thermal performance, and installation flexibility.

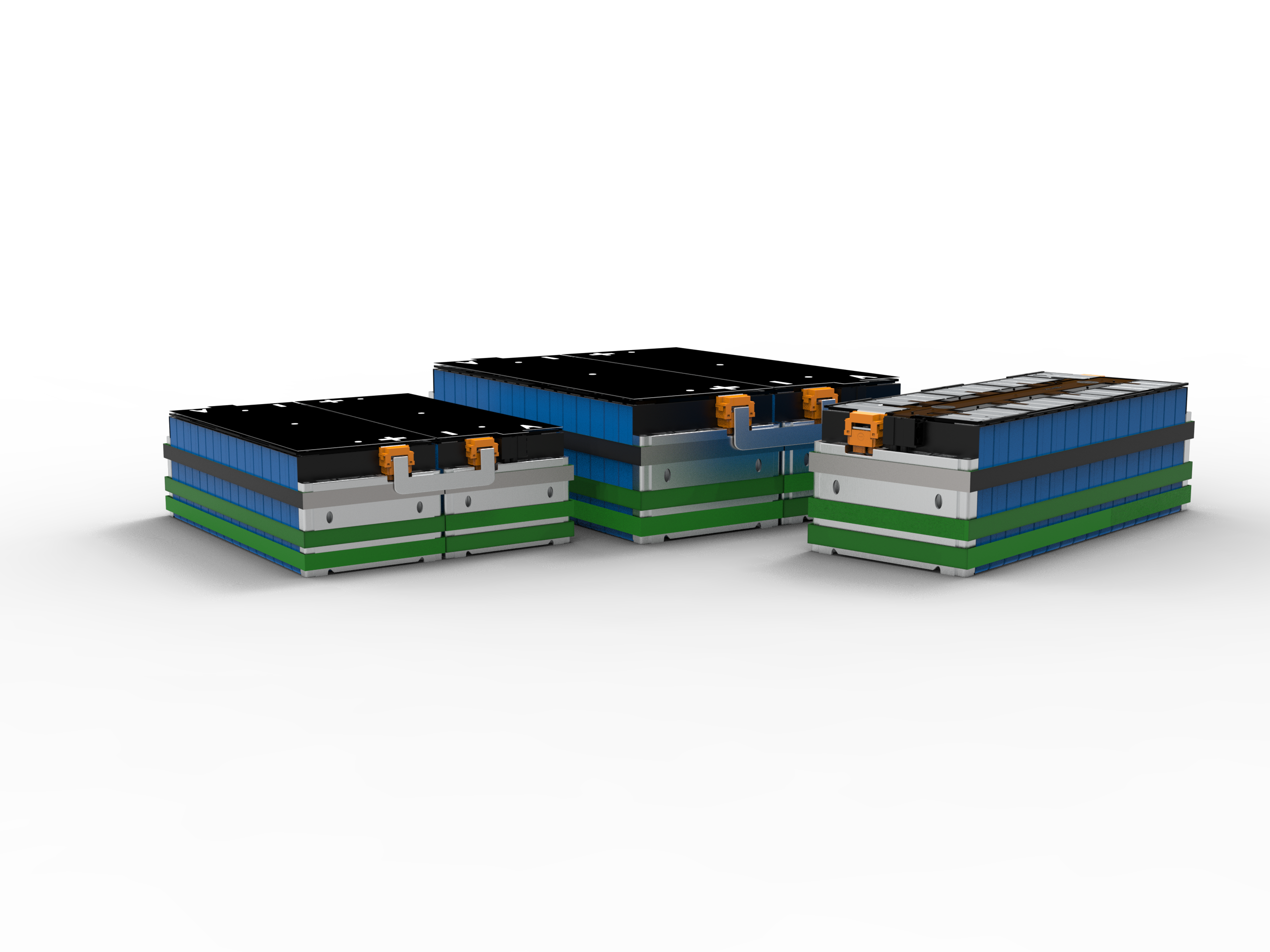

● VDA 355 Modules
VDA is a European automotive standard. A VDA355 module refers to a height of 355mm, offering good compatibility with various electric vehicle platforms.
● MEB 590 Modules
Developed for the Volkswagen MEB platform, these modules are around 590mm in length and are optimized for thermal performance and space utilization in modern EV architectures.
● Custom-Size Modules
Many applications, especially in energy storage and industrial equipment, require custom module sizes. In general, modules are designed with a maximum length and width of 1000mm (1 meter) to ensure compatibility with most system enclosures.
3. More Than Just a Collection of Cells

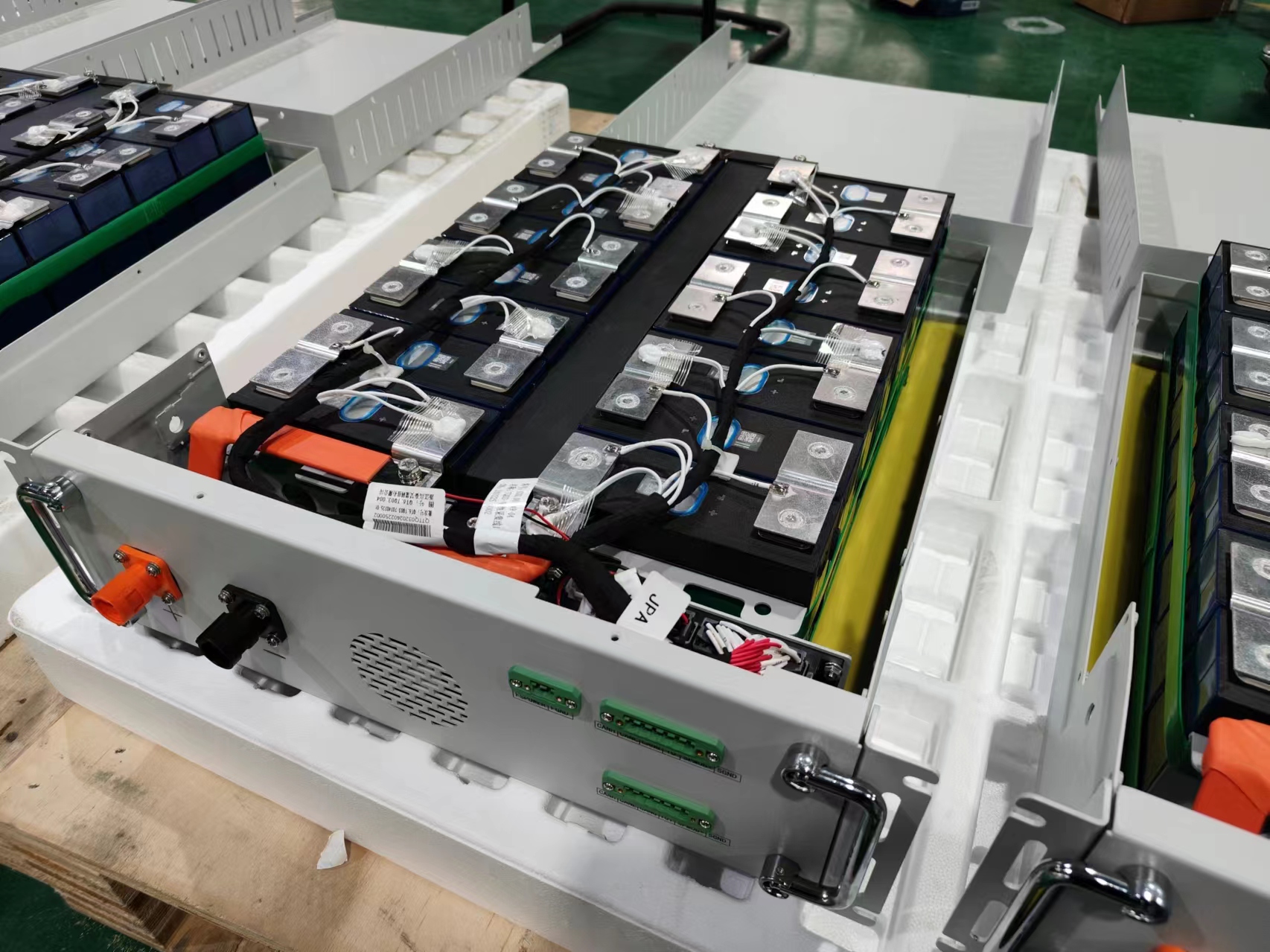

A battery module involves much more than simply bundling cells together. Key integrated components include:
-
Electrical connections – busbars, terminals, and interconnects
-
Thermal management – air or liquid cooling systems
-
Monitoring and protection – sensors and connections to the BMS
-
Structural design – casing, insulation, shock absorption, etc.
The combination of different chemistries and structures leads to variations in module performance, safety, and cost. Choosing and designing the right module is crucial for the reliability and efficiency of the entire battery system.
4. Example Applications by Cell Type
| Cell Type | Typical Module Size | Common Applications |
|---|---|---|
| NMC | VDA355, MEB590 | Passenger EVs, battery packs, tools |
| LFP | Custom, MEB590 | Buses, commercial EVs, ESS |
| Sodium-Ion | Small/medium custom | Distributed storage, grid applications |
| LTO | Compact high-rate | Buses, trains, fast-charging stations |
While these groupings are typical, ongoing innovation is driving new combinations and more flexible deployments across different sectors.
5. Future Trends
As clean energy technologies evolve, battery modules are also seeing several key trends:
-
Standardization and modularity
-
Standards like VDA and MEB simplify production and integration.
-
-
Lightweight design and energy density
-
Higher energy in smaller, lighter modules remains a primary goal.
-
-
Integrated thermal and safety systems
-
Better cooling, sensing, and battery management are becoming standard.
-
-
New cell chemistries
-
Sodium-ion, solid-state, and silicon-based batteries are reshaping design approaches.
-
6. Conclusion
Battery modules serve as the essential bridge between individual cells and complete energy systems. The choice of cell chemistry determines the core performance characteristics, while the physical structure influences how the module fits into the larger system.
With thoughtful design, battery modules can balance energy density, safety, cost, and lifespan to meet diverse application needs. As materials and manufacturing techniques continue to evolve, modules are expected to become smarter, more adaptable, and more efficient — powering the future of electric mobility and renewable energy.
